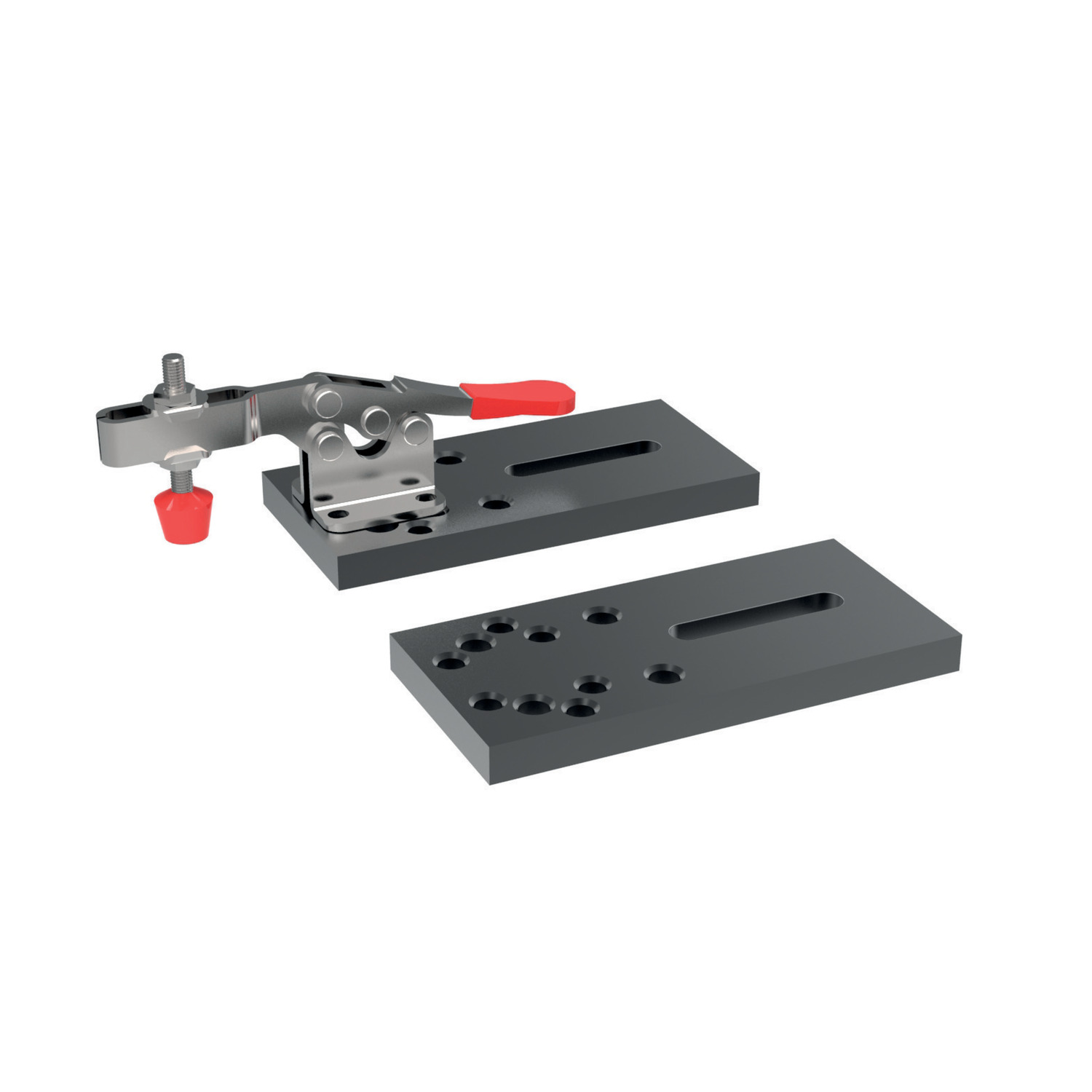

19322 CMM Fixturing Toggle Clamp

with mounting plate, material: Steel

Download product datasheet

Alternative products you may wish to consider

CMM Soft Touch Clamps
M 8 threads

CMM Fixturing Toggle Clamp
with mounting plate

CMM Fixturing Stops
Steel

CMM Fixturing Stops
M 8 threads

CMM Fixturing Stand offs
M 8 threads

CMM Fixturing Stand off
with pin

CMM Fixturing Positioning Cones
M 8 threads

CMM Fixturing Magnetic Stand off
M 8 threads

CMM Fixturing Magnetic Rest Buttons
M 8 threads

CMM Fixturing Magnetic Stand off
with pin, for M 8 threads

CMM Fixturing Magnetic Vee Stand-off
for M 8 threads

CMM Fixturing Magnetic Vee Blocks

CMM Fixturing Adjustable Stand-off

CMM Fixturing Screws Jacks
M 8 threads

CMM Fixturing Adjustable Positioners
M 8 threads

CMM Swivel Joint
M 8 threads

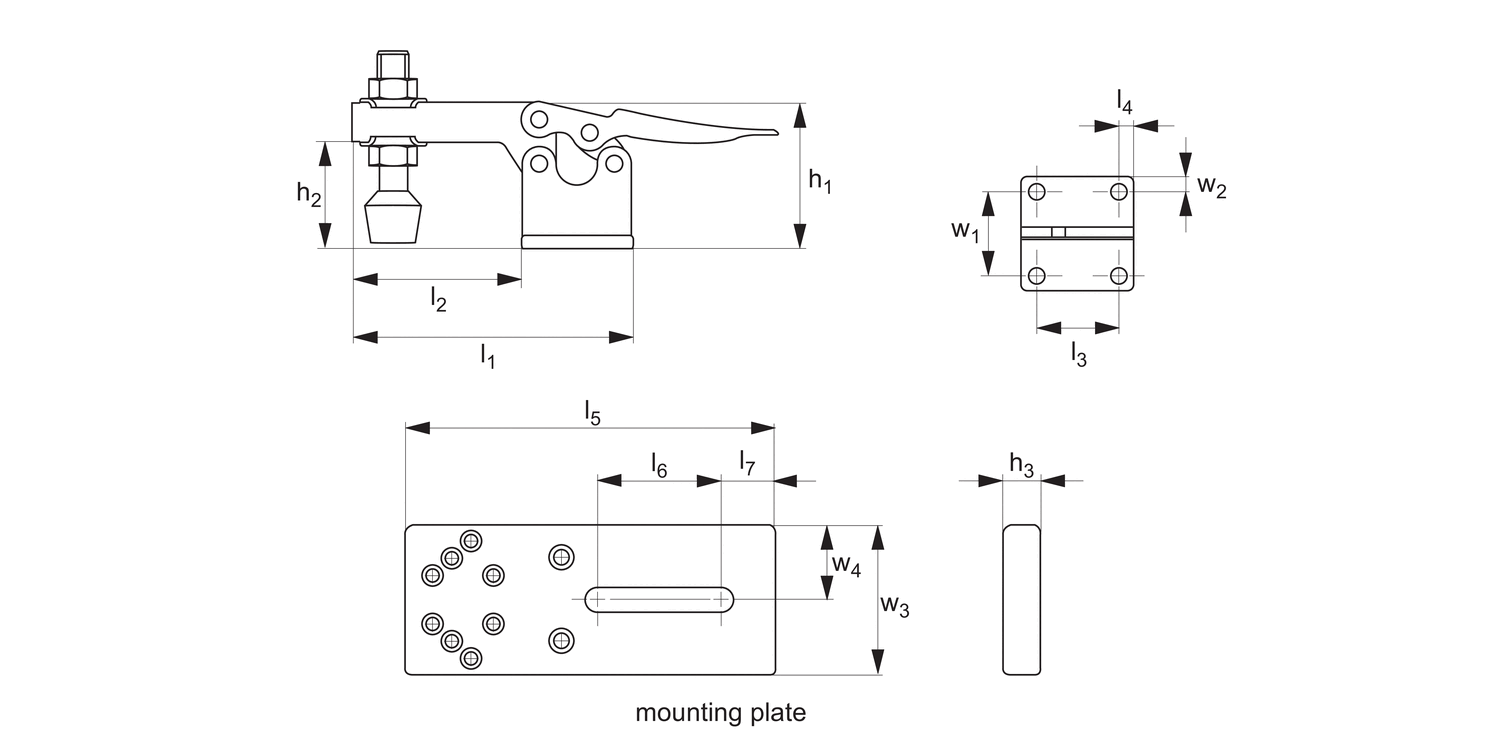

CMM Fixturing Toggle Clamp Set 19,05 - 7,93 - 67,46 - 15,80

19322.W0075

h₁

19.05

h₂

7.9

h₃

6.3

l₁

67.5

l₂

17.46

l₃

15.9

l₄

7.9

l₅

80

l₆

25

l₇

13

w₁

15.9

w₂

3.97

w₃

38

w₄

19

Weight g

591

£ 100.66 per unit (click for quantity discounts)

CMM Fixturing Toggle Clamp Set 38,10 - 25,40 - 138,11 - 26,98

19322.W0150

h₁

38.1

h₂

25.4

h₃

6.3

l₁

138.1

l₂

57.1

l₃

26.9

l₄

4.7

l₅

80

l₆

25

l₇

13

w₁

22.2

w₂

6.7

w₃

38

w₄

19

Weight g

1000

£ 110.69 per unit (click for quantity discounts)

CMM Fixturing Toggle Clamp Set 19,05 - 7,93 - 67,46 - 15,80

19322.W0075

h₁

19.05

h₂

7.9

h₃

6.3

l₁

67.5

l₂

17.46

l₃

15.9

l₄

7.9

l₅

80

l₆

25

l₇

13

w₁

15.9

w₂

3.97

w₃

38

w₄

19

Weight g

591

£ 100.66 per unit (click for quantity discounts)

CMM Fixturing Toggle Clamp Set 38,10 - 25,40 - 138,11 - 26,98

19322.W0150

h₁

38.1

h₂

25.4

h₃

6.3

l₁

138.1

l₂

57.1

l₃

26.9

l₄

4.7

l₅

80

l₆

25

l₇

13

w₁

22.2

w₂

6.7

w₃

38

w₄

19

Weight g

1000

£ 110.69 per unit (click for quantity discounts)



Select all

h₁

h₂

h₃

l₁

l₂

l₃

l₄

l₅

l₆

l₇

w₁

w₂

w₃

w₄

Weight g

Price & Availability	Article	h1	h2	h3	l1	l2	l3	l4	l5	l6	l7	w1	w2	w3	w4	Weight g
	19322.W0075	19.05	7.9	6.3	67.5	17.46	15.9	7.9	80	25	13	15.9	3.97	38	19	591
£ 100.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 100.66 0% 5-9 £ 95.63 5% 10-19 £ 90.59 10% 20-49 £ 85.56 15% 50+ £ 75.50 25% h1 19.05 h2 7.9 h3 6.3 l1 67.5 l2 17.46 l3 15.9 l4 7.9 l5 80 l6 25 l7 13 w1 15.9 w2 3.97 w3 38 w4 19 Weight g 591 more info »
	19322.W0150	38.1	25.4	6.3	138.1	57.1	26.9	4.7	80	25	13	22.2	6.7	38	19	1000
£ 110.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 110.69 0% 5-9 £ 105.16 5% 10-19 £ 99.62 10% 20-49 £ 94.09 15% 50+ £ 83.02 25% h1 38.1 h2 25.4 h3 6.3 l1 138.1 l2 57.1 l3 26.9 l4 4.7 l5 80 l6 25 l7 13 w1 22.2 w2 6.7 w3 38 w4 19 Weight g 1000 more info »
