CMM Soft Touch Clamps
M 8 threads

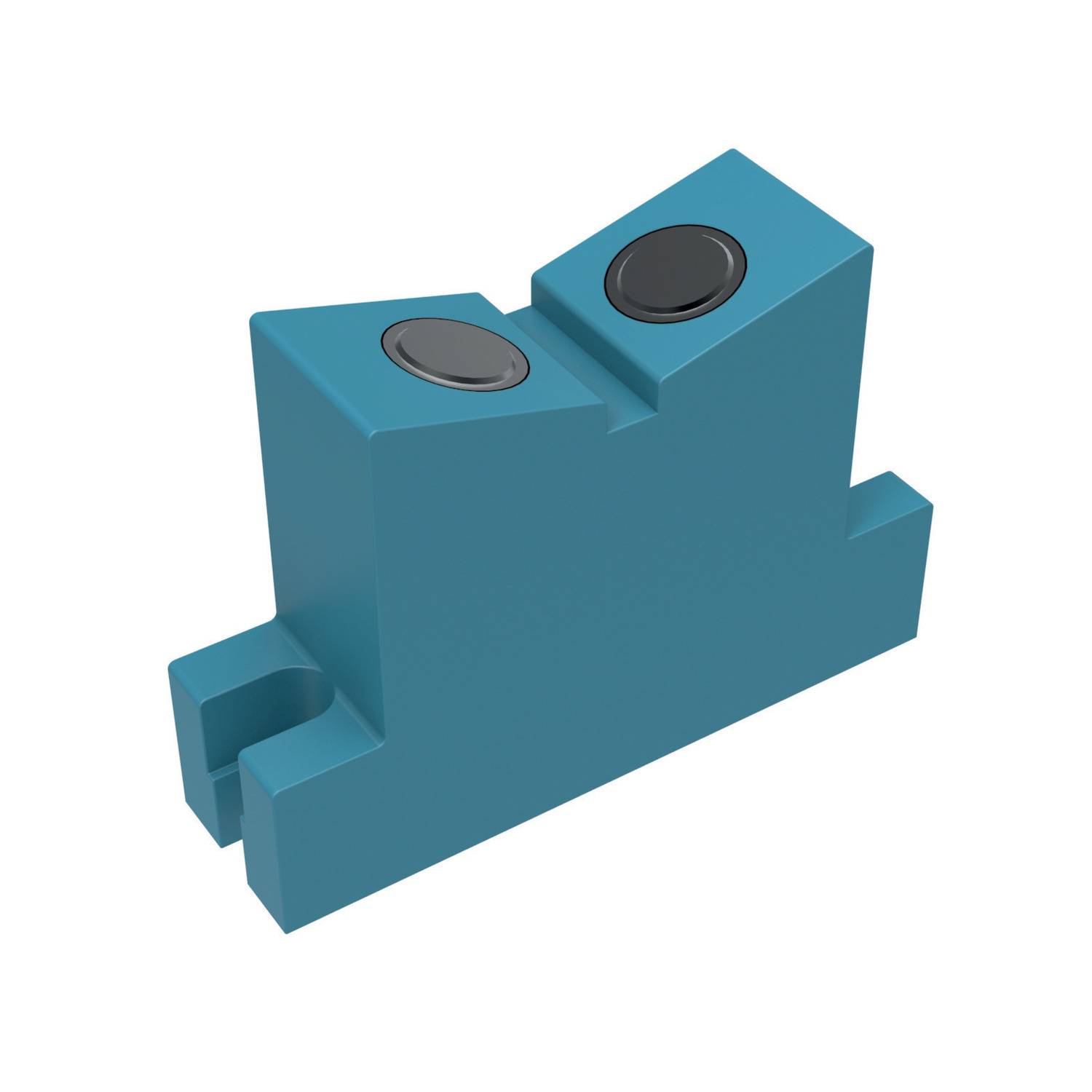

19339 CMM Fixturing Magnetic Vee Blocks
material: Aluminium
Alternative products you may wish to consider
h1
42
h2
22
l1
25
w1
63.4
w2
14
w3
92
For holding dia.
50-160
Weight
g
454
£ 239.39 per unit (click for quantity discounts)
h1
h2
l1
w1
w2
w3
For holding dia.
Weight
g

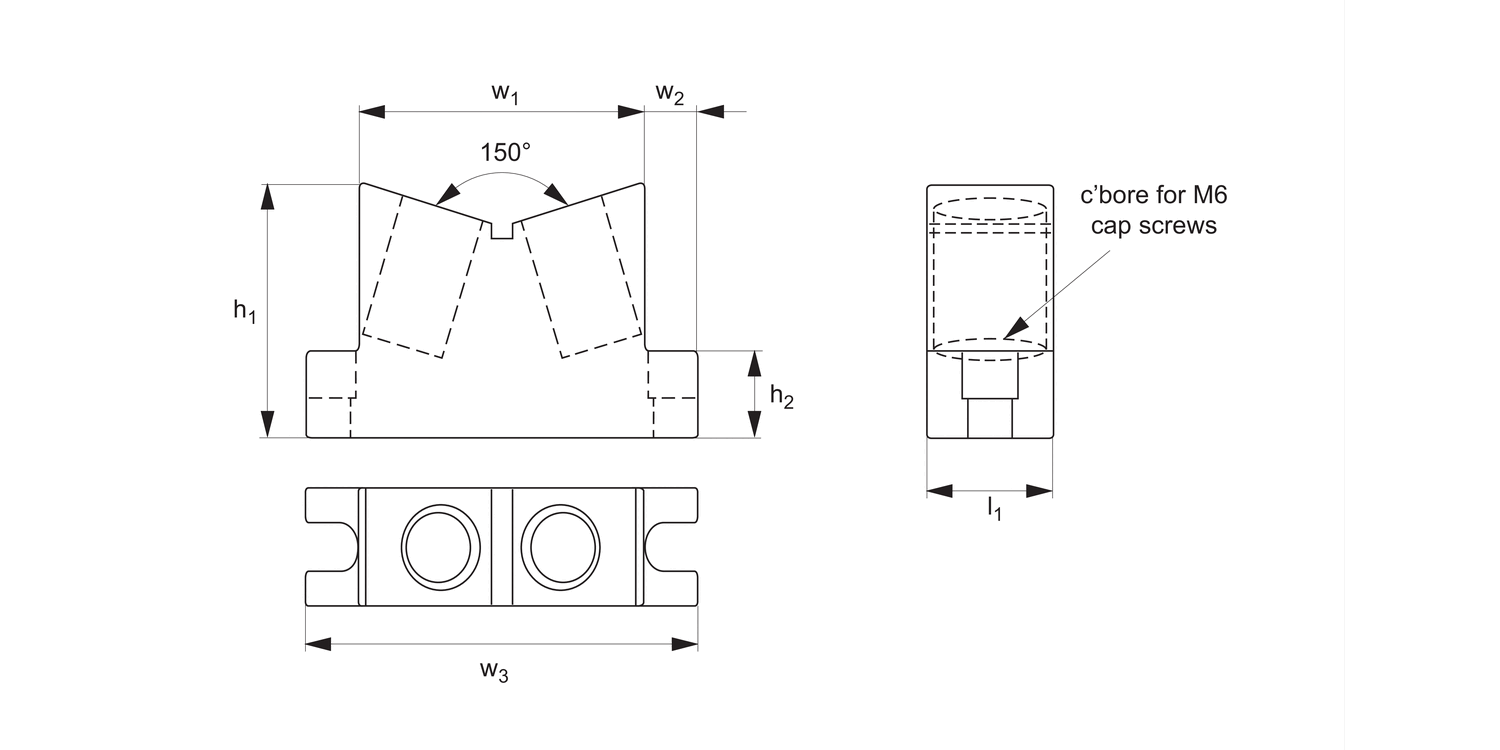

| Price & Availability | Article | h1 | h2 | l1 | w1 | w2 | w3 | For holding dia. | Weight g | ||||||||||||||||||
| 19339.W0050 | 42 | 22 | 25 | 63.4 | 14 | 92 | 50-160 | 454 | |||||||||||||||||||
£ 239.39 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h1 42 h2 22 l1 25 w1 63.4 w2 14 w3 92 For holding dia. 50-160 Weight
g 454 | |||||||||||||||||||||||||||
Technical & Application
Important Notes
For holding large cylindrical steel or iron parts. Includes two cap screws to fasten to plate.
