Fixturing Components for CMM Clamping
HomeProductsWork HoldingFixing Elements, Inserts & GaugesGauging & InspectionFixturing Components for CMM Clamping19324

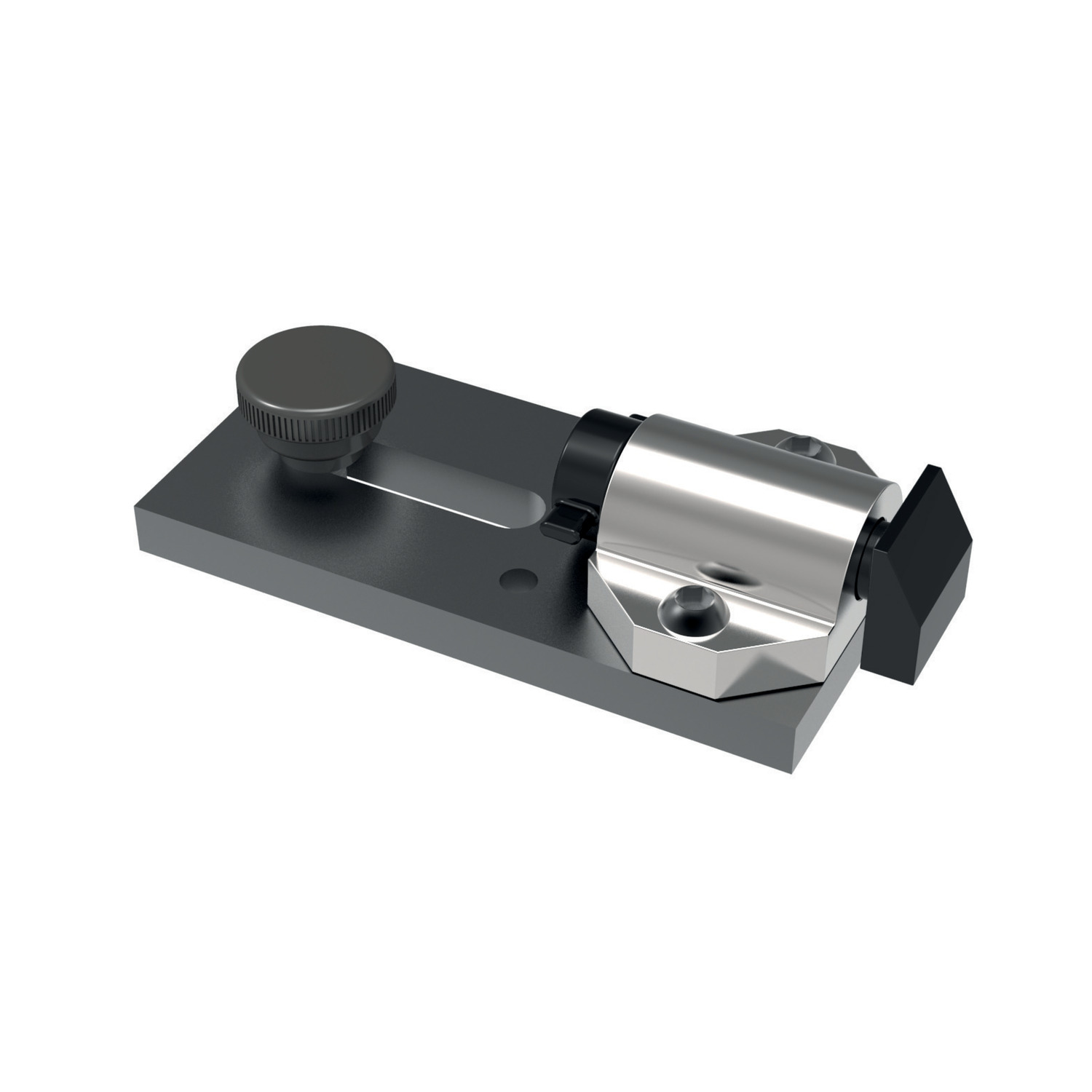

19324 CMM Fixturing Stops

with mounting plate, material: Steel
19324 CMM Fixturing Stops
19324 CMM Fixturing Stops
Download product datasheet
Download FREE CAD

Alternative products you may wish to consider

19320 - CMM Soft Touch Clamps
CMM Soft Touch Clamps
M 8 threads
19322 - CMM Fixturing Toggle Clamp
CMM Fixturing Toggle Clamp
with mounting plate
19324 - CMM Fixturing Stops
CMM Fixturing Stops
Steel
19326 - CMM Fixturing Adjustable Stops
CMM Fixturing Stops
M 8 threads
19330 - CMM Fixturing Stand offs
CMM Fixturing Stand offs
M 8 threads
19331 - CMM Fixturing Stand off
CMM Fixturing Stand off
with pin
19332 - CMM Fixturing Positioning Cones
CMM Fixturing Positioning Cones
M 8 threads
19333 - CMM Fixturing Magnetic Stand off
CMM Fixturing Magnetic Stand off
M 8 threads
19336 - CMM Fixturing Magnetic Rest Buttons
CMM Fixturing Magnetic Rest Buttons
M 8 threads
19337 - CMM Fixturing Magnetic Stand off
CMM Fixturing Magnetic Stand off
with pin, for M 8 threads
19338 - CMM Fixturing Magnetic Vee Stand-off
CMM Fixturing Magnetic Vee Stand-off
for M 8 threads
19339 - CMM Fixturing Magnetic Vee Blocks
CMM Fixturing Magnetic Vee Blocks
19350 - CMM Fixturing Adjustable Stand-off
CMM Fixturing Adjustable Stand-off
19352 - CMM Fixturing Screws Jacks
CMM Fixturing Screws Jacks
M 8 threads
19354 - CMM Fixturing Adjustable Positioners
CMM Fixturing Adjustable Positioners
M 8 threads
19358 - CMM Swivel Joint
CMM Swivel Joint
M 8 threads
19324.W0025 CMM Fixturing Spring Stops 6,35 - 15875 - 7937 - 15875
CMM Fixturing Spring Stops 6,35 - 15875 - 7937 - 15875

19324.W0025

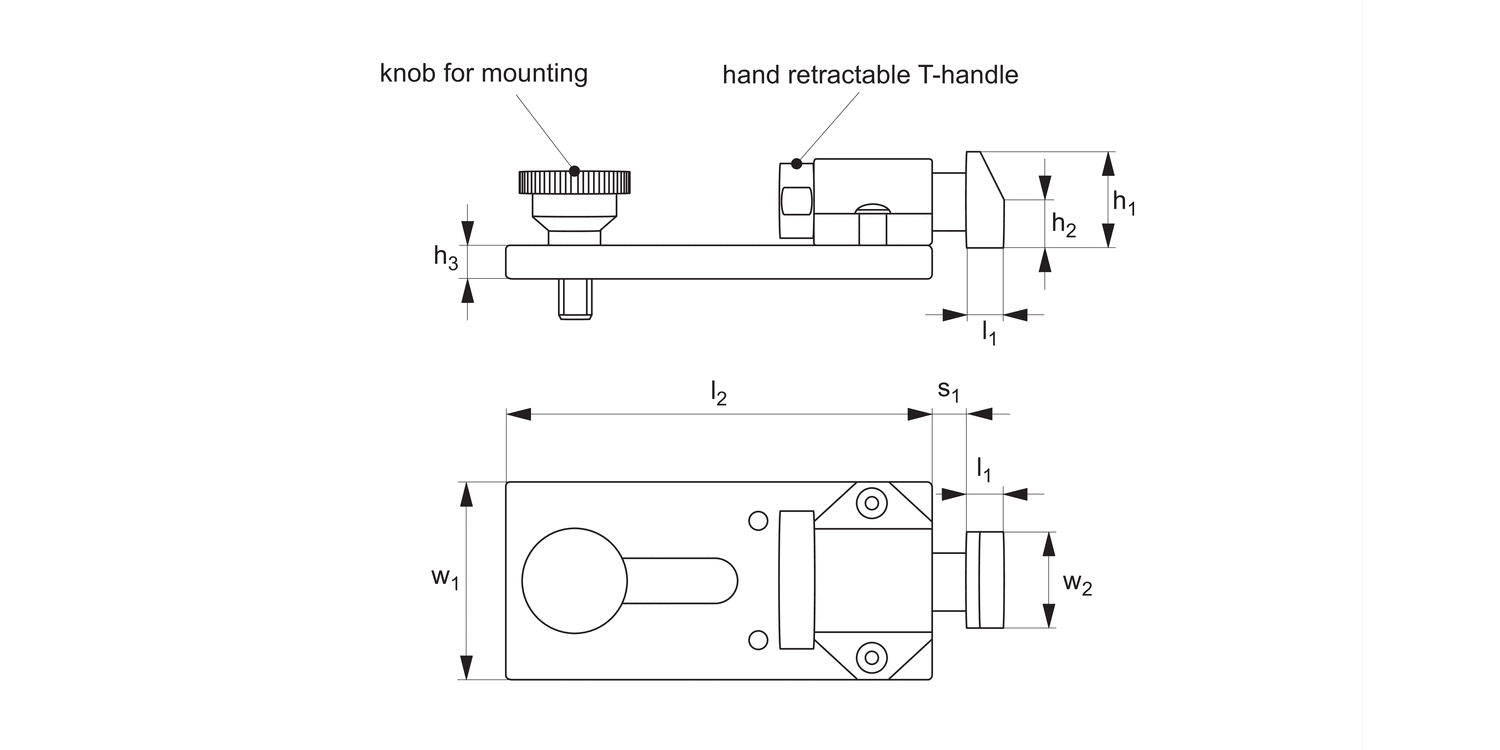

Stroke s1
4.8
h1
15.9
h2
7.9
h3
6.35
l1
6.4
l2
80
w1
38
w2
15.9
Weight g
682
£ 130.75 per unit (click for quantity discounts)
19324.W0025 CMM Fixturing Spring Stops 6,35 - 15875 - 7937 - 15875
CMM Fixturing Spring Stops 6,35 - 15875 - 7937 - 15875

19324.W0025

Stroke s1
4.8
h1
15.9
h2
7.9
h3
6.35
l1
6.4
l2
80
w1
38
w2
15.9
Weight g
682
£ 130.75 per unit (click for quantity discounts)

Stroke s1
h1
h2
h3
l1
l2
w1
w2
Weight g
Price & AvailabilityArticleStroke s1h1h2h3l1l2w1w2Weight g
19324.W00254.815.97.96.356.4803815.9682

Technical & Application

Material

Steel.

Important Notes

Provides horizontal clamping. T-handle allows for quick part changeover. Sliding mounting base for easy adjustment and positioning.

Product Datasheets

19324 CMM Fixturing StopsJune 24, 2025, 3:50 PM / 787.00 kB
Fixturing Components for CMM ClampingJune 24, 2025, 3:30 PM / 1.03 MB
Gauging & InspectionJune 24, 2025, 3:31 PM / 1.73 MB
Fixing Elements, Inserts & GaugesJune 24, 2025, 3:32 PM / 9.54 MB
Work HoldingJune 24, 2025, 3:33 PM / 61.81 MB

CAD files

19324 AcisApril 17, 2024, 9:07 AM / 236.45 kB
19324 IGESApril 17, 2024, 9:07 AM / 458.65 kB
19324 ParasolidApril 17, 2024, 9:07 AM / 249.60 kB
19324 ProEApril 17, 2024, 9:07 AM / 514.65 kB
19324 SolidWorksApril 17, 2024, 9:07 AM / 575.63 kB
19324 StepApril 17, 2024, 9:07 AM / 333.04 kB
