12180.1 Multi-Fixture Clamps and Stops

Name: 12180.W0135
Brand: WC
SKU: 12180.W0135
Price: 191.19 GBP
Availability: OutOfStock

with locating step, material: Steel

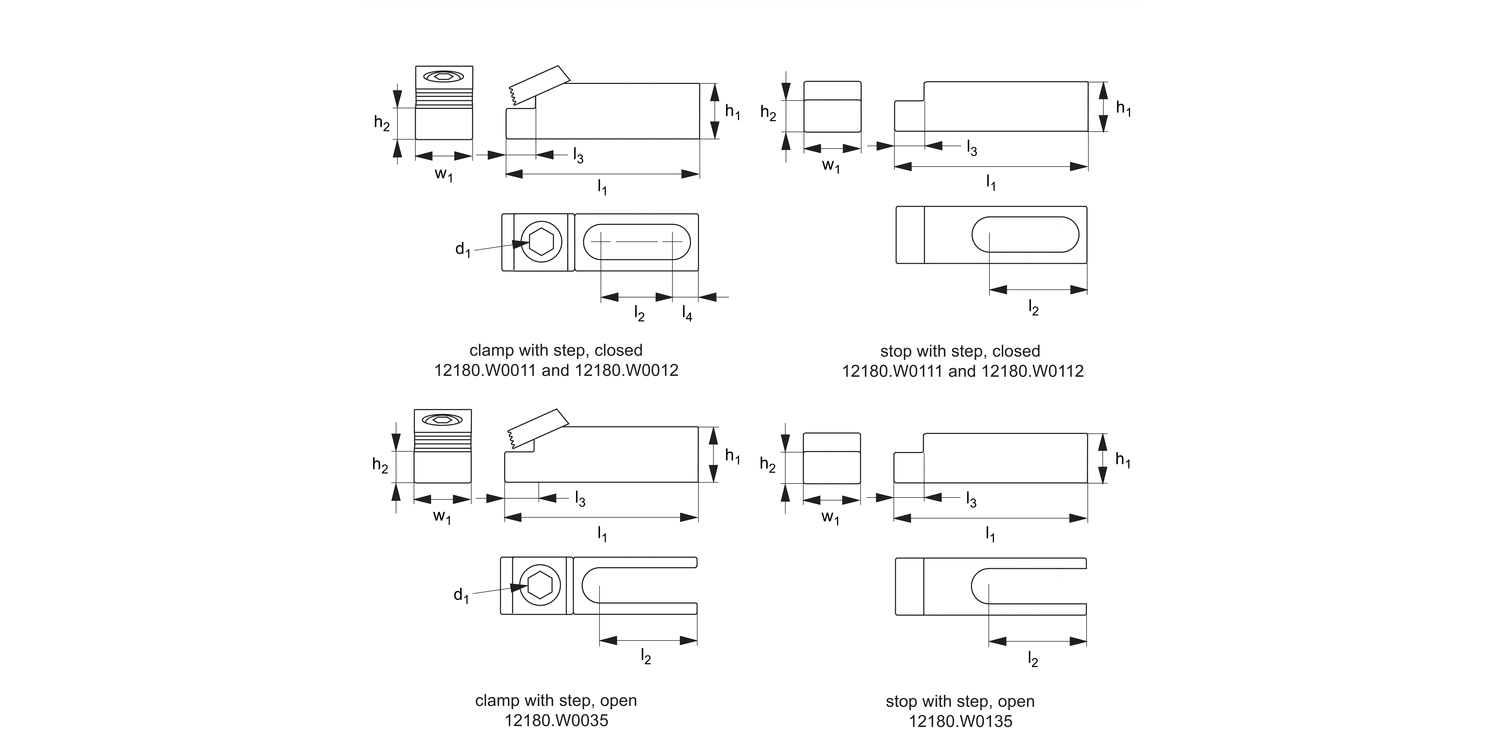

Article properties

Order No.

12180.W0135

Type

Stop - With Step

Slot type

Open

Mounting screw

M16

d₁ cam screw

l₁

107.0

l₂

46.2

l₃

9.4

l₄

h₁

50.8

h₂ +0.0|-0.013

35.0

w₁

38.1

Torque to max. Nm

Stroke

For use with

12180.W0035

Holding force kN

See full product selection

£ 191.19 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.95.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 191.19	0%
5-9	£ 181.63	5%
10-19	£ 172.07	10%
20-49	£ 162.51	15%
50+	£ 143.39	25%

Download product datasheet

Technical & Application

Material

Body: steel, hardened.
Clamp: brass.

Technical Notes

Enables flexible setups. For use in both threaded holes and in T-slots. Can be mounted vertically or horizontally.
Typically used as a clamp and stop pair - please order separately.

Product Datasheets

12180.1 Multi-Fixture Clamps and Stops24 June 2025, 15:51 / 272.58 kB

T-Slot Clamps24 June 2025, 15:30 / 1.17 MB

Low Profile Side Clamping24 June 2025, 15:31 / 7.84 MB

Manual Clamping & Height Setting24 June 2025, 15:32 / 31.08 MB

Work Holding24 June 2025, 15:33 / 61.81 MB
