20010 Coolant Nozzles - Jet Bolt - Compact

Name: 20010.W1120
Brand: WC
SKU: 20010.W1120
Price: 24.97 EUR
Availability: OutOfStock

max. 10 bar, material: Acetal

Article properties

Order No.

20010.W1120

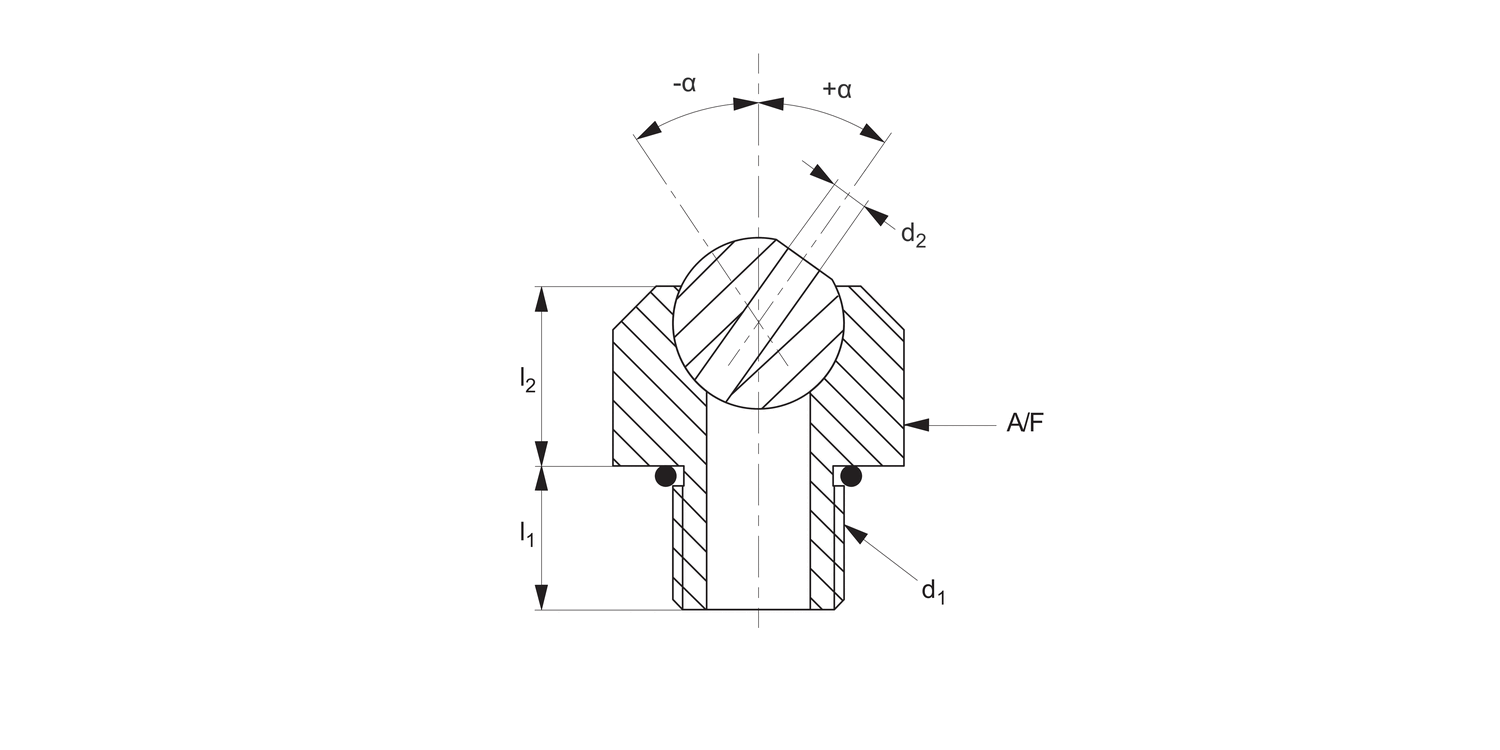

Thread

Metric Coarse

d₁

M12x1,75

d₂

4.0

Jet bore d₂

Plain

l₁

9.1

l₂

10.4

±35°

A/F

See full product selection

£ 24.97 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 24.97	0%
5-9	£ 23.72	5%
10-19	£ 22.47	10%
20-49	£ 21.22	15%
50+	£ 18.73	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Body: acetal.
Ball: stainless steel.

Technical Notes

Max. temperature 70°C.
Max. pressure 10 bar.
symbola/symbol is an angle of adjustment either side of centre line.
For extension tubes see part nos. 20090 and 20092.
For spray tips see part nos. 20080 and 20082.

Tips

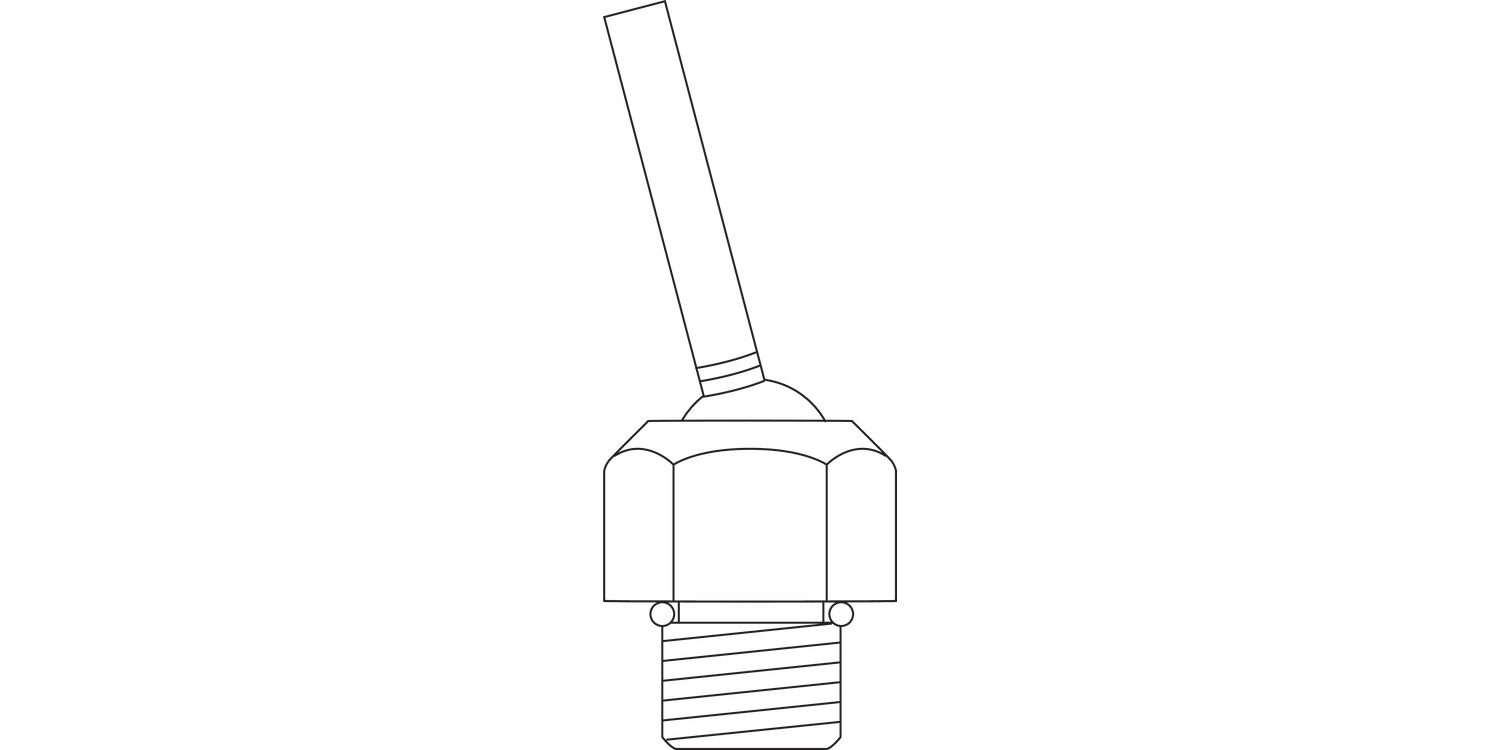

Screws into threaded coolant ports. Large adjustment angle.
Choose large orifice for maximum flow.
Choose smaller orifices when using multiple nozzles.
Choose tapped ends if nozzle will need to be plugged (set screw included).
