Coolant Nozzles
black eye

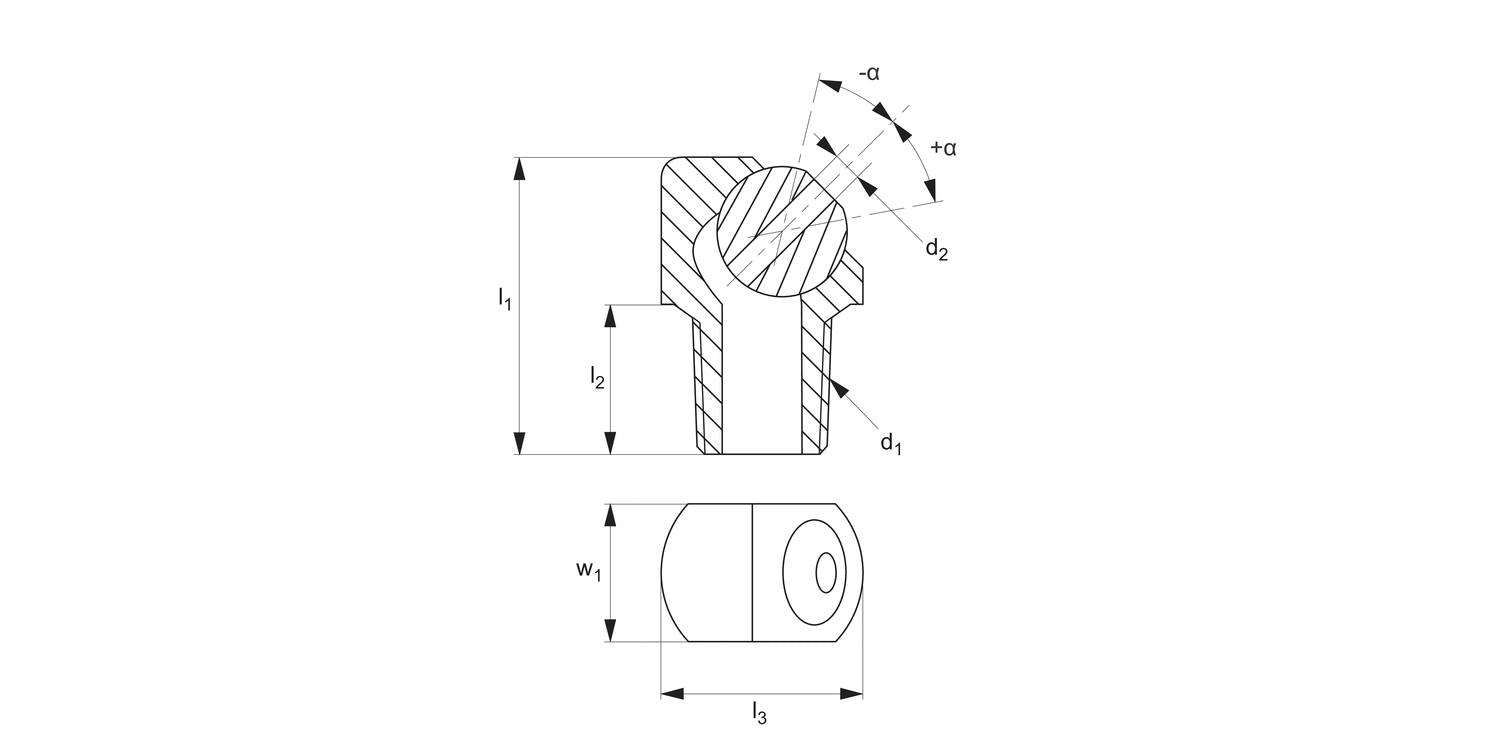

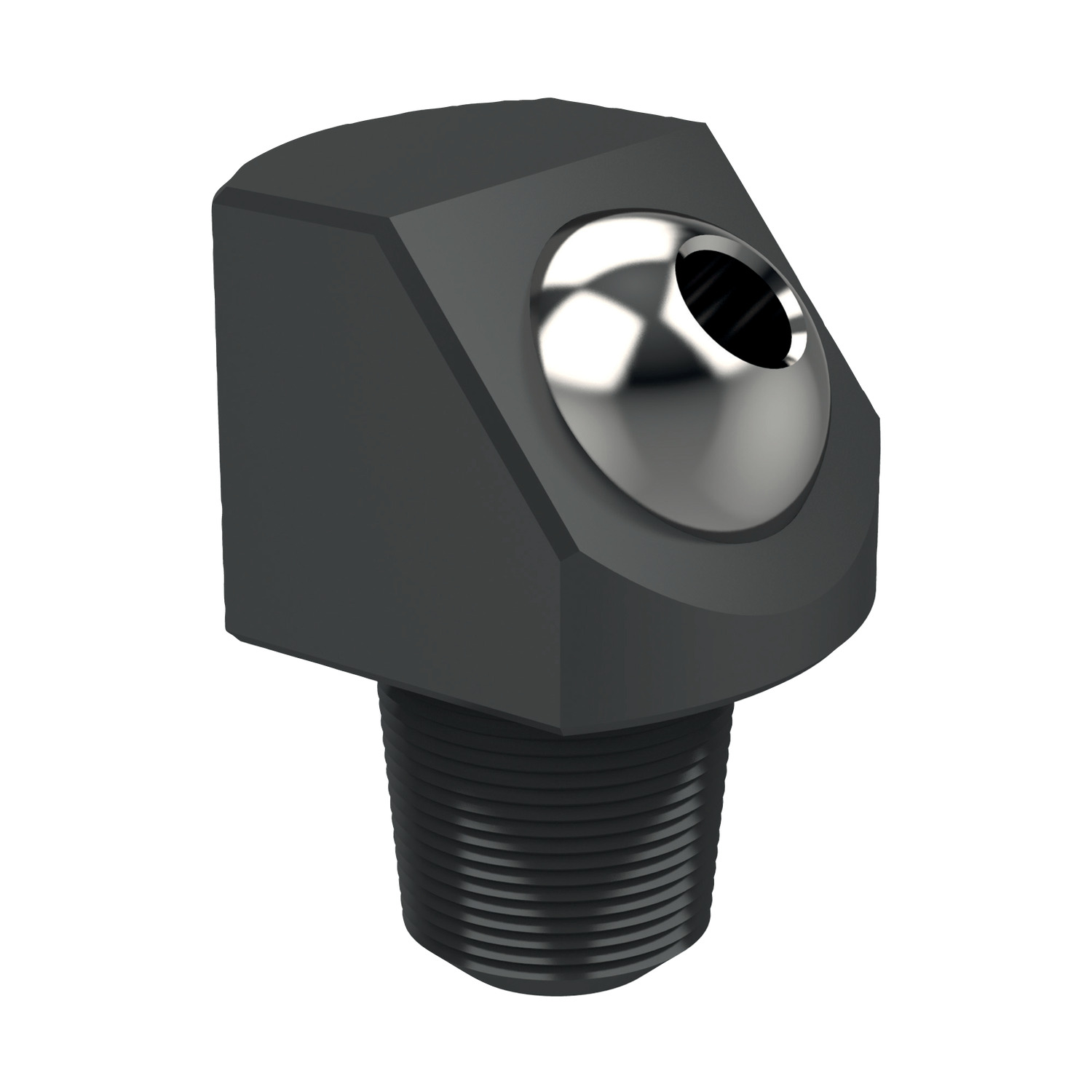

20016 Coolant Nozzles - Turret Jet
max. 10 bar, material: Acetal
Order No.
20016.W2060
d1
1/16" NPT/BSPT
d2
2.8
Jet bore d2
Plain
l1
17.5
l2
7.9
l3
12.7
w1
11.2
α
±35°
£ 19.93 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 19.93 | 0% |
| 5-9 | £ 18.93 | 5% |
| 10-19 | £ 17.94 | 10% |
| 20-49 | £ 16.94 | 15% |
| 50+ | £ 14.95 | 25% |
Technical & Application
Material
Body: acetal.
Ball: stainless steel.
Technical Notes
Max. temperature 70°C.
Max. pressure 10 bar.
symbola/symbol is an angle of adjustment either side of centre line.
For extension tubes see part nos. 20090 and 20092.
For spray tips see part nos. 20080 and 20082.
Tips
Converts any NPT or BSBT hole to a fully adjustable nozzle.
Easy adjustment.
Choose large orifice for maximum flow and smaller orifices when using multiple nozzles.
Choose tapped tube if the nozzles needs to be plugged (set screw included).
