20000 Coolant Nozzles - Black Eye

Name: 20000.W0140
Brand: WC
SKU: 20000.W0140
Price: 20.08 EUR
Availability: OutOfStock

max. 10 bar, material: Acetal

Article properties

Order No.

20000.W0140

d₁

d₂

4.0

Jet bore d₂

Plain

±35°

See full product selection

£ 20.08 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 20.08	0%
5-9	£ 19.08	5%
10-19	£ 18.07	10%
20-49	£ 17.07	15%
50+	£ 15.06	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Body: acetal.
Ball: stainless steel.

Technical Notes

Max. temperature 70°C.
Max. pressure 10 bar.
symbola/symbol is an angle of adjustment either side of centre line.
For extension tubes see part nos. 20090 and 20092.
For spray tips see part nos. 20080 and 20082.

Tips

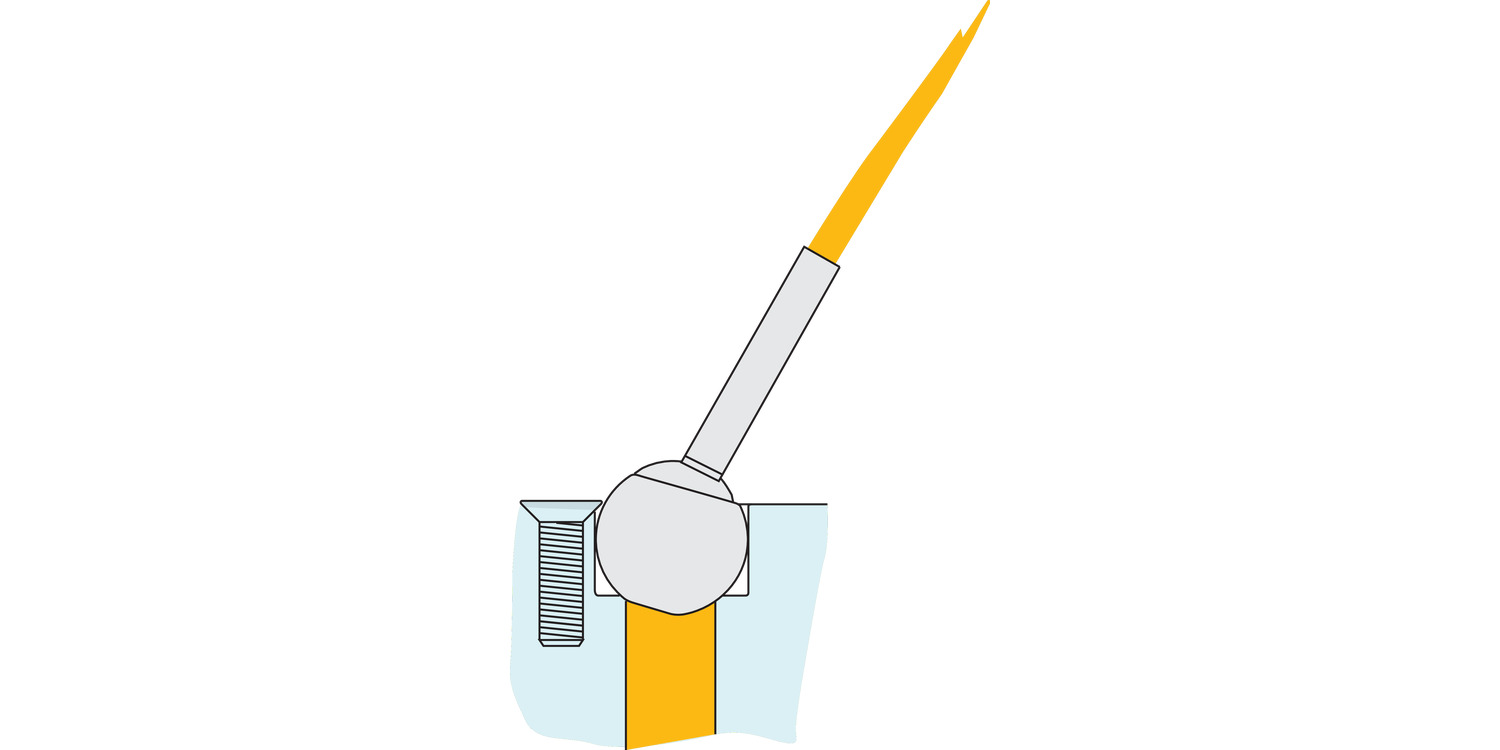

Easy to aim replacement for basic spherical coolant nozzles. Install, lock in place then aim the stainless steel ball with the tip of a hex key.
Choose tapped version if you need to use with extension tubes or if occasional plugging of unit is required (set screw included).
