Lid Stays
heavy duty - positive stop s/s
N0600 Lid Stays - Multi-Angled
heavy duty - stainless steel, material: Stainless steel
Order No.
N0600.AC0010
Opening angle
max.
°
90°
Type
Right
No. of stop positions
4
Stop release stroke r
15
a
350
b
230
c
120
d
352
Load
max.
kg
70
Weight
g
715
£ 118.98 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 118.98 | 0% |
| 10-19 | £ 107.08 | 10% |
| 20-49 | £ 101.13 | 15% |
| 50-99 | £ 95.18 | 20% |
| 100+ | £ 89.24 | 25% |
Technical & Application
Material
Stainless steel, AISI 304, satin finish.
Technical Notes

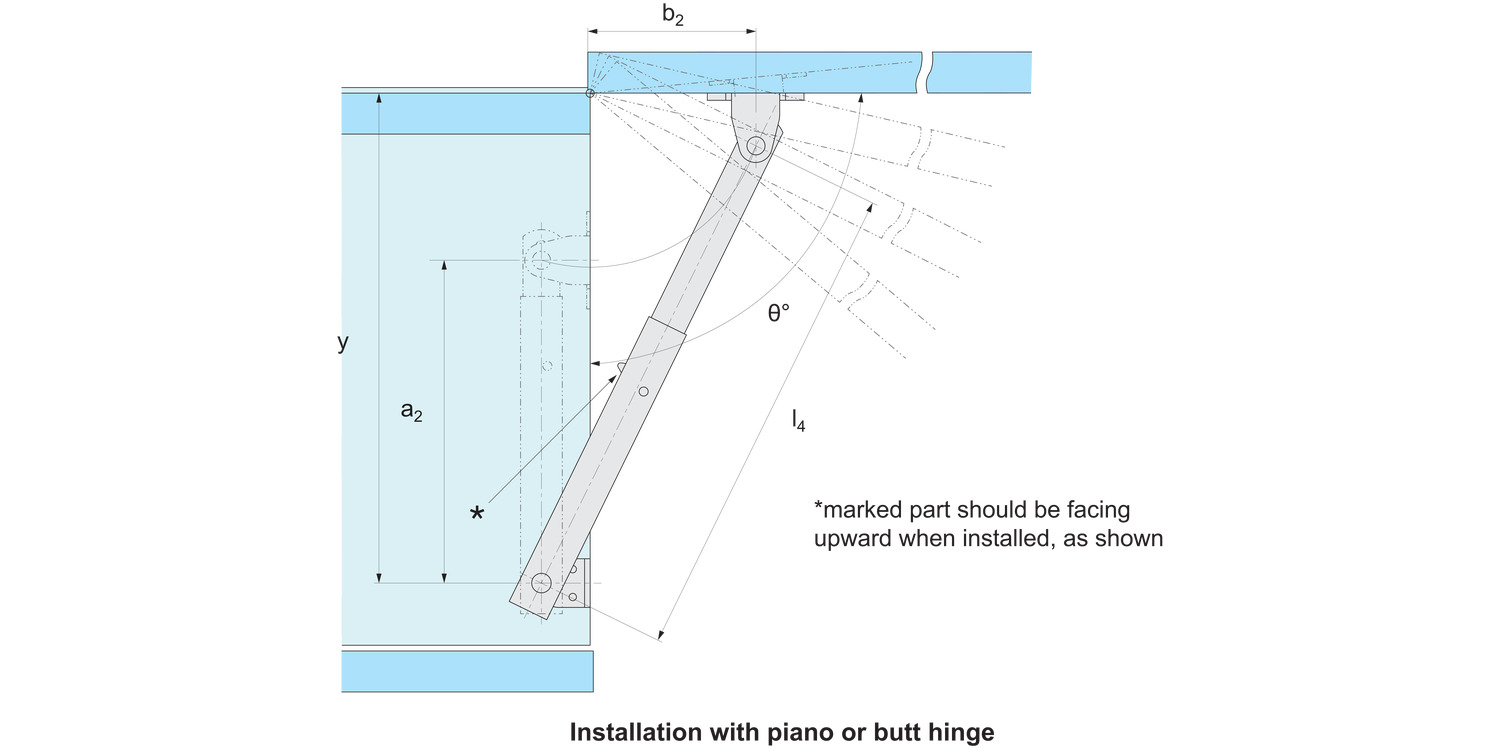

Left or right hand specific, please refer to table. Stay has ratchet mechanism to hold lid at multiple angles during opening motion. See 'Stop Positions' in table.
Product Datasheets
Application images
