Lid Stays
heavy duty - positive stop s/s
N0855 Lid Stays - Upward Opening Lid
steel, material: Steel
Alternative products you may wish to consider
£ 3.98 per unit (click for quantity discounts)
£ 3.98 per unit (click for quantity discounts)

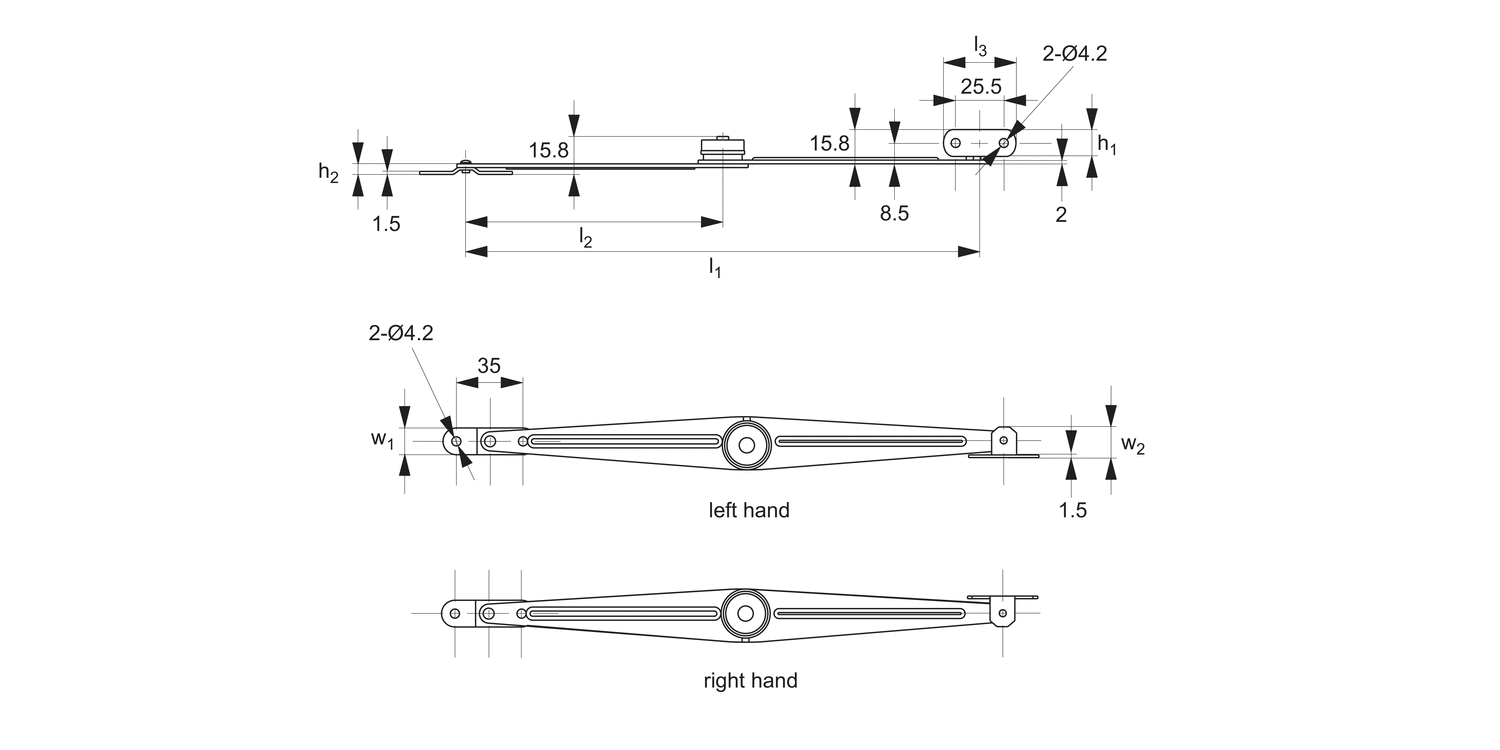

Hand
l1
l2
l3
h1
h2
w1
w2
| Price & Availability | Article | Hand | l1 | l2 | l3 | h1 | h2 | w1 | w2 | |||||||||||||||||||||
| N0855.AW0010 | Left | 268 | 134 | 36.5 | 14 | 5.8 | 14 | 9 | ||||||||||||||||||||||
£ 3.98 per unit (click for quantity discounts) Ready to despatch 6 Need more? Please call us.
Hand Left l1 268 l2 134 l3 36.5 h1 14 h2 5.8 w1 14 w2 9 | ||||||||||||||||||||||||||||||
| N0855.AW0020 | Right | 268 | 134 | 36.5 | 14 | 5.8 | 14 | 9 | ||||||||||||||||||||||
£ 3.98 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Hand Right l1 268 l2 134 l3 36.5 h1 14 h2 5.8 w1 14 w2 9 | ||||||||||||||||||||||||||||||
Technical & Application
Material
Steel, chrome plated.
Technical Notes
Fitted with positioning spring and steel ball at pivot point to provide positive stop.
Important Notes
Right or left handed, please refer to table. Ideal for screw or weld-on mounting.
Product Datasheets

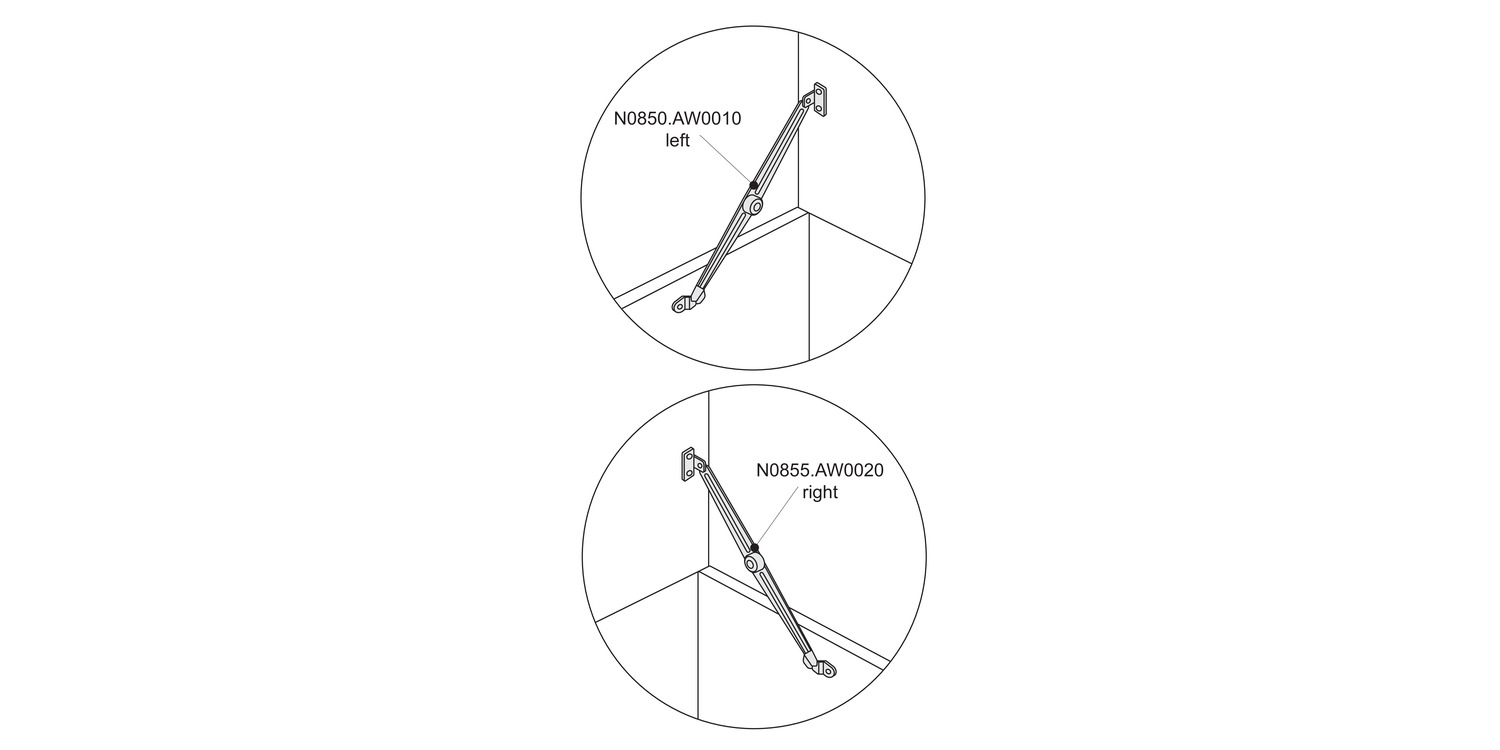

Application images
