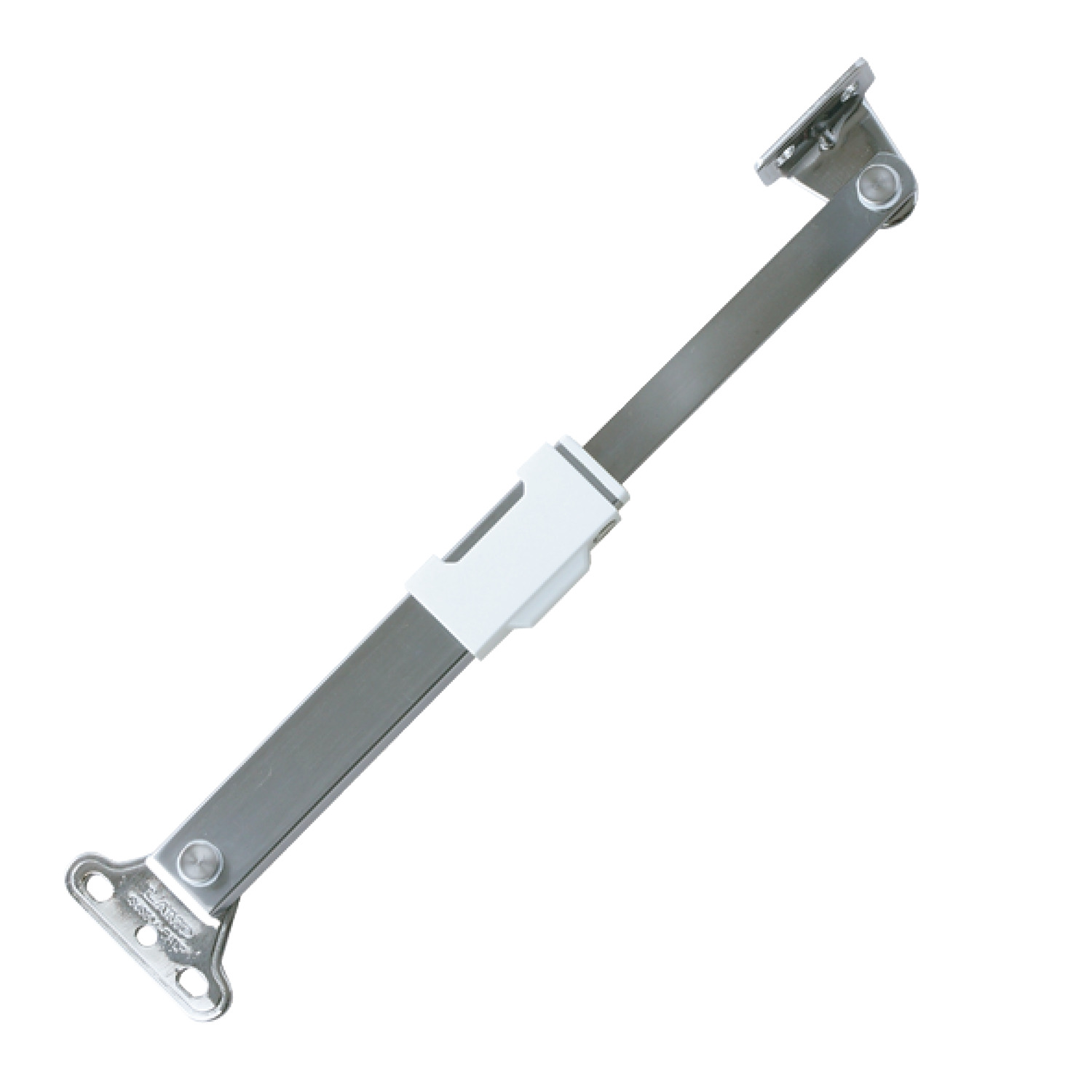

N0620 Lid Stays - Stainless Steel

for dust sensitive areas & clean rooms, material: Stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Opening angle max. °

Type

Load capacity/each kg

Price & Availability Article Opening angle max. ° Type Load capacity/each kg

N0620.AC0195

90°

Universal

£ 44.52 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 44.52	0%
10-19	£ 40.07	10%
20-49	£ 37.84	15%
50-99	£ 35.62	20%
100+	£ 33.39	25%

N0620.AC0195 Lid Stays Stainless Steel For dust sensitive areas & clean rooms. 90deg. max. opening angle

Opening angle max. °

90°

Type

Universal

Load capacity/each kg

more info »

Technical & Application

Material

Stainless steel, AISI 304, with polyacetal bushing.

Technical Notes

Holds lid in fully open position.
Universal, for both right and left applications.

Tips

Plastic bushings and end caps minimise particle displacement making the stay suitable for clean room, semi-conductor and food industry applications.
