Lid Stays
heavy duty - positive stop s/s

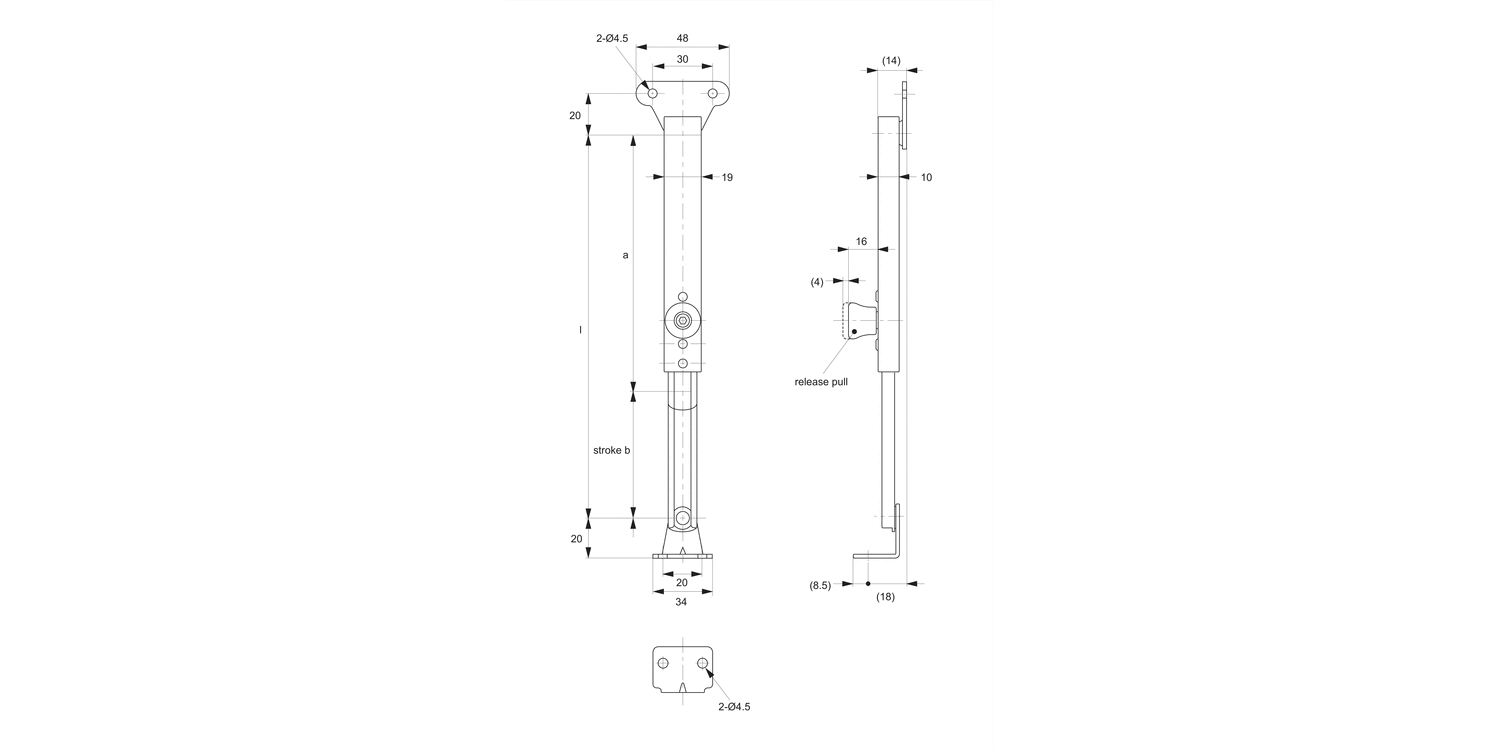

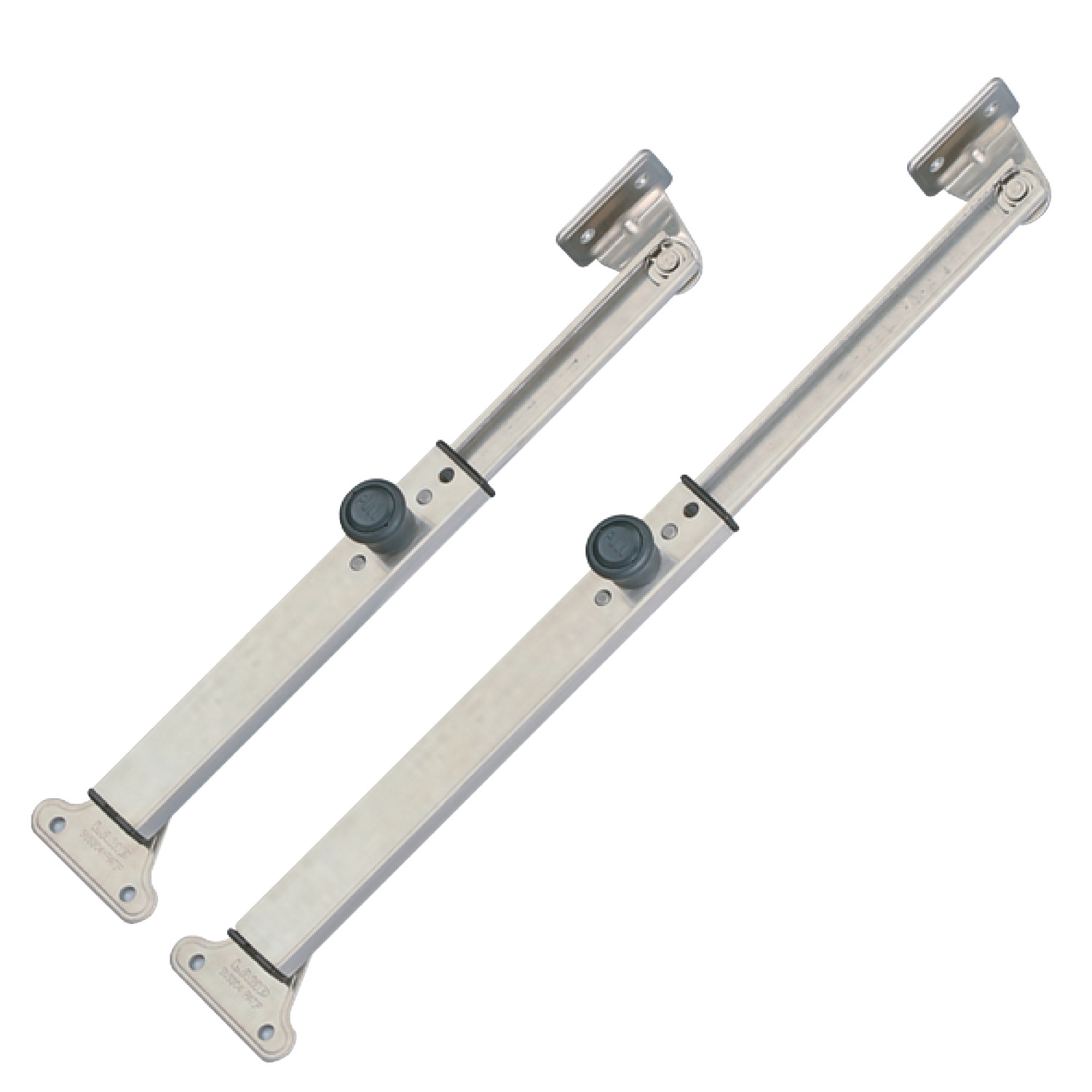

N0640 Lid Stay - with Locking
stainless steel, material: Stainless steel
Alternative products you may wish to consider
Opening angle
max.
°
90°
a
133
b
62
l
195
Load capacity
kg
30
Weight
g
126
£ 31.56 per unit (click for quantity discounts)
Opening angle
max.
°
90°
a
170
b
100
l
270
Load capacity
kg
30
Weight
g
147
£ 32.44 per unit (click for quantity discounts)
Opening angle
max.
°
a
b
l
Load capacity
kg
Weight
g
| Price & Availability | Article | Opening angle max. ° | a | b | l | Load capacity kg | Weight g | ||||||||||||||||||

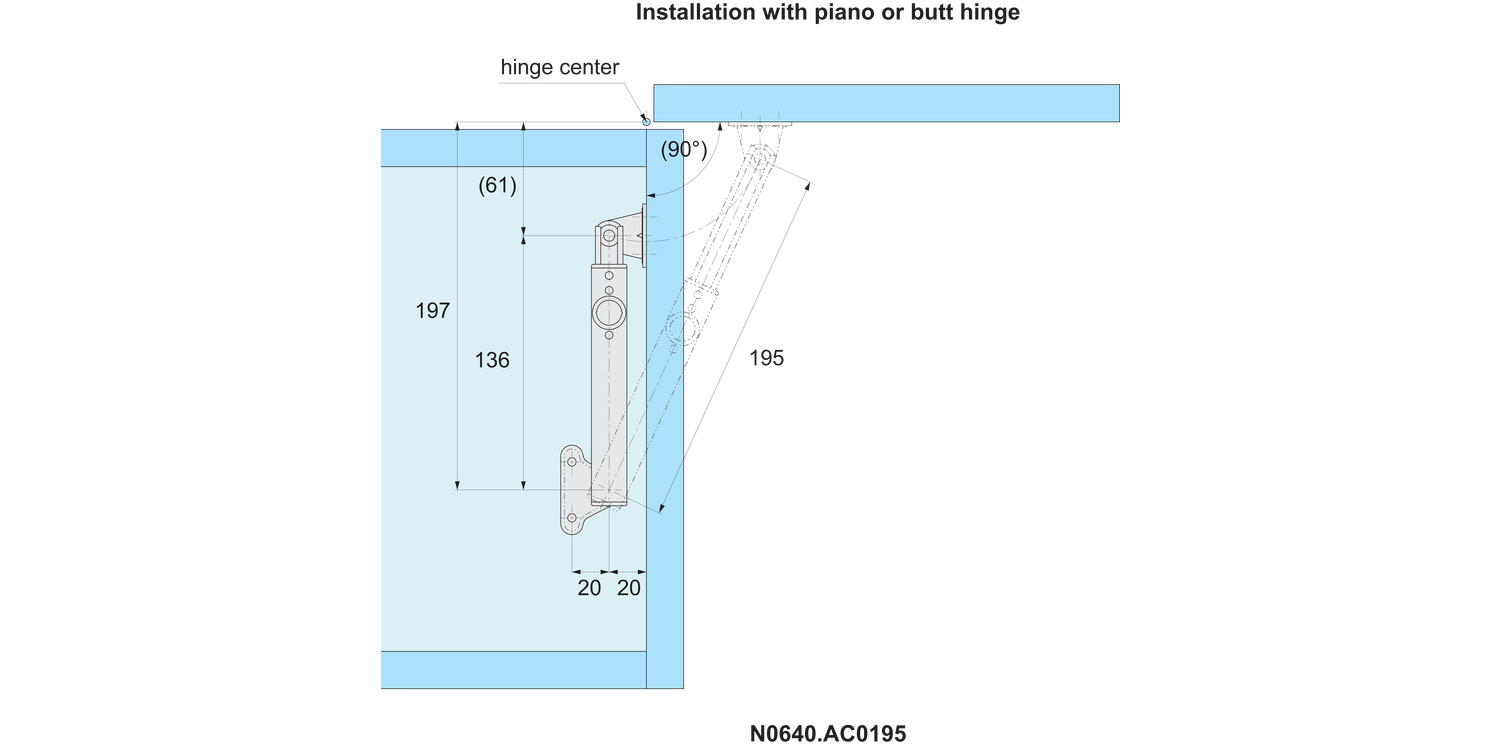

| N0640.AC0195 | 90° | 133 | 62 | 195 | 30 | 126 | |||||||||||||||||||
£ 31.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Opening angle
max.
° 90° a 133 b 62 l 195 Load capacity
kg 30 Weight
g 126 | |||||||||||||||||||||||||

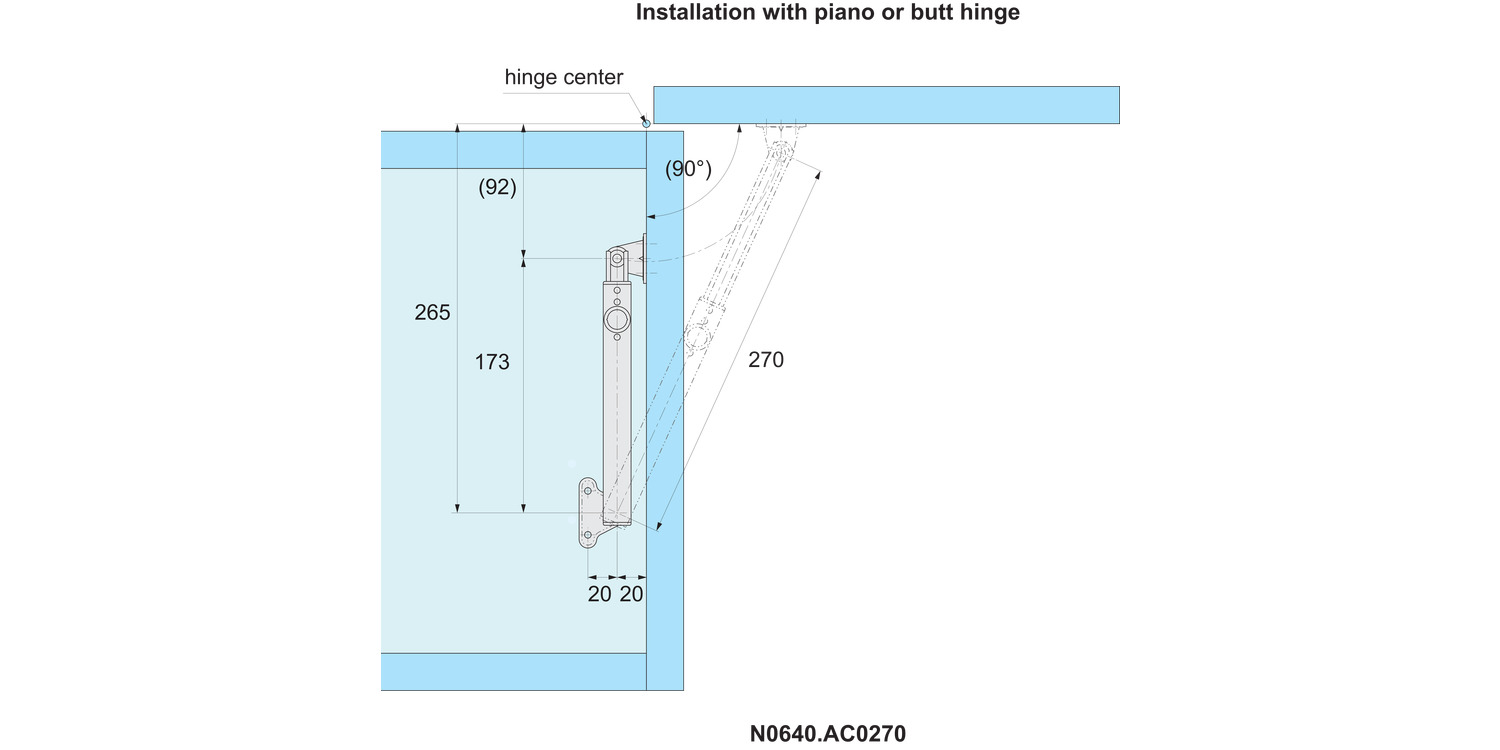

| N0640.AC0270 | 90° | 170 | 100 | 270 | 30 | 147 | |||||||||||||||||||
£ 32.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Opening angle
max.
° 90° a 170 b 100 l 270 Load capacity
kg 30 Weight
g 147 | |||||||||||||||||||||||||
Technical & Application
Material
Body: stainless Steel, AISI 304, satin finish.
Locking button: polyacetal dark grey.
Technical Notes
When fully extended stay is mechanically locked. Pull locking button to release the stay. Universal for right and left hand applications.
Tips
Mechanical lock makes the stay ideal for applications where shocks, vibration or sudden gusts of wind are present.
