Lid Stays
heavy duty - positive stop s/s
N0920 Lid Stays
positive stop - stainless steel, material: Stainless steel
Order No.
N0920.AC0100
Stop release stroke r
5.5
l1
100
l2
67
a
24
s
32
Load
max.
N
6.0
Stop release angle
15°
Weight
g
31
£ 5.69 per unit (click for quantity discounts)
Ready to despatch 3
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 5.69 | 0% |
| 10-19 | £ 5.12 | 10% |
| 20-49 | £ 4.84 | 15% |
| 50-99 | £ 4.55 | 20% |
| 100+ | £ 4.27 | 25% |
Technical & Application
Material
Body: stainless steel, AISI 304, polished.
Washer: polyacetal.
Technical Notes
Positive stop keeps lid opened. Compact size. Easy fitting with M 4 screw (please order separately, see table) or with mounting bracket set.
Mounting bracket set contains one body bracket and one arm bracket.

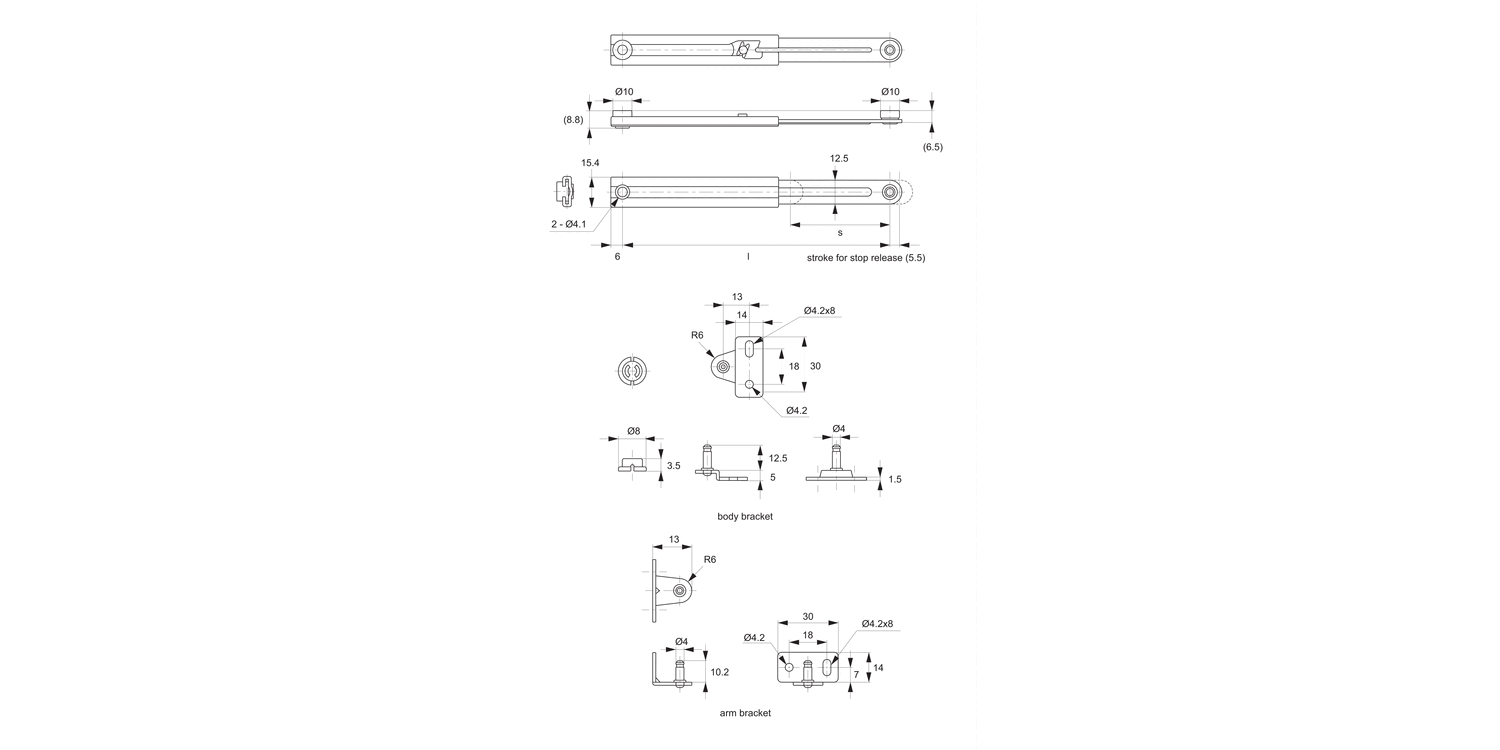

Product Datasheets

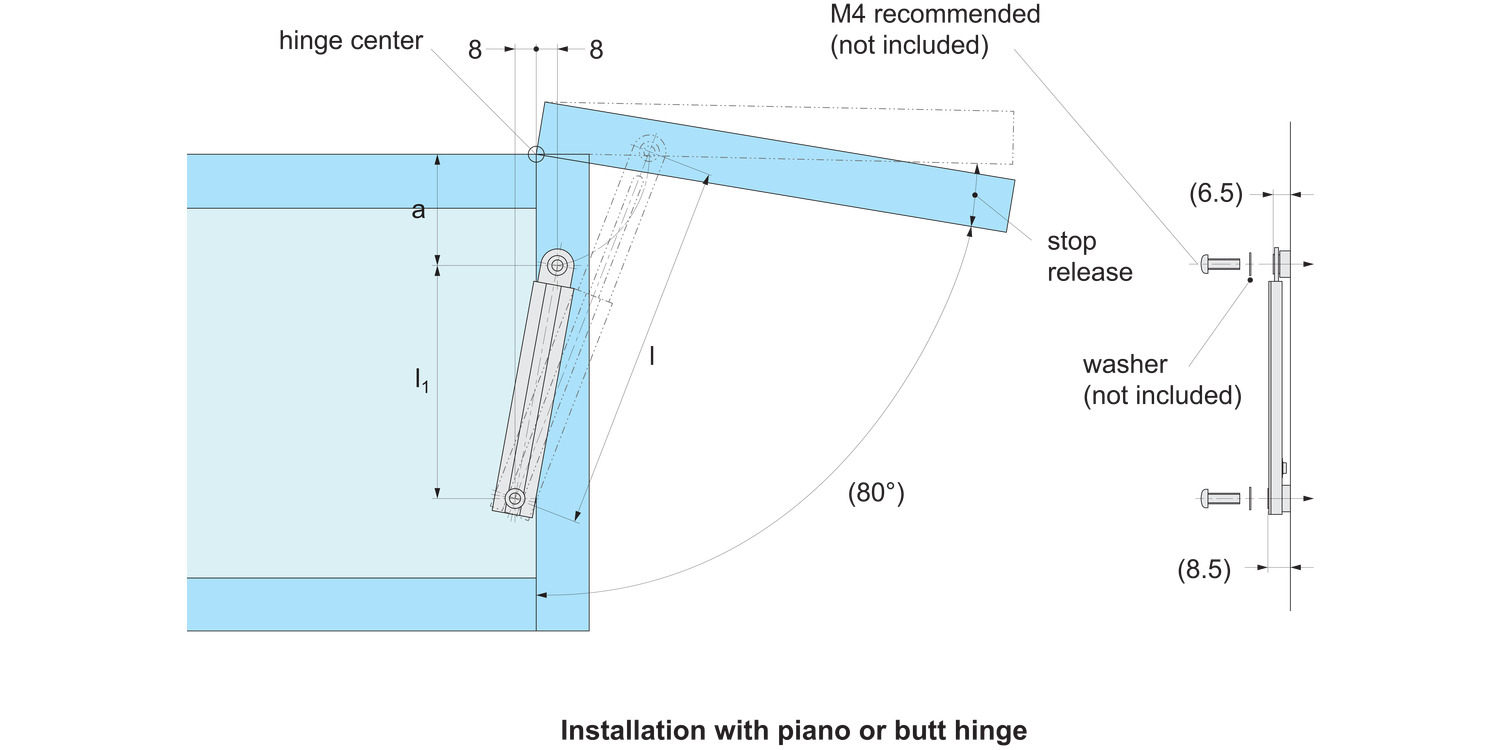

Application images
