Index Plungers from Wixroyd
Indexing plungers are versatile, commonly used components designed to precisely position and lock various moving parts of machinery and equipment. They work based on a retractable, spring-loaded pin, which when activated - either manually or automatically - allows for precise repeatable repositioning. Index plungers improve safety and efficiency across a variety of applications, and their accuracy and stability ensure surrounding components are consistently secure.
Index plungers are a critical component across a wide variety of fixtures and equipment, such as: medical and laboratory equipment, fitness and gym, agricultural machinery and assembly jigs and fixtures, and many more applications. Wixroyd stocks indexing plungers in a number of different sizes and locking functions to suit all manner of industrial and commercial applications. For an additional overview, spring loads and technical notes, download our index plungers information PDF.
Types of Index Plunger
Index plungers are available as either locking, or non-locking. Standard plungers tend to be non-locking, allowing for rapid adjustments to equipment such as gym and medical aids. In this case, the pin returns to its extended position automatically via internal spring pressure. Locking index plungers can be retracted and rotated to lock them in position until the operator is ready to re-insert the pin. Whilst non-locking allows for rapid repositioning and securing, locking plungers are versatile, and allow free movement of the opposing part.
Wixroyd's indexing plungers are available in both steel, and stainless steel, allowing you to choose the most effective material for your application. Whilst steel provides superior strength and durability, stainless offers additional corrosion resistance.
In addition, we stock a variety of grip styles for added convenience:
- Standard
- Lever
- T-handle
- Pull ring
- Weldable
- Flange mount
- Thin-walled
- Bespoke
Technical Expertise and Support
Our technical engineers are always on hand to provide assistance choosing the right type of index plunger for your application. You can also access a suite of free CAD files that provide full specifications of each component.
Index Plunger Options
Thread Mounted
A locking type with a threaded body to allow the operator to pull back the grip, rotate it 90º and lock the pin in a retracted position. Thread mounted index plungers are commonly integrated into manufacturing to securely lock components to assist with improving safety, accuracy and repeatability.
Index plungers are ideal for quick and simple manual indexing purposes.
Pull grip index plungers with coarse thread. Available in locking and non-locking type.
Wixroyd compact non-locking index plunger includes a thread recess for full engagement of thread length.
No-grip index plunger. Non-locking type - pin simply springs back when grip released.
The locking variation of the compact index plunger comes in steel and stainless steel. Engagement of the locking element requires a simple pull back and 90° twist of the plastic grip.
This range hosts an index plunger without a fitted grip, which allows the user to mount a customised handle to suit the application requirements.
Fully stainless steel non-locking index plunger. This makes it suitable for the demands of food processing, pharmaceutical or water treatment applications.
Pull grip index plunger - locking type. Available in steel or stainless steel. Turn 90° to engage 'locking' on a notched catch.
Complete stainless steel construction designed with specific demands of food processing, pharmaceutical and water treatment industries in mind. The specific range comes with a locking mechanism.
Non-locking plunger; springs back when pull handle is released. The product is designed to be welded or glued in place.
Pull grip index plunger for thin-walled parts. Locking and non-locking type available.
Pull grip index plunger. Non-locking type; pin simply springs back when the pull ring is released.
An all stainless steel index plunger designed for spring-back location. Temperature resistance ranges from -30°C to +80°C.
Non-locking steel index plunger. Ideal for either pressure (push) or tension (pull) applications, due to the uniquely designed spring loaded pin with threads at both ends to allow installation of your own adapted handle.
Pull grip index plunger with release lock. Press red button and hold whilst pulling knob to release pin. Temperature range from -30°C to +80°C.
Pull grip index plunger with rapid locking head. Pull knob up, red button flush = pin locked. Press red button, red button out = pin unlocked. Temperature range from -30°C to +80°C.
Lever and Ring Pull
Our lever indexing plungers are available as both locking and non-locking components, and allow the operator to see the position of the pin from the outside.
Ring pull plungers are non-locking, and a good option for mass production where high precision is not a strict requirement. Lever and ring pull plungers are typically used for height adjustment, conveyors, or packaging machine settings.
Precision index plungers with cylindrical pin, made from case hardened steel with thermoplastic grip. Available in locking or non-locking types.
Precision index plungers with tapered pin. Made from case hardened steel with thermoplastic grip. Available in locking or non-locking types.
Lever grip index plungers with 90° or 120° actuation. Three different types available: without rest position, with rest position and with a safety rest position.
Lever grip index plungers. At the start position locking pin is retracted, when lever is actuated locking pin protrudes. Available without rest position, with rest position and with a safety rest position.
Lever grip Iindex plungers with locking. Turn lever 180º to retract pin. To enable pin to be held in retracted position, secure lever in notched catch on plunger body.
Lever grip index plungers with locking, stainless steel. Turn lever 180º to retract pin. To enable pin to be held in retracted position, secure lever in notched catch on plunger body.
T-handleg grip index plunger, locking, compact. Easy-to-grip handle helps improved handling when using safety gloves or other situations when an operator has limited dexterity.
T-handle grip, non-locking index plungers. Easy-to-grip handle helps improved handling when using safety gloves or other situations when an operator has limited dexterity.
Pull Ring, non-locking index plungers with coarse thread. Made from stainless steel (AISI 303 and 301). Suitable for applications where high precision is not required (coarse thread).
Lever grip index plungers with coarse thread, locking. Pull back and turn lever 180º to retract pin. To enable pin to be held in retracted position, secure lever in notched catch on plunger body.
Thin-Wall
Compact in size and designed for installation on thinner materials such as sheet metal, Wixroyd’s thin-wall index plungers are available with both locking and non-locking mechanisms, and are ideal for display racks and shop fittings, furniture and light duty machinery.
An extra fine-threaded mini index plunger, for installing on the thinnest of sheet metals.
Like the other mini index plungers, this fine threaded one, has locking and non-locking models available. Galvanized steel and stainless steel pins.
Coarse threaded mini index plungers, available in stainless steel or free cutting galvanised steel. Particularly suited for use on sheet metal assemblies; e.g Shopfitting displays.
Pull grip index plunger, compact. Available in locking and non-locking type. Temperature resistance -30°C to +80°C.

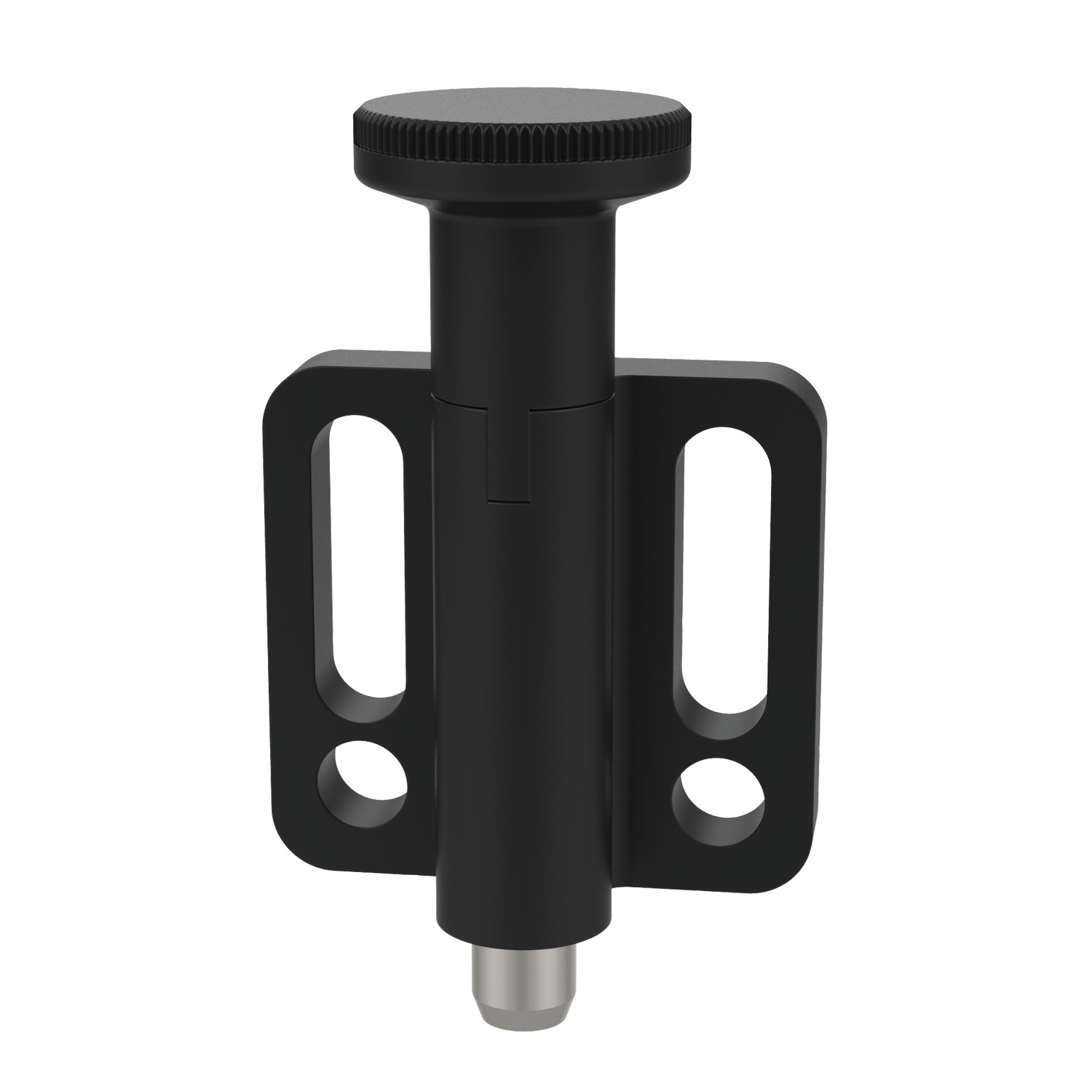

Flange Mounted
Wixroyd offers a variety of flange-mounted indexing plungers designed to suit your application. Designed for mounting on flat surfaces, they feature extended pins and are commonly used for adjustable robotic mounts and assembly lines, or for securing drawers or panels on industrial machinery.
Flange mounting lever grip index plunger with or without thermoplastic grip. Finished in anti-glare matte black. Turn lever 180° to retract pin.
These index plungers are ideal for quick and simple manual indexing purposes.
Pull grip Index plunger with flange mounting. Available in locking and non-locking type.
Pull grip index plungers in steel. For applications where high precision is not required. Coarse thread.
Pull grip index plunger with flange mounting. Available in steel or stainless steel. Locking and non-locking options available.
Pull grip index plunger with flange mounting. Weldable, compact. Available in locking and non-locking type.
Accessories for Index Plungers
Wixroyd stocks a variety of accessories that are complementary components to index plungers. Mounting blocks assist with assembly, distance collars enable different thread reaches and locating bushes provide a durable location bush. If you have any questions surrounding indexing plungers and associated accessories, please contact our specialist team.
Mounting blocks for index plungers, fine thread. Available in steel or stainless steel. Mounting blocks provide assembly support for mounting of index plungers.
Mounting blocks for index plungers, fine thread. Available in steel or stainless steel and black plastic coated. Mounting blocks provide assembly support for mounting of index plungers.
Distance collars for index plungers in stainless steel. Distance collars adapt the thread length of index plungers to enable different thread reaches.
Locating bushes for index plungers in steel. Provides a durable location bush for index plunger pins.
Associated Products
A ball-end & slot spring plunger available in steel and stainless steel, with sizes starting from M 2 up to M 24. For locating, locking and position indexing. Increased spring strength variations provided within the standard range.
For quick fastening and locking of requently repeated connections in applications such as; sports, leisure, medical and general engineering applications. Available in stainless steel, with precipitation hardened stainless steel pin, offering extreme load capacity.
Applications
- Location and positioning
- Indexing
- Positive locking
- Rapid adjustment of all kinds of tables, platforms and fixtures
- Machine cabinets
- Machine and fixture design
- OEM products
- Sports equipment
- Medical aids (wheelchairs, etc.)
- Aerospace
