Spring Plungers [Metric] Headed/Headless in steel, stainless steel, brass and delrin. Sizes M3-M24 plus smooth/weldable finish. Single/ Double Ended. Specials on request.

Spring Plungers with Ball are able to be used for locating, for applying pressure or lifting off. The spring plungers’ temperature can range up to 250°C.

To be used for locating or as a detent.
Special springs available on request.

Striker bushings are used together with spring plungers when a contact surface is required with high resistance. In particular they are recommended for use with spring plungers equipped with high load value and particularly those with increased spring loads.

Wixroyd Pull Rings are used in applications where high precision isn’t required. The pull rings also have a temperature resistance of up to 250°C.

Extended pin assists locating and indexing of components. Due to its extended length the pin does not fully retract flush to the plunger body.

Precision Index Plungers are supplied part-assembled to enable precise setting, grip and body must be glued after mounting. Non-removable once installed.

Distance collars adapt the thread length of index plungers to enable different thread reaches.

Unique design; elastic handle provides integral spring action to reset pin (hence no internal spring mechanism required). The elastic handle has been tested to over 100,000+ repetitions.

Single Acting T-Handle ball lock pins have a temperature resistance of -30°C to +150°C. Can be used for quick fastening and locking of frequently repeated connections.

Safety handle ball lock pins have the shaped handle to protect against accidental actuation of the ball lock pin. Can be used for quick fastening and locking of frequently repeated connections.

Titanium G5 pin with ceramic ball and corrosion resistant spring, offering extreme load capacity. For quick fastening and locking of frequently repeated connections. Single piece design making it ideal for applications with F.O.B. issues.

Quick lifting rings can lift forces up to 4.8kN (with a 5 fold in-built safety factor). With a temperature range up to +250°C. The design of the safety shackle prevents accidental locking/unlocking. Safety shackle is adjustable and can be used to lift components at 90°, 45° or 180°.

Heavy duty lifting pins, quick and easy to use with pivoting shackles and protective bars, to prevent unintentional unlocking. The threaded lifting pin is inserted into a threaded hole. The rotatable shackle will always align with the tensile direction of pull without the pin rotating. This prevents the load-handling device from being turned out of the thread and the component can be lifted safely.

The t-handled grip can be used to move or transport workpieces via hand, e.g. part finished components, work holding systems, speakers and other containers. Corrosion and weathering resistant, thus also suitable for outdoor application.

Locating Bushes are used for quick and safe locating of lifting pins. They provide easy and safe assembly, and can be incorporated into a variety of materials. Can be used in thin-walled parts and blind holes.

Palm Grips and Star Grips come in a large range of shapes and sizes. They come with threads or tapped/through holes for secure fixing. As well as a host of materials and finishes.

Knurled knobs are made from steel and thermoplastic.

Ergonomic designs in thermoplast or duroplast plastic, wing nuts with or without thread.

Ball Knobs, Mushroom Knobs, Gear Shift, Push Pull, Tapered and Revolving Knobs with male/female threads in a variety of materials. Also Oval, T-Handle, and Conical Knobs.

Stainless Steel Pull Handles for front/back mounting.

Plastic Pull Handles are noted for their modern design and use of the best of modern material and also their ease of installation.

Spring-loaded Pull Handles with spring arrest in both extended and retracted position. Pull Handle springs back automatically.

Hatch Pulls are made from stainless steel with a satin finish. The hatch pulls come supplied with stainless steel screws. The handles are concealed when they are not in use.

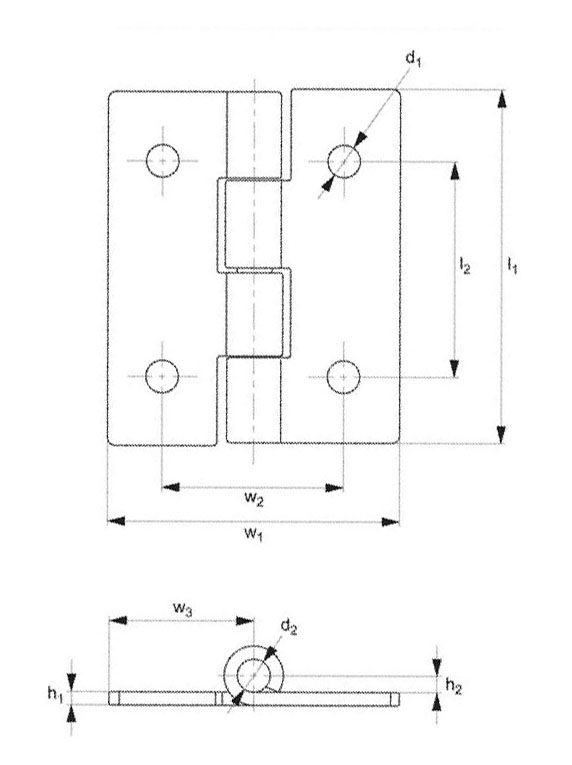

Our hinges are suitable for external applications due to their materials - the majority made from stainless steel, plastic or die-cast zinc. In this range we have tried to cover every kind of type of hinge that you may require for an external application ranging from lift-off hinges to Butt hinges.

Designed to provide a concealed hinge for any kind of applications. Variety of different mounting methods i.e, weld on, bolt on and screw mounting, different designs such as a lot of these come with a removable pin to create an easy installation method. They also come with their own specific opening maximum opening angle depending on your requirements.

Specially designed range with a Torque damper system already built in to the hinge to work with a smooth motion rather than a slam shut. The system is already built into the hinge so you will not need to worry about incorporating the torque damper into your design.

Two sizes of curved rail - made to suit the customer's required radius and arc length. Can be supplied with constant radius or with variable radius. Ideal for linear motion guide rail systems that need to turn corners.

Designed for those applications where there is limited space; however, a secure fastener is still required a good example of this would be in an office cabinet. 3 different designs all designed to be small for easy installation, they come in varying materials and finishes and are either keyed alike or to differ depending on the application requirements.

Ideal for applications where the Cam offset is not quite enough. There are 2 main types of these extended grip fasteners either the ones with the stepped Cams for if you require a gradual tightening mechanism over 270 degrees, used mostly if the grip distance is varying. Great for any kind of sound proofing application. Alternatively these come with a fixed extended grip for when you only have one distance you need to grip to.

3 different designs of Padlockable Cam Latches, the Quarter Turn with padlock used easily either as a single unit or as a pair, the Wing Knob with a padlock can be installed simply and effectively by securing the wing knob with a padlock to stop actuation of the Fastener. Lastly, the Combination Lock range for applications where more than one person requires access to the locked component.

Heavy duty pull handle with quarter turn fastener for machine guards, covers, panels etc.
A4620 has threaded stem of either 32mm (short stem) or 65mm (long stem) which can be cut to length to achieve h dimension (grip length) of your choice, to best suit your application.
