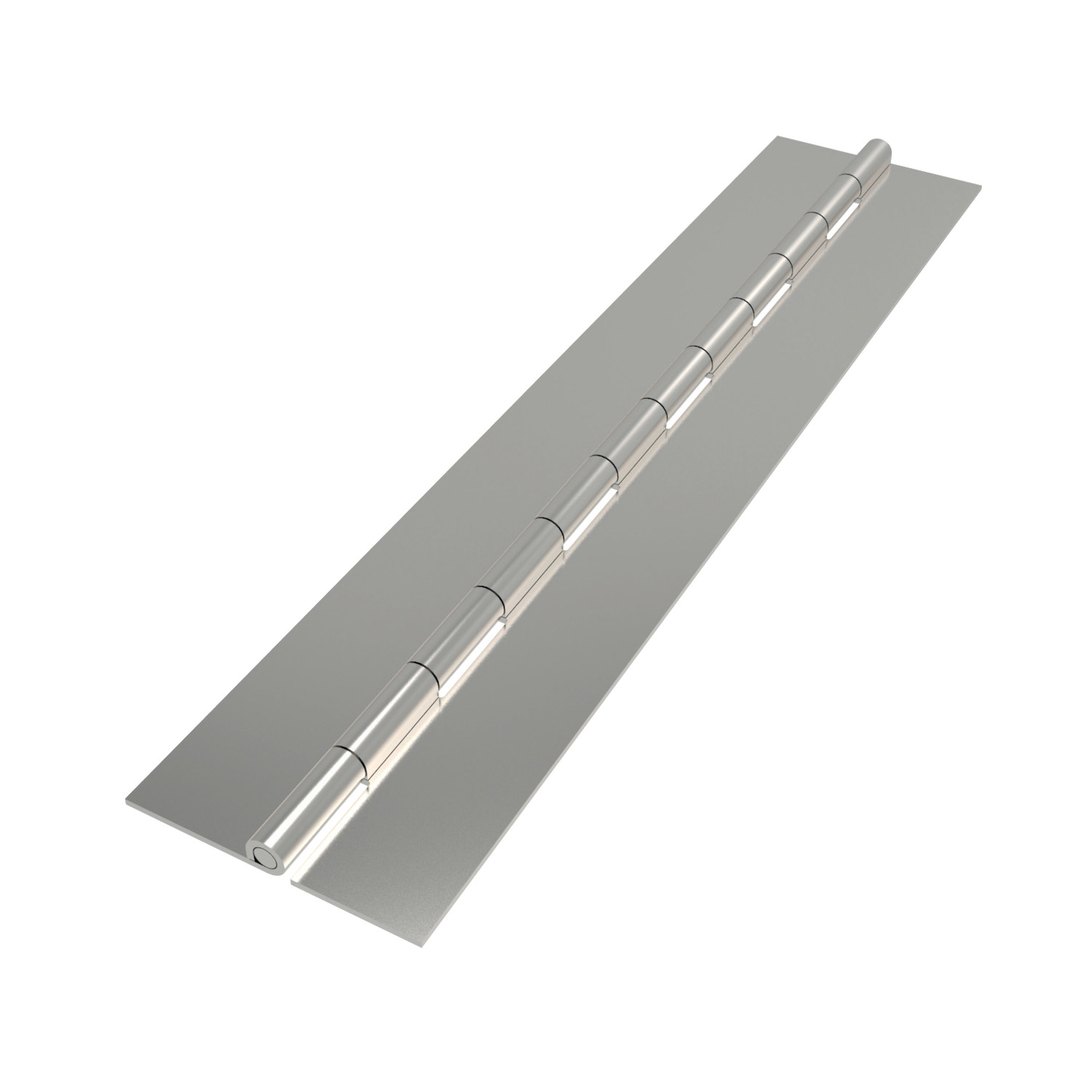

S0050 Surface Mount - Piano Hinges

Name: S0050.AC0382
Brand: WC
SKU: S0050.AC0382
Price: 50.44 EUR
Availability: OutOfStock

weld-on - stainless steel, material: Stainless steel

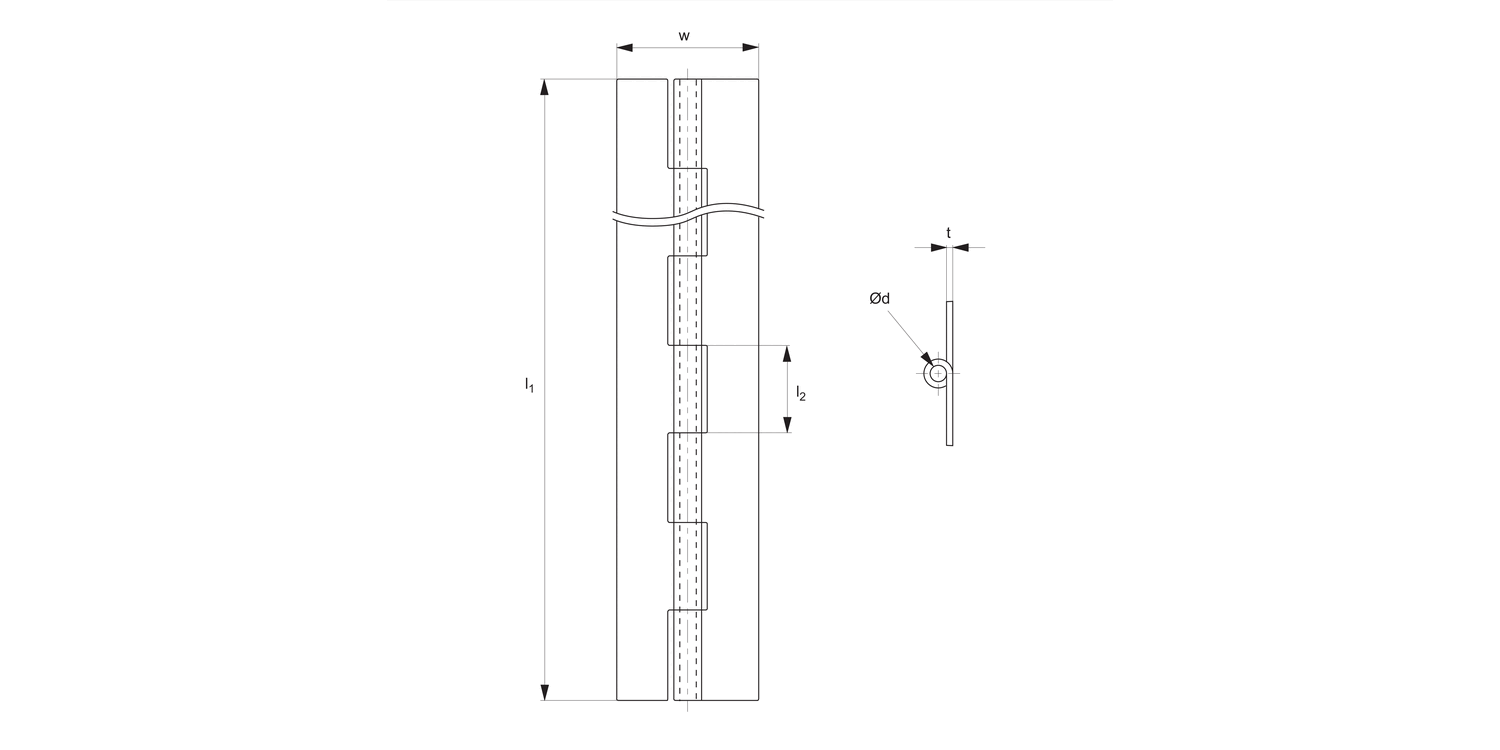

Article properties

Order No.

S0050.AC0382

l₁

1000

l₂

20.0

1.5

3.5

Weight g

615

See full product selection

£ 50.44 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 50.44	0%
5-9	£ 47.92	5%
10-19	£ 45.40	10%
20-49	£ 42.87	15%
50+	£ 37.83	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Stainless steel, AISI 304, satin finish.

Product Datasheets

S0050 Surface Mount - Piano HingesJune 24, 2025, 3:37 PM / 1.61 MB

External HingesJune 24, 2025, 3:36 PM / 13.59 MB

HingesJune 24, 2025, 3:31 PM / 7.89 MB

Hinges & DampersJune 24, 2025, 3:32 PM / 10.40 MB

Access ComponentsJune 24, 2025, 3:32 PM / 32.33 MB

CAD files

S0050 AcisApril 17, 2024, 10:22 AM / 1.35 MB

S0050 IGESApril 17, 2024, 10:22 AM / 1.79 MB

S0050 ParasolidApril 17, 2024, 10:22 AM / 759.88 kB

S0050 ProEApril 17, 2024, 10:22 AM / 806.32 kB

S0050 SolidWorksApril 17, 2024, 10:22 AM / 2.58 MB

S0050 StepApril 17, 2024, 10:22 AM / 789.25 kB
