S1928 Corner Hinge 24 - 26mm Door Return
cut out and clip fix - zinc, material: Zinc
Alternative products you may wish to consider
Finish
Black Coated
Door return
24.6
a
4.6
b
20
Fx
N
1050
Fy
N
980
mc
min.
3
ts panel thickness
1.5
£ 4.57 per unit (click for quantity discounts)
Finish
Black Coated
Door return
25.1
a
5.1
b
20
Fx
N
1050
Fy
N
980
mc
min.
3
ts panel thickness
2.0
£ 4.57 per unit (click for quantity discounts)
Finish
Black Coated
Door return
26.1
a
6.1
b
20
Fx
N
1050
Fy
N
980
mc
min.
3
ts panel thickness
3.0
£ 4.57 per unit (click for quantity discounts)
Finish
Door return
a
b
Fx
N
Fy
N
mc
min.
ts panel thickness
| Price & Availability | Article | Finish | Door return | a | b | Fx N | Fy N | mc min. | ts panel thickness | ||||||||||||||||||
| S1928.AW0001 | Black Coated | 24.6 | 4.6 | 20 | 1050 | 980 | 3 | 1.5 | |||||||||||||||||||
£ 4.57 per unit (click for quantity discounts) Ready to despatch 200 Need more? Please call us.
Finish Black Coated Door return 24.6 a 4.6 b 20 Fx
N 1050 Fy
N 980 mc
min. 3 ts panel thickness 1.5 | |||||||||||||||||||||||||||
| S1928.AW0002 | Black Coated | 25.1 | 5.1 | 20 | 1050 | 980 | 3 | 2.0 | |||||||||||||||||||
£ 4.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Finish Black Coated Door return 25.1 a 5.1 b 20 Fx
N 1050 Fy
N 980 mc
min. 3 ts panel thickness 2.0 | |||||||||||||||||||||||||||
| S1928.AW0003 | Black Coated | 26.1 | 6.1 | 20 | 1050 | 980 | 3 | 3.0 | |||||||||||||||||||
£ 4.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Finish Black Coated Door return 26.1 a 6.1 b 20 Fx
N 1050 Fy
N 980 mc
min. 3 ts panel thickness 3.0 | |||||||||||||||||||||||||||
Technical & Application
Material
Hinge: die cast zinc, black powder coated.
Pin: steel, nickel-plated.
Technical Notes
Opening angle 180°.
Tips

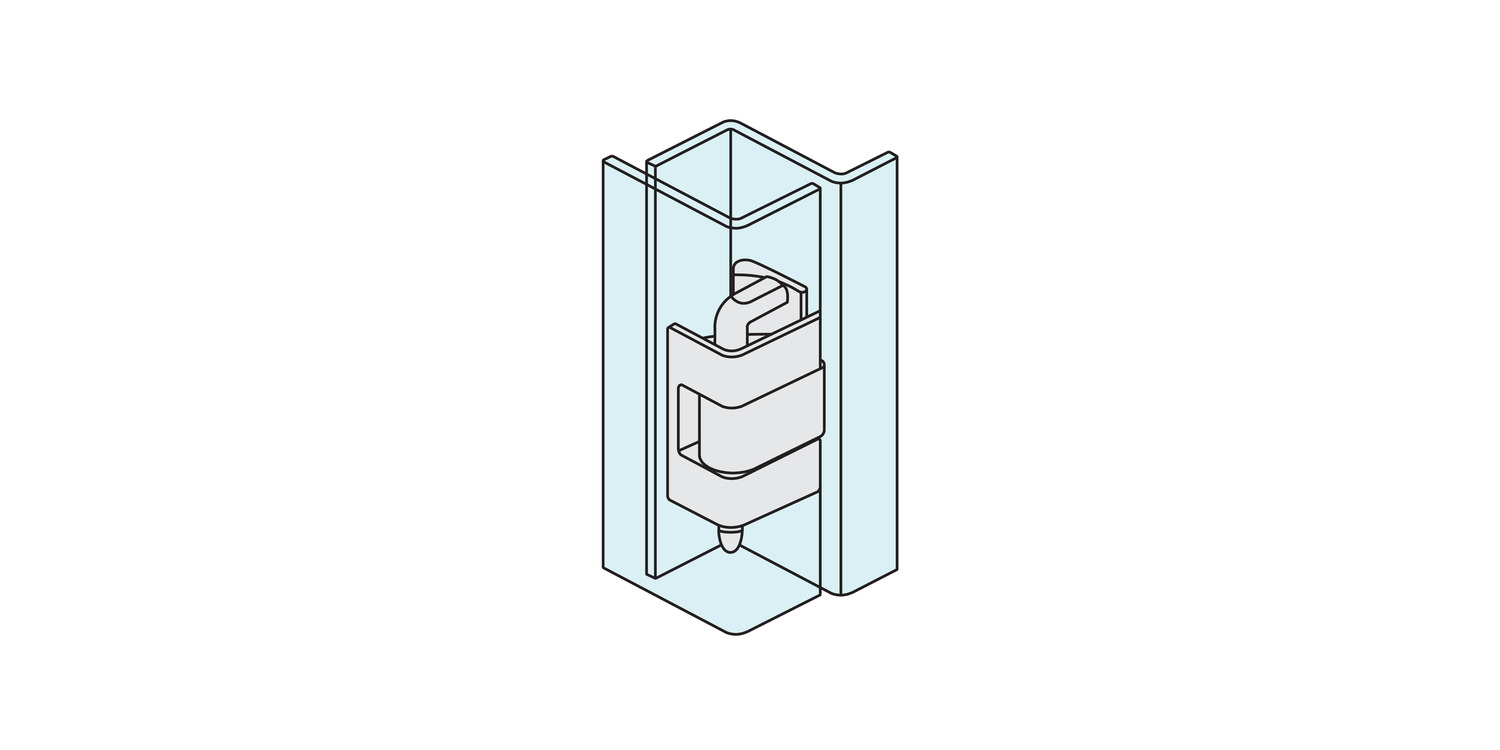

Mounting via use of installation clip and "t-nut" slot on hinge body. Requires additional cutout in frame (see technical drawing).
Important Notes
dr= Maximum door return suitable for use with hinge.
mc= Minimum clearance advised between enclosure cover and body to ensure smooth, full opening of elclosure cover.
Product Datasheets

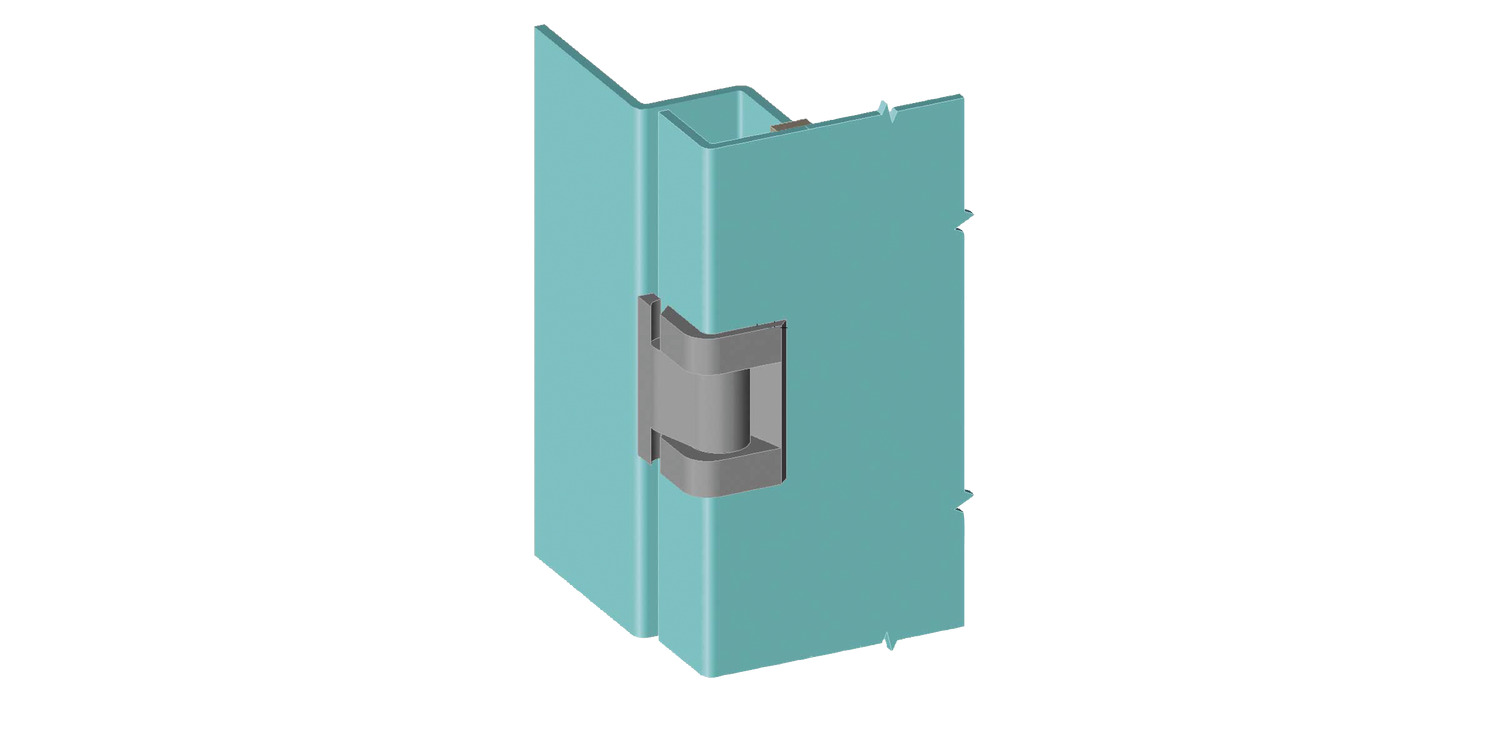

Application images
