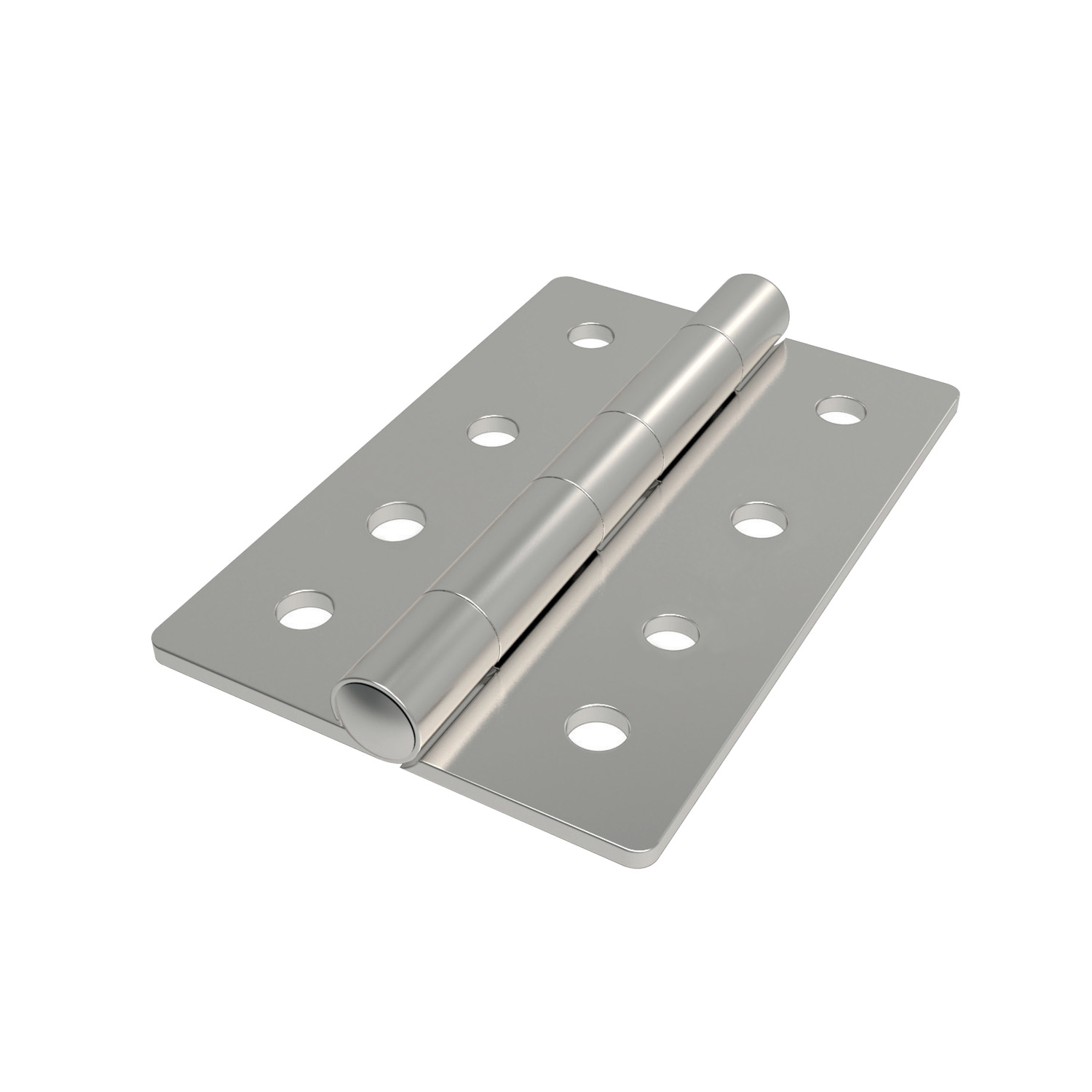

S0780 Surface Mount - Leaf Hinge

screw mount - stainless steel, material: Stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Surface Mount - Piano
weld-on - s/s

Surface Mount - Piano
screw mount - s/s

Surface Mount - Pivot
inset - s/s

Surface Mount - Pivot
overlay - s/s

Surface Mount - Pivot
overlay - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
clean room - screw mount

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount
weld-on

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - zinc

Surface Mount - Leaf
screw mount - plastic

Surface Mount - Leaf
integrated stud mount - zinc

Surface Mount
intergrated stud mount

Surface Mount - Leaf
intg. stud mount - plastic

Surface Mount
intergrated stud mount

Surface Mount
screw mount

Surface Mount
integrated stud

Surface Mount
integrated stud mount

Surface Mount
intergrated stud & screw mount

Surface Mount
intergrated stud & screw mount

Surface Mount
bolt-on

Surface Mount
bolt-on

Surface Mount
axial adjustment

Surface Mount
axial adjustment

Surface Mount
screw mount

Surface Mount
screw mount

Corner Hinge
cut-out and locking screw

Corner Hinge
cut-out and integrated stud

Corner Hinge
cut out and counter sunk screw

Corner Hinge
cut out and countersunk screw

Corner Hinge
cutout and countersunk screw

Corner Hinge
cutout and clip fix

Corner Hinge
cutout and countersunk screw

Corner Hinge
Locking nut % recessed hexagon

Surface Mount
dble pivot - screw mount - s/s

Surface Mount
bolt-on

Surface Mount
bolt-on

Off-Set Mount Hinge
bolt-on

Flush Mount - Drop Lid
overlay - zinc

Flush Mount - Drop Lid
two pivot overlay - brass

Surface Mount
rear front mount



Select all

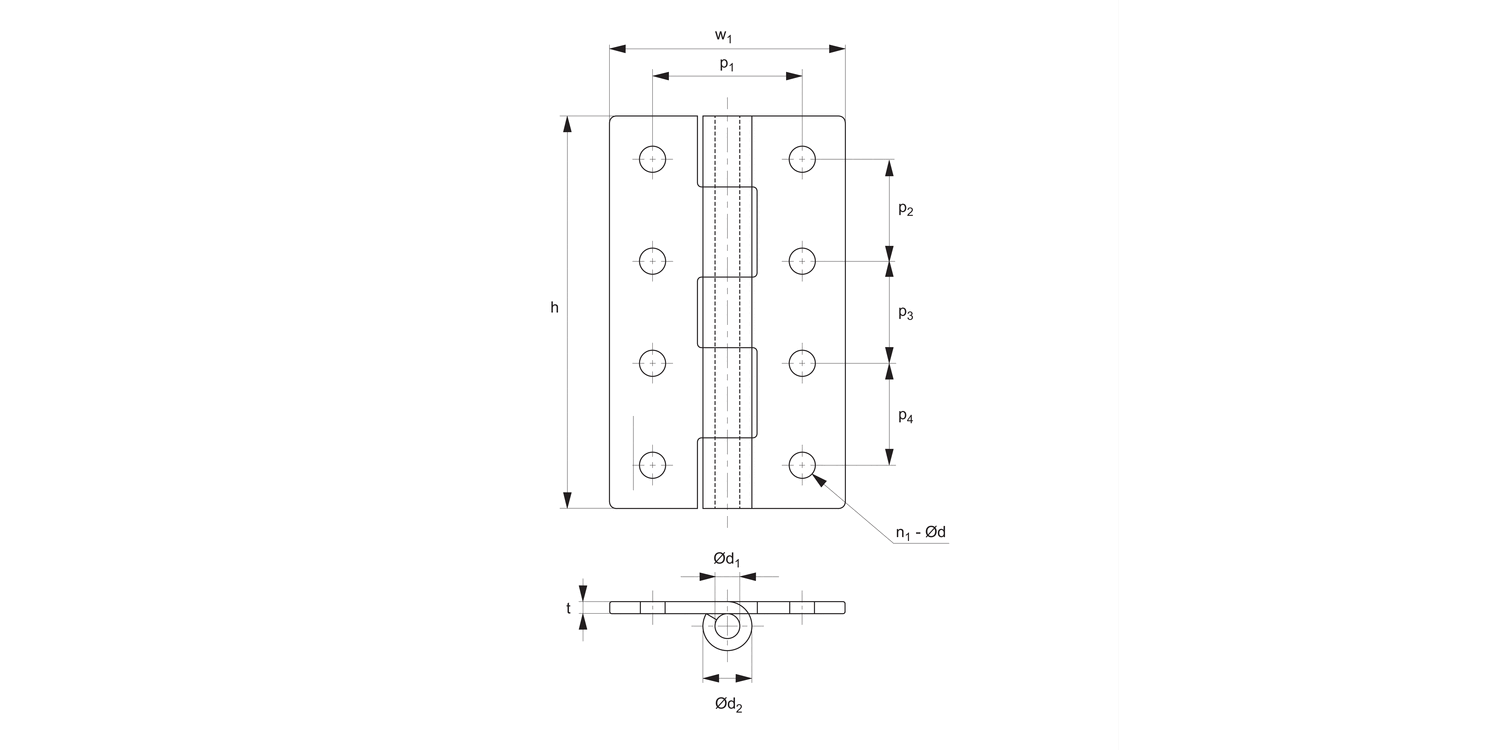

h

n₁

n₂

p₁

p₂

p₃

Price & Availability	Article	h	n1	n2	p1	p2	p3
	S0780.AC0040	40	4	3	22	26	-
£ 4.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 4.95 0% 20-49 £ 4.46 10% 50-99 £ 4.21 15% 100-499 £ 3.71 25% 500+ £ 3.22 35% h 40 n1 4 n2 3 p1 22 p2 26 p3 - more info »
	S0780.AC0050	50	4	3	22	34	-
£ 5.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 5.64 0% 20-49 £ 5.08 10% 50-99 £ 4.79 15% 100-499 £ 4.23 25% 500+ £ 3.67 35% h 50 n1 4 n2 3 p1 22 p2 34 p3 - more info »
	S0780.AC0065	65	6	5	30	23	23
£ 10.49 per unit (click for quantity discounts) Ready to despatch 29 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 10.49 0% 20-49 £ 9.44 10% 50-99 £ 8.92 15% 100-499 £ 7.87 25% 500+ £ 6.82 35% h 65 n1 6 n2 5 p1 30 p2 23 p3 23 more info »
	S0780.AC0075	75	6	5	30	27	27
£ 11.79 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 11.79 0% 20-49 £ 10.61 10% 50-99 £ 10.02 15% 100-499 £ 8.84 25% 500+ £ 7.66 35% h 75 n1 6 n2 5 p1 30 p2 27 p3 27 more info »
	S0780.AC0090	90	6	5	38	35	35
£ 20.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 20.93 0% 20-49 £ 18.84 10% 50-99 £ 17.79 15% 100-499 £ 15.70 25% 500+ £ 13.60 35% h 90 n1 6 n2 5 p1 38 p2 35 p3 35 more info »
	S0780.AC0100	100	8	5	38	26	26
£ 23.58 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 23.58 0% 20-49 £ 21.22 10% 50-99 £ 20.04 15% 100-499 £ 17.69 25% 500+ £ 15.33 35% h 100 n1 8 n2 5 p1 38 p2 26 p3 26 more info »



Select all

Weight g

p₄

t

w

d₁

d₂

d₃

Load/pair kg

Price & Availability	Article	Weight g	p4	t	w	d1	d2	d3	Load/pair kg
	S0780.AC0040	25	-	1.5	35	3.2	3.0	6.3	6
£ 4.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 4.95 0% 20-49 £ 4.46 10% 50-99 £ 4.21 15% 100-499 £ 3.71 25% 500+ £ 3.22 35% Weight g 25 p4 - t 1.5 w 35 d1 3.2 d2 3.0 d3 6.3 Load/pair kg 6 more info »
	S0780.AC0050	30	-	1.5	35	4.3	3.0	6.3	8
£ 5.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 5.64 0% 20-49 £ 5.08 10% 50-99 £ 4.79 15% 100-499 £ 4.23 25% 500+ £ 3.67 35% Weight g 30 p4 - t 1.5 w 35 d1 4.3 d2 3.0 d3 6.3 Load/pair kg 8 more info »
	S0780.AC0065	64	-	2.0	50	4.3	4.5	8.8	13
£ 10.49 per unit (click for quantity discounts) Ready to despatch 29 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 10.49 0% 20-49 £ 9.44 10% 50-99 £ 8.92 15% 100-499 £ 7.87 25% 500+ £ 6.82 35% Weight g 64 p4 - t 2.0 w 50 d1 4.3 d2 4.5 d3 8.8 Load/pair kg 13 more info »
	S0780.AC0075	74	-	2.0	50	5.3	4.5	8.8	15
£ 11.79 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 11.79 0% 20-49 £ 10.61 10% 50-99 £ 10.02 15% 100-499 £ 8.84 25% 500+ £ 7.66 35% Weight g 74 p4 - t 2.0 w 50 d1 5.3 d2 4.5 d3 8.8 Load/pair kg 15 more info »
	S0780.AC0090	180	-	3.0	60	6.4	6.0	12.3	25
£ 20.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 20.93 0% 20-49 £ 18.84 10% 50-99 £ 17.79 15% 100-499 £ 15.70 25% 500+ £ 13.60 35% Weight g 180 p4 - t 3.0 w 60 d1 6.4 d2 6.0 d3 12.3 Load/pair kg 25 more info »
	S0780.AC0100	195	26	3.0	60	6.4	6.0	12.3	30
£ 23.58 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 23.58 0% 20-49 £ 21.22 10% 50-99 £ 20.04 15% 100-499 £ 17.69 25% 500+ £ 15.33 35% Weight g 195 p4 26 t 3.0 w 60 d1 6.4 d2 6.0 d3 12.3 Load/pair kg 30 more info »
