S1903 Corner Hinge 19 - 21mm Door Return

cut out and integrated stud - stainless steel, material: Stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Surface Mount - Piano
weld-on - s/s

Surface Mount - Piano
screw mount - s/s

Surface Mount - Pivot
inset - s/s

Surface Mount - Pivot
overlay - s/s

Surface Mount - Pivot
overlay - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
clean room - screw mount

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount
weld-on

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - zinc

Surface Mount - Leaf
screw mount - plastic

Surface Mount - Leaf
integrated stud mount - zinc

Surface Mount
intergrated stud mount

Surface Mount - Leaf
intg. stud mount - plastic

Surface Mount
intergrated stud mount

Surface Mount
screw mount

Surface Mount
integrated stud

Surface Mount
integrated stud mount

Surface Mount
intergrated stud & screw mount

Surface Mount
intergrated stud & screw mount

Surface Mount
bolt-on

Surface Mount
bolt-on

S1806 - Surface Mount - HVAC Applications

Surface Mount
axial adjustment

S1823 - Surface Mount - HVAC Applications

Surface Mount
axial adjustment

S1826 - Surface Mount - HVAC Applications

Surface Mount
screw mount

S1828 - Surface Mount - HVAC Applications

Surface Mount
screw mount

S1901 - Corner Hinge - 19-24mm Door Return

Corner Hinge
cut-out and locking screw

S1903 - Corner Hinge 19 - 21mm Door Return

Corner Hinge
cut-out and integrated stud

S1911 - Corner Hinge - 24 to 26mm Door Return

Corner Hinge
cut out and counter sunk screw

Corner Hinge
cut out and countersunk screw

Corner Hinge
cutout and countersunk screw

S1928 - Corner Hinge 24 - 26mm Door Return

Corner Hinge
cutout and clip fix

Corner Hinge
cutout and countersunk screw

Corner Hinge
Locking nut % recessed hexagon

Surface Mount
dble pivot - screw mount - s/s

Surface Mount
bolt-on

S2017 - Surface Mount - Off-Set - Mount Hinge

Surface Mount
bolt-on

Off-Set Mount Hinge
bolt-on

Flush Mount - Drop Lid
overlay - zinc

Flush Mount - Drop Lid
two pivot overlay - brass

Surface Mount
rear front mount

Finish

Door return

h₁

h₂

F_x kN

F_y kN

mc min.

ts panel thickness

Price & Availability Article Finish Door return h₁ h₂ F_x kN F_y kN mc min. ts panel thickness

S1903.AW0015

Stainless

19.6

4.6

900

700

1.5

£ 15.16 per unit (click for quantity discounts)

Ready to despatch 40
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 15.16	0%
20-49	£ 13.64	10%
50-99	£ 12.89	15%
100-499	£ 11.37	25%
500+	£ 9.85	35%

S1903.AW0015 Corner Hinge cut-out and intergrated stud

Finish

Stainless

Door return

19.6

h₁

4.6

h₂

F_x kN

900

F_y kN

700

mc min.

ts panel thickness

1.5

more info »

Technical & Application

Material

Hinge: stainless steel AISI 304, wire-drawing polishing.

Technical Notes

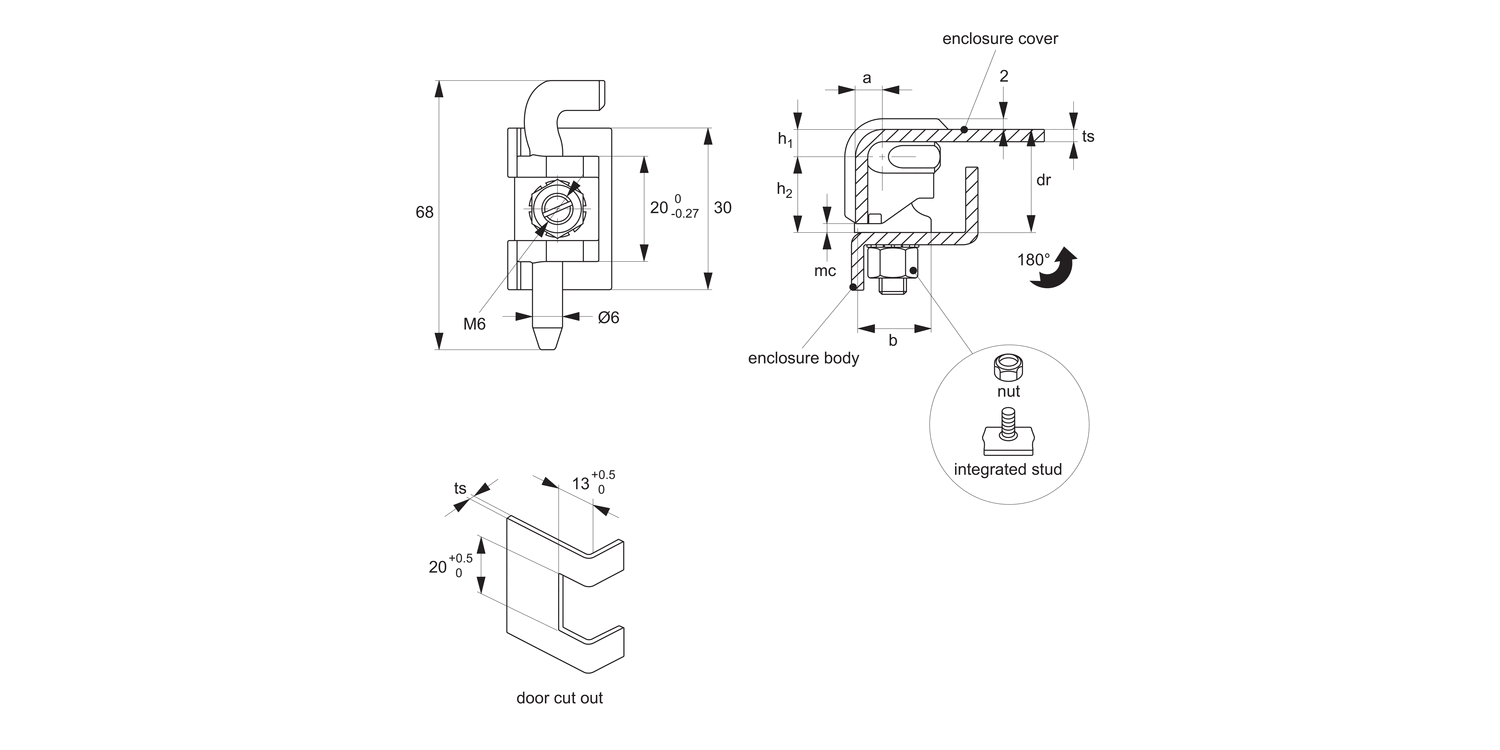

For sheet metal and machine enclosures with a 19 to 21mm door return, up to 2mm thick. For installation dimension see cut out detail.
Universal left or right hand opening doors.
Max. opening angle 180°.

Tips

Use M6 nut on intergrated stud to secure (not supplied).

Important Notes

dr= Maximum door return suitable for use with hinge.
mc= Minimum clearance advised between enclosure cover and body to ensure smooth, full opening of enclosure cover.

Product Datasheets

S1903 Corner Hinge 19 - 21mm Door ReturnJanuary 3, 2025, 3:33 PM / 178.33 kB

External HingesJanuary 3, 2025, 3:35 PM / 3.55 MB

HingesJanuary 3, 2025, 3:35 PM / 7.89 MB

Hinges & DampersJanuary 3, 2025, 3:35 PM / 10.41 MB

Access ComponentsJanuary 3, 2025, 3:35 PM / 32.63 MB

CAD files

S1903 AcisApril 17, 2024, 10:22 AM / 85.92 kB

S1903 IGESApril 17, 2024, 10:22 AM / 172.49 kB

S1903 ParasolidApril 17, 2024, 10:22 AM / 63.52 kB

S1903 ProEApril 17, 2024, 10:22 AM / 429.17 kB

S1903 SolidWorksApril 17, 2024, 10:22 AM / 312.85 kB

S1903 StepApril 17, 2024, 10:22 AM / 100.84 kB

S1903 Corner Hinge 19 - 21mm Door Return

cut out and integrated stud - stainless steel, material: Stainless steel

Alternative products you may wish to consider

Technical & Application

Material

Technical Notes

Tips

Important Notes

Product Datasheets

CAD files

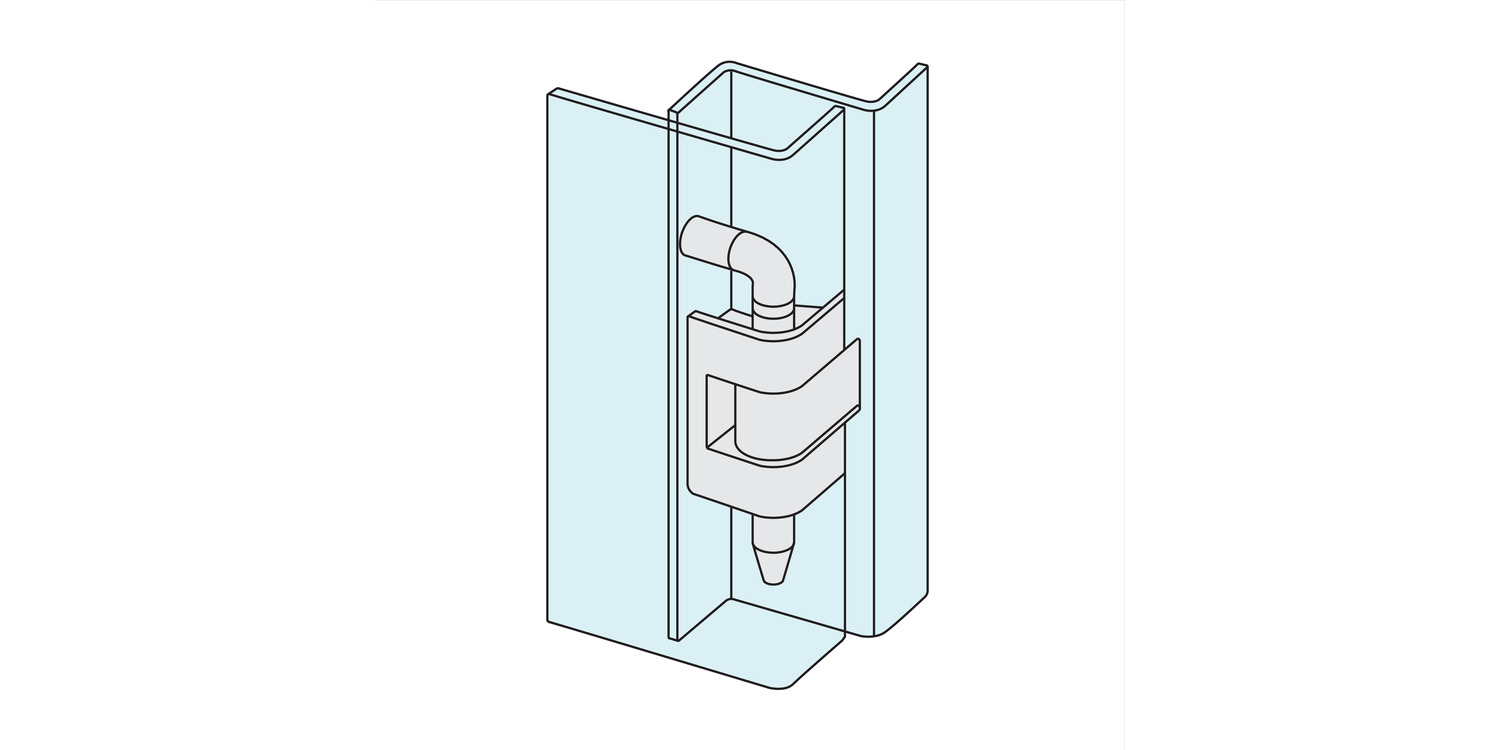

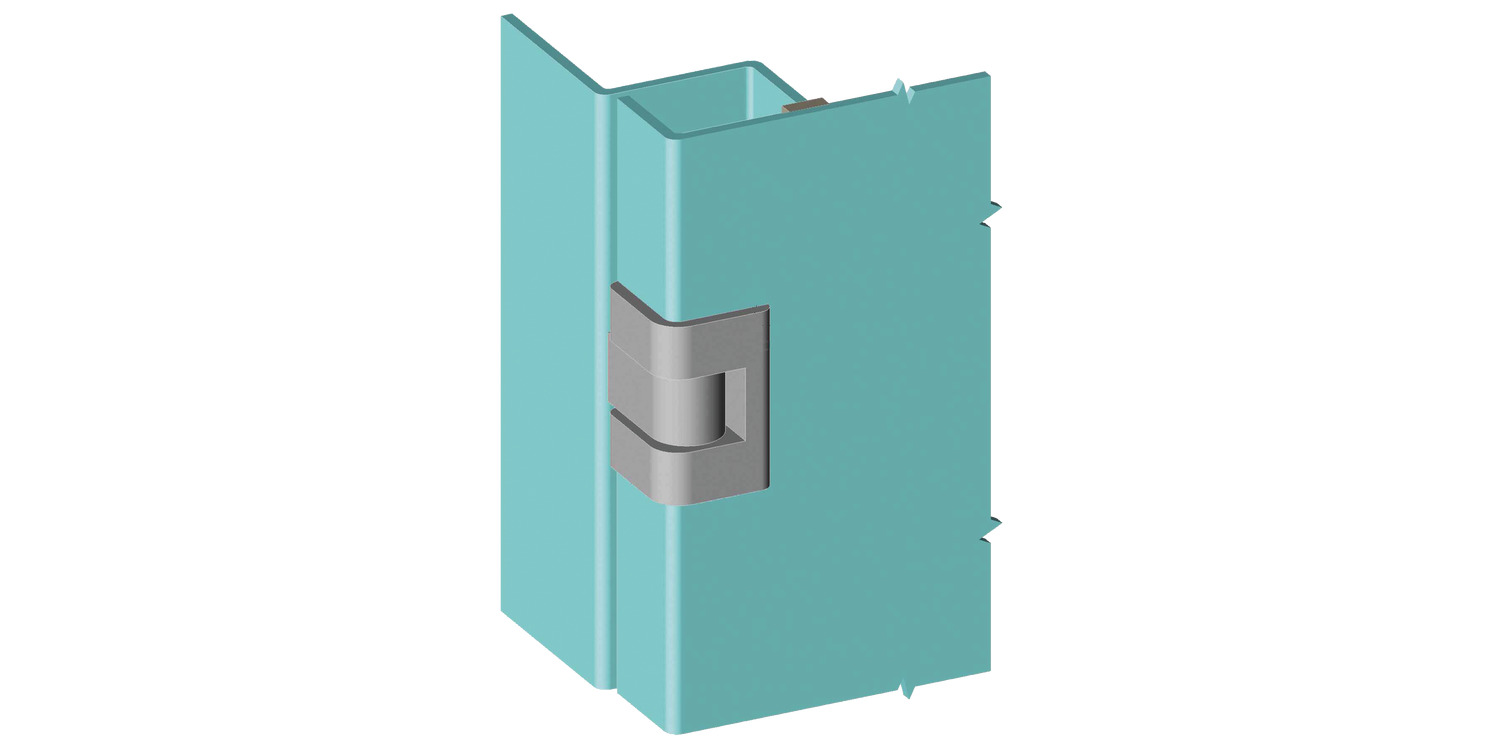

Application images
