External Hinges
HomeProductsAccess ComponentsHinges & DampersHingesExternal HingesS1903S1903.AW0015

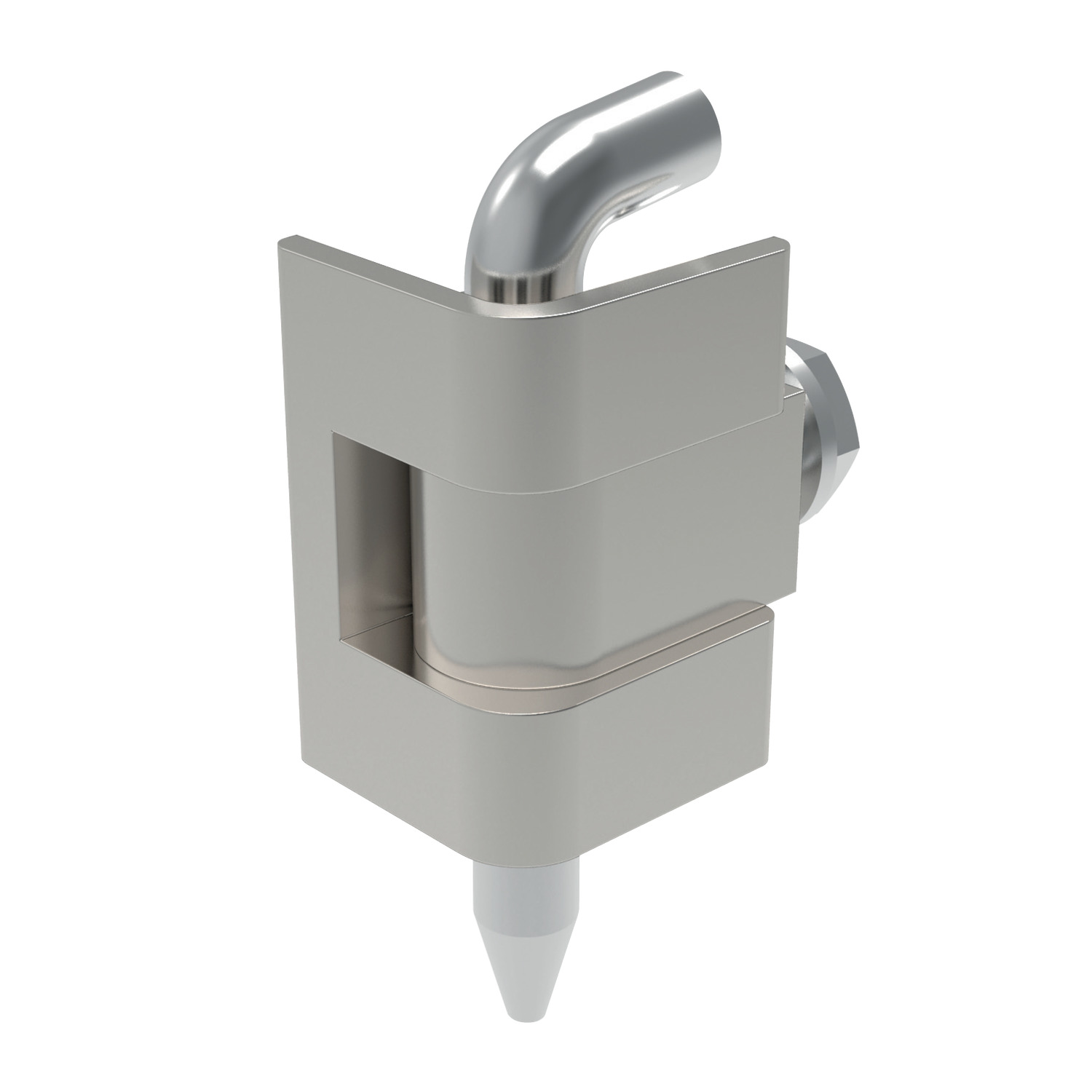

S1903 Corner Hinge 19 - 21mm Door Return

cut out and integrated stud - stainless steel, material: Stainless steel
S1903 Corner Hinge 19 - 21mm Door Return
S1903 Corner Hinge 19 - 21mm Door Return
Article properties
Order No.
S1903.AW0015
Finish
Stainless
Door return
19.6
h1
4.6
h2
15
Fx kN
900
Fy kN
700
mc min.
2
ts panel thickness
1.5
See full product selection
£ 15.16 per unit (click for quantity discounts)
Ready to despatch 40
Need more? Please call us.
Buy more & save with our quantity discounts
UnitsPrice/unit
after discount		Applied
Discount
1-19£ 15.160%
20-49£ 13.6410%
50-99£ 12.8915%
100-499£ 11.3725%
500+£ 9.8535%
Download product datasheet
Download FREE CAD

Technical & Application

Material

Hinge: stainless steel AISI 304, wire-drawing polishing.

Technical Notes

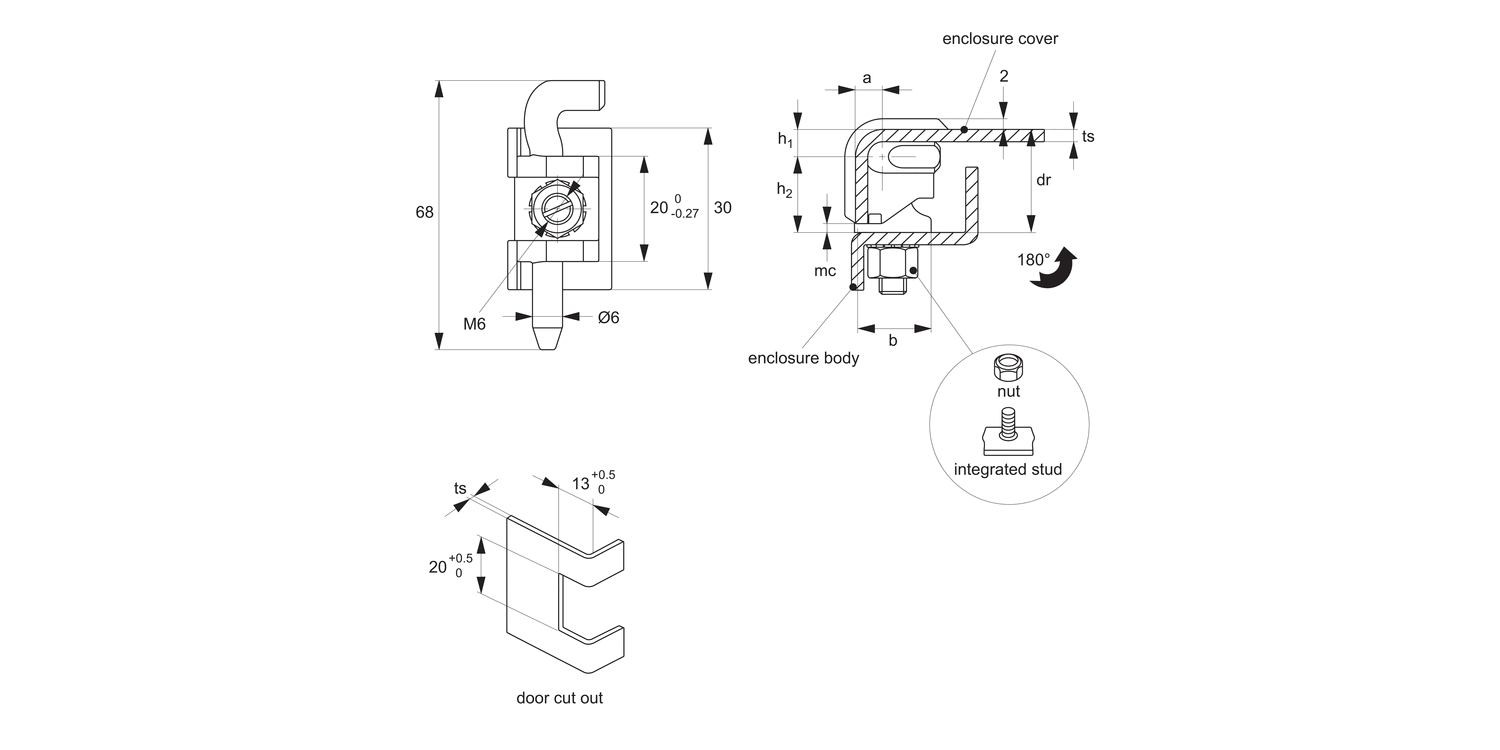

For sheet metal and machine enclosures with a 19 to 21mm door return, up to 2mm thick. For installation dimension see cut out detail.
Universal left or right hand opening doors.
Max. opening angle 180°.

Tips

Use M6 nut on intergrated stud to secure (not supplied).

Important Notes

dr= Maximum door return suitable for use with hinge.
mc= Minimum clearance advised between enclosure cover and body to ensure smooth, full opening of enclosure cover.

Product Datasheets

S1903 Corner Hinge 19 - 21mm Door ReturnJanuary 3, 2025, 3:33 PM / 178.33 kB
External HingesJanuary 3, 2025, 3:35 PM / 3.55 MB
HingesJanuary 3, 2025, 3:35 PM / 7.89 MB
Hinges & DampersJanuary 3, 2025, 3:35 PM / 10.41 MB
Access ComponentsJanuary 3, 2025, 3:35 PM / 32.63 MB

CAD files

S1903 AcisApril 17, 2024, 10:22 AM / 85.92 kB
S1903 IGESApril 17, 2024, 10:22 AM / 172.49 kB
S1903 ParasolidApril 17, 2024, 10:22 AM / 63.52 kB
S1903 ProEApril 17, 2024, 10:22 AM / 429.17 kB
S1903 SolidWorksApril 17, 2024, 10:22 AM / 312.85 kB
S1903 StepApril 17, 2024, 10:22 AM / 100.84 kB

Application images

s1903 application images
s1903 application images
