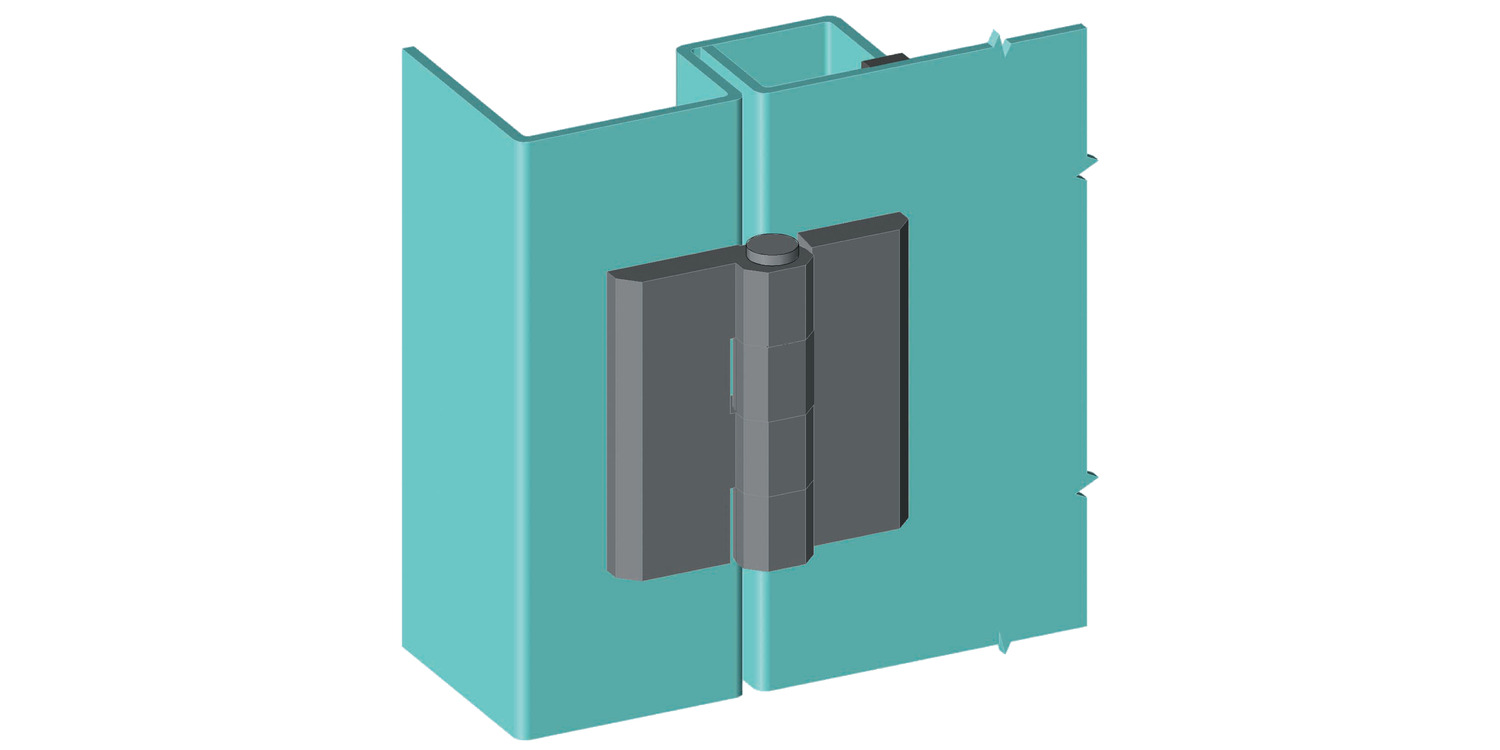

S1101 Surface Mount - Leaf Hinges

integrated stud mount - zinc, material: Die cast zinc

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Surface Mount - Piano
weld-on - s/s

Surface Mount - Piano
screw mount - s/s

Surface Mount - Pivot
inset - s/s

Surface Mount - Pivot
overlay - s/s

Surface Mount - Pivot
overlay - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
clean room - screw mount

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount
weld-on

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - zinc

Surface Mount - Leaf
screw mount - plastic

Surface Mount - Leaf
integrated stud mount - zinc

Surface Mount
intergrated stud mount

Surface Mount - Leaf
intg. stud mount - plastic

Surface Mount
intergrated stud mount

Surface Mount
screw mount

Surface Mount
integrated stud

Surface Mount
integrated stud mount

Surface Mount
intergrated stud & screw mount

Surface Mount
intergrated stud & screw mount

Surface Mount
bolt-on

Surface Mount
bolt-on

Surface Mount
axial adjustment

Surface Mount
axial adjustment

Surface Mount
screw mount

Surface Mount
screw mount

Corner Hinge
cut-out and locking screw

Corner Hinge
cut-out and integrated stud

Corner Hinge
cut out and counter sunk screw

Corner Hinge
cut out and countersunk screw

Corner Hinge
cutout and countersunk screw

Corner Hinge
cutout and clip fix

Corner Hinge
cutout and countersunk screw

Corner Hinge
Locking nut % recessed hexagon

Surface Mount
dble pivot - screw mount - s/s

Surface Mount
bolt-on

Surface Mount
bolt-on

Off-Set Mount Hinge
bolt-on

Flush Mount - Drop Lid
overlay - zinc

Flush Mount - Drop Lid
two pivot overlay - brass

Surface Mount
rear front mount

Surface Mount - Leaf Hinges rear mount - Black Coated zinc 40X40

S1101.AW0040

Finish

Black Coated

Size

40 x 40

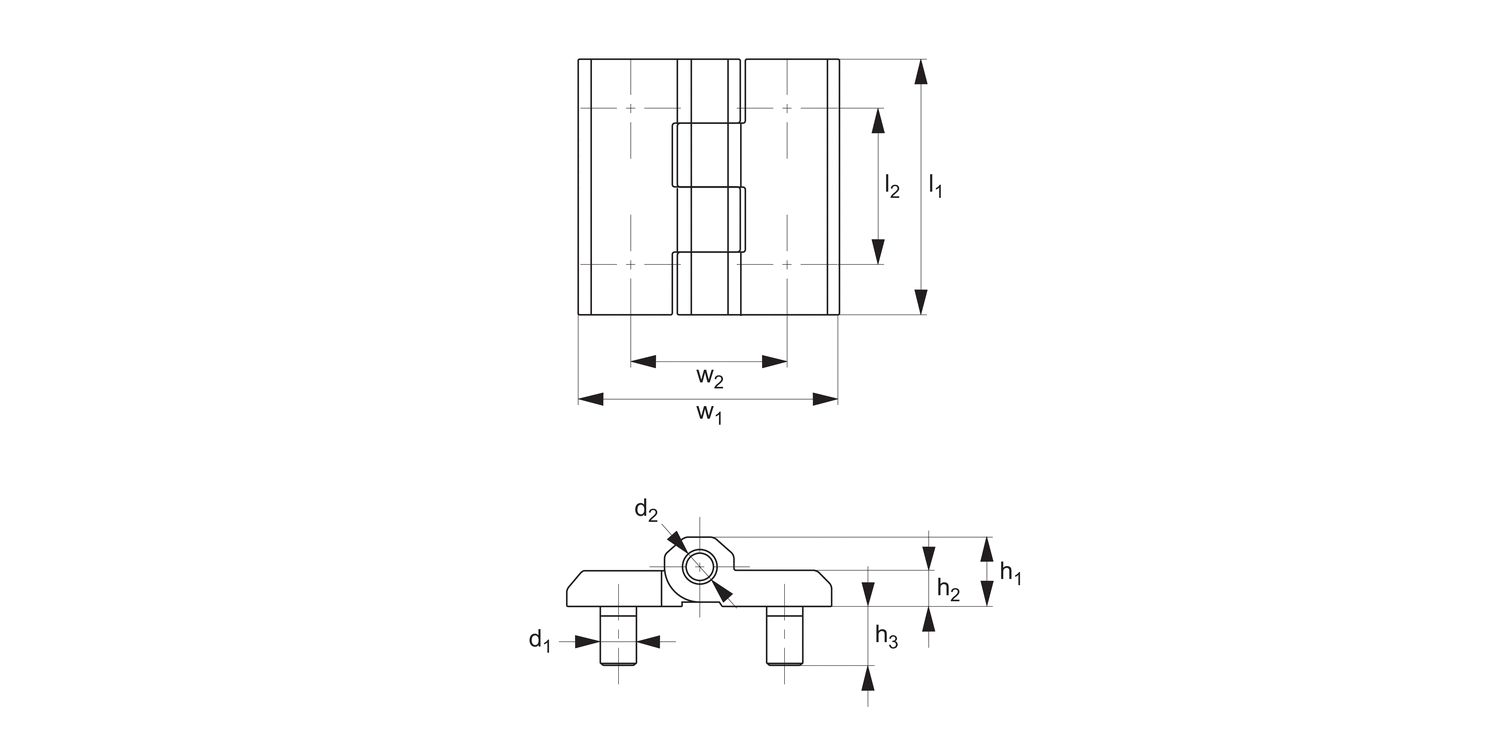

h₁

9.0

h₂

5

h₃

10.0

l₁

40

l₂

25

w₁

40

w₂

25

d₁

M 5

d₂

4

90° Angled stress

1.85

Axial load F_x max. N

1.2

Axial stress kN

0.9

Radial load F_x max. N

1.0

Radial stress kN

1.7

£ 3.89 per unit (click for quantity discounts)

Surface Mount - Leaf Hinges Rear mount - zinc, 50X50, black coated

S1101.AW0050

Finish

Black Coated

Size

50 x 50

h₁

11.5

h₂

6

h₃

12.5

l₁

50

l₂

30

w₁

50

w₂

30

d₁

M 6

d₂

6

90° Angled stress

2.0

Axial load F_x max. N

1.3

Axial stress kN

2.05

Radial load F_x max. N

1.2

Radial stress kN

3.55

£ 5.03 per unit (click for quantity discounts)

Surface Mount - Leaf integrated stud mount - zinc

S1101.AW0057

Finish

Black Coated

Size

50 x 70

h₁

11.5

h₂

6

h₃

12.5

l₁

50

l₂

30

w₁

76

w₂

56

d₁

M 6

d₂

6

90° Angled stress

2.00

Axial load F_x max. N

1.2

Axial stress kN

1.5

Radial load F_x max. N

11.2

Radial stress kN

3.00

£ 8.08 per unit (click for quantity discounts)

Surface Mount - Leaf Hinges Surface Mount - Leaf Hingesrear mount - zinc60X60

S1101.AW0060

Finish

Black Coated

Size

60 x 60

h₁

15.0

h₂

8

h₃

16.5

l₁

60

l₂

36

w₁

60

w₂

36

d₁

M 6

d₂

8

90° Angled stress

2.55

Axial load F_x max. N

1.8

Axial stress kN

3.05

Radial load F_x max. N

1.5

Radial stress kN

4.05

£ 6.49 per unit (click for quantity discounts)

Surface Mount - Leaf integrated stud mount - zinc

S1101.AW0612

Finish

Black Coated

Size

60 x 120

h₁

15.0

h₂

8

h₃

16.5

l₁

60

l₂

36

w₁

120

w₂

88

d₁

M 8

d₂

8

90° Angled stress

1.5

Axial load F_x max. N

1.2

Axial stress kN

1.5

Radial load F_x max. N

1.12

Radial stress kN

4.5

£ 16.16 per unit (click for quantity discounts)

Surface Mount - Leaf Hinges rear mount - Chrome Finish zinc 40X40

S1101.AW0140

Finish

Chrome

Size

40 x 40

h₁

9.0

h₂

5

h₃

10.0

l₁

40

l₂

25

w₁

40

w₂

25

d₁

M 5

d₂

4

90° Angled stress

-

Axial load F_x max. N

-

Axial stress kN

-

Radial load F_x max. N

-

Radial stress kN

-

£ 1.87 per unit (click for quantity discounts)

Surface Mount Leaf Hinge - Die Cast Zinc chrome -50x50 - Equal - Rear - Rear

S1101.AW0150

Finish

Chrome

Size

50 x 50

h₁

11.5

h₂

6

h₃

12.5

l₁

50

l₂

30

w₁

50

w₂

30

d₁

M 6

d₂

6

90° Angled stress

-

Axial load F_x max. N

-

Axial stress kN

-

Radial load F_x max. N

-

Radial stress kN

-

£ 2.35 per unit (click for quantity discounts)

Surface Mount Leaf Hinge - Die Cast Zinc chrome - 3 - Equal - Rear - Rear

S1101.AW0160

Finish

Chrome

Size

60 x 60

h₁

15.0

h₂

8

h₃

16.5

l₁

60

l₂

36

w₁

60

w₂

36

d₁

M 8

d₂

8

90° Angled stress

-

Axial load F_x max. N

-

Axial stress kN

-

Radial load F_x max. N

-

Radial stress kN

-

£ 4.52 per unit (click for quantity discounts)

Surface Mount - Leaf Hinges rear mount - Black Coated zinc 40X40

S1101.AW0040

Finish

Black Coated

Size

40 x 40

h₁

9.0

h₂

5

h₃

10.0

l₁

40

l₂

25

w₁

40

w₂

25

d₁

M 5

d₂

4

90° Angled stress

1.85

Axial load F_x max. N

1.2

Axial stress kN

0.9

Radial load F_x max. N

1.0

Radial stress kN

1.7

£ 3.89 per unit (click for quantity discounts)

Surface Mount - Leaf Hinges Rear mount - zinc, 50X50, black coated

S1101.AW0050

Finish

Black Coated

Size

50 x 50

h₁

11.5

h₂

6

h₃

12.5

l₁

50

l₂

30

w₁

50

w₂

30

d₁

M 6

d₂

6

90° Angled stress

2.0

Axial load F_x max. N

1.3

Axial stress kN

2.05

Radial load F_x max. N

1.2

Radial stress kN

3.55

£ 5.03 per unit (click for quantity discounts)

Surface Mount - Leaf integrated stud mount - zinc

S1101.AW0057

Finish

Black Coated

Size

50 x 70

h₁

11.5

h₂

6

h₃

12.5

l₁

50

l₂

30

w₁

76

w₂

56

d₁

M 6

d₂

6

90° Angled stress

2.00

Axial load F_x max. N

1.2

Axial stress kN

1.5

Radial load F_x max. N

11.2

Radial stress kN

3.00

£ 8.08 per unit (click for quantity discounts)

Surface Mount - Leaf Hinges Surface Mount - Leaf Hingesrear mount - zinc60X60

S1101.AW0060

Finish

Black Coated

Size

60 x 60

h₁

15.0

h₂

8

h₃

16.5

l₁

60

l₂

36

w₁

60

w₂

36

d₁

M 6

d₂

8

90° Angled stress

2.55

Axial load F_x max. N

1.8

Axial stress kN

3.05

Radial load F_x max. N

1.5

Radial stress kN

4.05

£ 6.49 per unit (click for quantity discounts)

Surface Mount - Leaf integrated stud mount - zinc

S1101.AW0612

Finish

Black Coated

Size

60 x 120

h₁

15.0

h₂

8

h₃

16.5

l₁

60

l₂

36

w₁

120

w₂

88

d₁

M 8

d₂

8

90° Angled stress

1.5

Axial load F_x max. N

1.2

Axial stress kN

1.5

Radial load F_x max. N

1.12

Radial stress kN

4.5

£ 16.16 per unit (click for quantity discounts)

Surface Mount - Leaf Hinges rear mount - Chrome Finish zinc 40X40

S1101.AW0140

Finish

Chrome

Size

40 x 40

h₁

9.0

h₂

5

h₃

10.0

l₁

40

l₂

25

w₁

40

w₂

25

d₁

M 5

d₂

4

90° Angled stress

-

Axial load F_x max. N

-

Axial stress kN

-

Radial load F_x max. N

-

Radial stress kN

-

£ 1.87 per unit (click for quantity discounts)

Surface Mount Leaf Hinge - Die Cast Zinc chrome -50x50 - Equal - Rear - Rear

S1101.AW0150

Finish

Chrome

Size

50 x 50

h₁

11.5

h₂

6

h₃

12.5

l₁

50

l₂

30

w₁

50

w₂

30

d₁

M 6

d₂

6

90° Angled stress

-

Axial load F_x max. N

-

Axial stress kN

-

Radial load F_x max. N

-

Radial stress kN

-

£ 2.35 per unit (click for quantity discounts)

Surface Mount Leaf Hinge - Die Cast Zinc chrome - 3 - Equal - Rear - Rear

S1101.AW0160

Finish

Chrome

Size

60 x 60

h₁

15.0

h₂

8

h₃

16.5

l₁

60

l₂

36

w₁

60

w₂

36

d₁

M 8

d₂

8

90° Angled stress

-

Axial load F_x max. N

-

Axial stress kN

-

Radial load F_x max. N

-

Radial stress kN

-

£ 4.52 per unit (click for quantity discounts)



Select all

Finish

Size

h₁

h₂

h₃

l₁

l₂

w₁

w₂

d₁

d₂

90° Angled stress

Axial load F_x max. N

Axial stress kN

Radial load F_x max. N

Radial stress kN

Price & Availability	Article	Finish	Size	h1	h2	h3	l1	l2	w1	w2	d1	d2	90° Angled stress	Axial load Fx max. N	Axial stress kN	Radial load Fx max. N	Radial stress kN
	S1101.AW0040	Black Coated	40 x 40	9.0	5	10.0	40	25	40	25	M 5	4	1.85	1.2	0.9	1.0	1.7
£ 3.89 per unit (click for quantity discounts) Ready to despatch 198 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 3.89 0% 20-49 £ 3.50 10% 50-99 £ 3.31 15% 100-499 £ 2.92 25% 500+ £ 2.53 35% Finish Black Coated Size 40 x 40 h1 9.0 h2 5 h3 10.0 l1 40 l2 25 w1 40 w2 25 d1 M 5 d2 4 90° Angled stress 1.85 Axial load Fx max. N 1.2 Axial stress kN 0.9 Radial load Fx max. N 1.0 Radial stress kN 1.7 more info »
	S1101.AW0050	Black Coated	50 x 50	11.5	6	12.5	50	30	50	30	M 6	6	2.0	1.3	2.05	1.2	3.55
£ 5.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 5.03 0% 20-49 £ 4.53 10% 50-99 £ 4.28 15% 100-499 £ 3.77 25% 500+ £ 3.27 35% Finish Black Coated Size 50 x 50 h1 11.5 h2 6 h3 12.5 l1 50 l2 30 w1 50 w2 30 d1 M 6 d2 6 90° Angled stress 2.0 Axial load Fx max. N 1.3 Axial stress kN 2.05 Radial load Fx max. N 1.2 Radial stress kN 3.55 more info »
	S1101.AW0057	Black Coated	50 x 70	11.5	6	12.5	50	30	76	56	M 6	6	2.00	1.2	1.5	11.2	3.00
£ 8.08 per unit (click for quantity discounts) Ready to despatch 23 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 8.08 0% 20-49 £ 7.27 10% 50-99 £ 6.87 15% 100-499 £ 6.06 25% 500+ £ 5.25 35% Finish Black Coated Size 50 x 70 h1 11.5 h2 6 h3 12.5 l1 50 l2 30 w1 76 w2 56 d1 M 6 d2 6 90° Angled stress 2.00 Axial load Fx max. N 1.2 Axial stress kN 1.5 Radial load Fx max. N 11.2 Radial stress kN 3.00 more info »
	S1101.AW0060	Black Coated	60 x 60	15.0	8	16.5	60	36	60	36	M 6	8	2.55	1.8	3.05	1.5	4.05
£ 6.49 per unit (click for quantity discounts) Ready to despatch 345 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 6.49 0% 20-49 £ 5.84 10% 50-99 £ 5.52 15% 100-499 £ 4.87 25% 500+ £ 4.22 35% Finish Black Coated Size 60 x 60 h1 15.0 h2 8 h3 16.5 l1 60 l2 36 w1 60 w2 36 d1 M 6 d2 8 90° Angled stress 2.55 Axial load Fx max. N 1.8 Axial stress kN 3.05 Radial load Fx max. N 1.5 Radial stress kN 4.05 more info »
	S1101.AW0612	Black Coated	60 x 120	15.0	8	16.5	60	36	120	88	M 8	8	1.5	1.2	1.5	1.12	4.5
£ 16.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 16.16 0% 20-49 £ 14.54 10% 50-99 £ 13.74 15% 100-499 £ 12.12 25% 500+ £ 10.50 35% Finish Black Coated Size 60 x 120 h1 15.0 h2 8 h3 16.5 l1 60 l2 36 w1 120 w2 88 d1 M 8 d2 8 90° Angled stress 1.5 Axial load Fx max. N 1.2 Axial stress kN 1.5 Radial load Fx max. N 1.12 Radial stress kN 4.5 more info »
	S1101.AW0140	Chrome	40 x 40	9.0	5	10.0	40	25	40	25	M 5	4	-	-	-	-	-
£ 1.87 per unit (click for quantity discounts) Ready to despatch 100 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 1.87 0% 20-49 £ 1.68 10% 50-99 £ 1.59 15% 100-499 £ 1.40 25% 500+ £ 1.22 35% Finish Chrome Size 40 x 40 h1 9.0 h2 5 h3 10.0 l1 40 l2 25 w1 40 w2 25 d1 M 5 d2 4 90° Angled stress - Axial load Fx max. N - Axial stress kN - Radial load Fx max. N - Radial stress kN - more info »
	S1101.AW0150	Chrome	50 x 50	11.5	6	12.5	50	30	50	30	M 6	6	-	-	-	-	-
£ 2.35 per unit (click for quantity discounts) Ready to despatch 67 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 2.35 0% 20-49 £ 2.12 10% 50-99 £ 2.00 15% 100-499 £ 1.76 25% 500+ £ 1.53 35% Finish Chrome Size 50 x 50 h1 11.5 h2 6 h3 12.5 l1 50 l2 30 w1 50 w2 30 d1 M 6 d2 6 90° Angled stress - Axial load Fx max. N - Axial stress kN - Radial load Fx max. N - Radial stress kN - more info »
	S1101.AW0160	Chrome	60 x 60	15.0	8	16.5	60	36	60	36	M 8	8	-	-	-	-	-
£ 4.52 per unit (click for quantity discounts) Ready to despatch 113 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 4.52 0% 20-49 £ 4.07 10% 50-99 £ 3.84 15% 100-499 £ 3.39 25% 500+ £ 2.94 35% Finish Chrome Size 60 x 60 h1 15.0 h2 8 h3 16.5 l1 60 l2 36 w1 60 w2 36 d1 M 8 d2 8 90° Angled stress - Axial load Fx max. N - Axial stress kN - Radial load Fx max. N - Radial stress kN - more info »
