S1113 Surface Mount - Leaf Hinges

intergrated stud mount - zinc, material: Zinc

Download product datasheet

Alternative products you may wish to consider

Surface Mount - Piano
weld-on - s/s

Surface Mount - Piano
screw mount - s/s

Surface Mount - Pivot
inset - s/s

Surface Mount - Pivot
overlay - s/s

Surface Mount - Pivot
overlay - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
clean room - screw mount

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount
weld-on

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - zinc

Surface Mount - Leaf
screw mount - plastic

Surface Mount - Leaf
integrated stud mount - zinc

Surface Mount
intergrated stud mount

Surface Mount - Leaf
intg. stud mount - plastic

Surface Mount
intergrated stud mount

Surface Mount
screw mount

Surface Mount
integrated stud

Surface Mount
integrated stud mount

Surface Mount
intergrated stud & screw mount

Surface Mount
intergrated stud & screw mount

Surface Mount
bolt-on

Surface Mount
bolt-on

Surface Mount
axial adjustment

Surface Mount
axial adjustment

Surface Mount
screw mount

Surface Mount
screw mount

Corner Hinge
cut-out and locking screw

Corner Hinge
cut-out and integrated stud

Corner Hinge
cut out and counter sunk screw

Corner Hinge
cut out and countersunk screw

Corner Hinge
cutout and countersunk screw

Corner Hinge
cutout and clip fix

Corner Hinge
cutout and countersunk screw

Corner Hinge
Locking nut % recessed hexagon

Surface Mount
dble pivot - screw mount - s/s

Surface Mount
bolt-on

Surface Mount
bolt-on

Off-Set Mount Hinge
bolt-on

Flush Mount - Drop Lid
overlay - zinc

Flush Mount - Drop Lid
two pivot overlay - brass

Surface Mount
rear front mount

Surface Mount intergrated stud mount

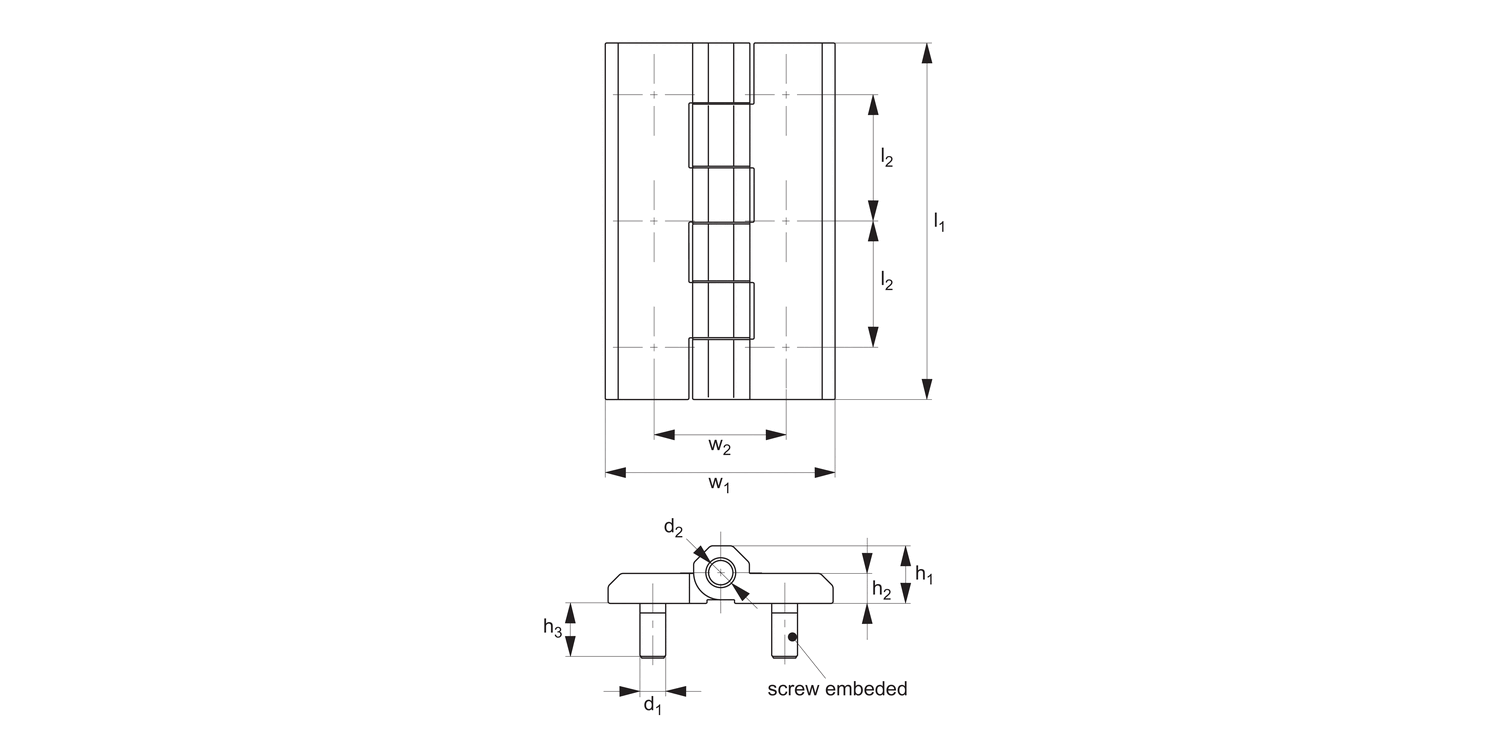

S1113.AW0010

Type

Left

h₁

15

h₂

8

h₃

14.5

l₁

90

l₂

32

w₁

60

w₂

36

F_x kN

1.12

F_y kN

1.2

d₁

M 8

d₂

8

£ 8.75 per unit (click for quantity discounts)

Surface Mount intergrated stud mount

S1113.AW0020

Type

Right

h₁

15

h₂

8

h₃

14.5

l₁

90

l₂

32

w₁

60

w₂

36

F_x kN

1.12

F_y kN

1.2

d₁

M 8

d₂

8

£ 8.75 per unit (click for quantity discounts)

Surface Mount intergrated stud mount

S1113.AW0010

Type

Left

h₁

15

h₂

8

h₃

14.5

l₁

90

l₂

32

w₁

60

w₂

36

F_x kN

1.12

F_y kN

1.2

d₁

M 8

d₂

8

£ 8.75 per unit (click for quantity discounts)

Surface Mount intergrated stud mount

S1113.AW0020

Type

Right

h₁

15

h₂

8

h₃

14.5

l₁

90

l₂

32

w₁

60

w₂

36

F_x kN

1.12

F_y kN

1.2

d₁

M 8

d₂

8

£ 8.75 per unit (click for quantity discounts)



Select all

Type

h₁

h₂

h₃

l₁

l₂

w₁

w₂

F_x kN

F_y kN

d₁

d₂

Price & Availability	Article	Type	h1	h2	h3	l1	l2	w1	w2	Fx kN	Fy kN	d1	d2
	S1113.AW0010	Left	15	8	14.5	90	32	60	36	1.12	1.2	M 8	8
£ 8.75 per unit (click for quantity discounts) Ready to despatch 56 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 8.75 0% 20-49 £ 7.88 10% 50-99 £ 7.44 15% 100-499 £ 6.56 25% 500+ £ 5.69 35% Type Left h1 15 h2 8 h3 14.5 l1 90 l2 32 w1 60 w2 36 Fx kN 1.12 Fy kN 1.2 d1 M 8 d2 8 more info »
	S1113.AW0020	Right	15	8	14.5	90	32	60	36	1.12	1.2	M 8	8
£ 8.75 per unit (click for quantity discounts) Ready to despatch 26 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 8.75 0% 20-49 £ 7.88 10% 50-99 £ 7.44 15% 100-499 £ 6.56 25% 500+ £ 5.69 35% Type Right h1 15 h2 8 h3 14.5 l1 90 l2 32 w1 60 w2 36 Fx kN 1.12 Fy kN 1.2 d1 M 8 d2 8 more info »
