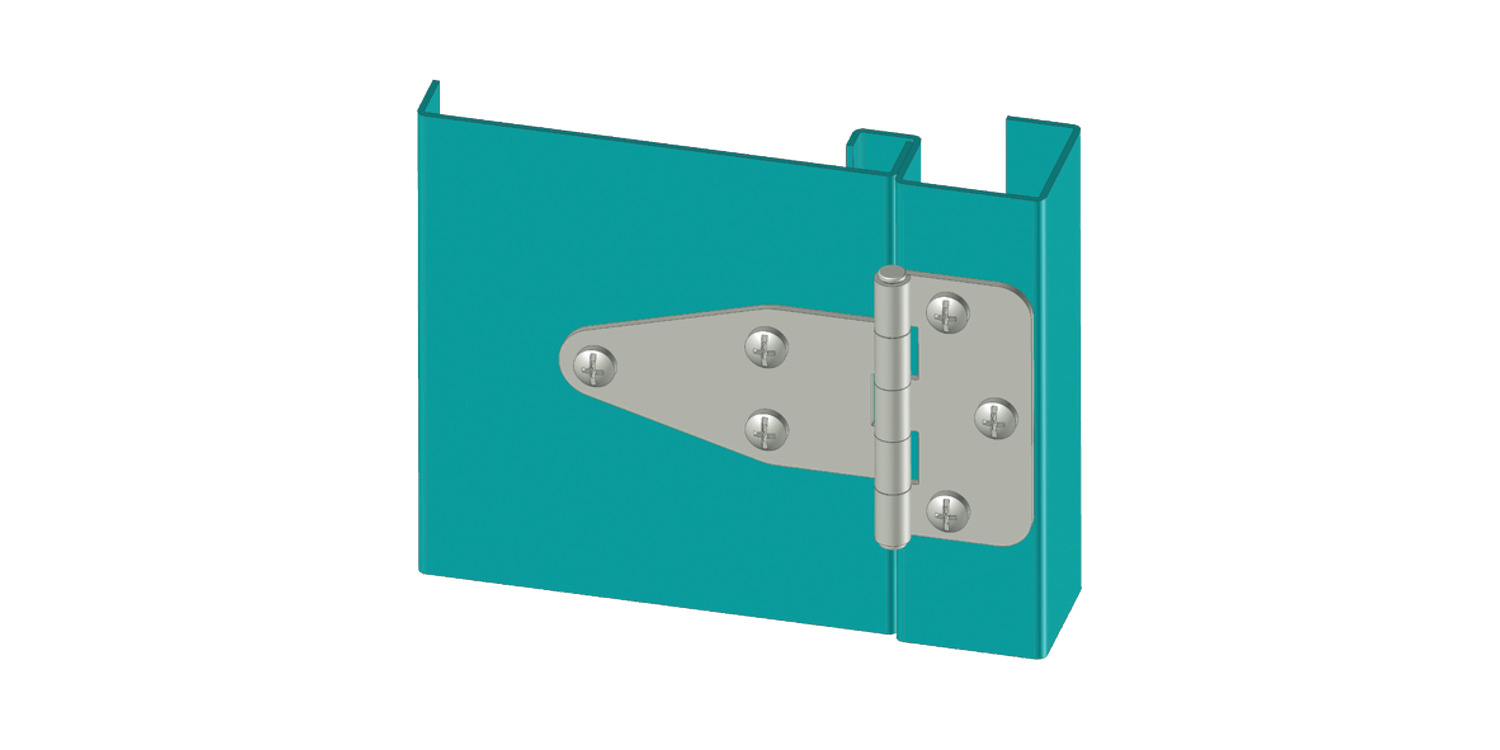

S0820 Surface Mount - Leaf Hinges

screw mount - stainless steel, material: Stainless steel

Download product datasheet
