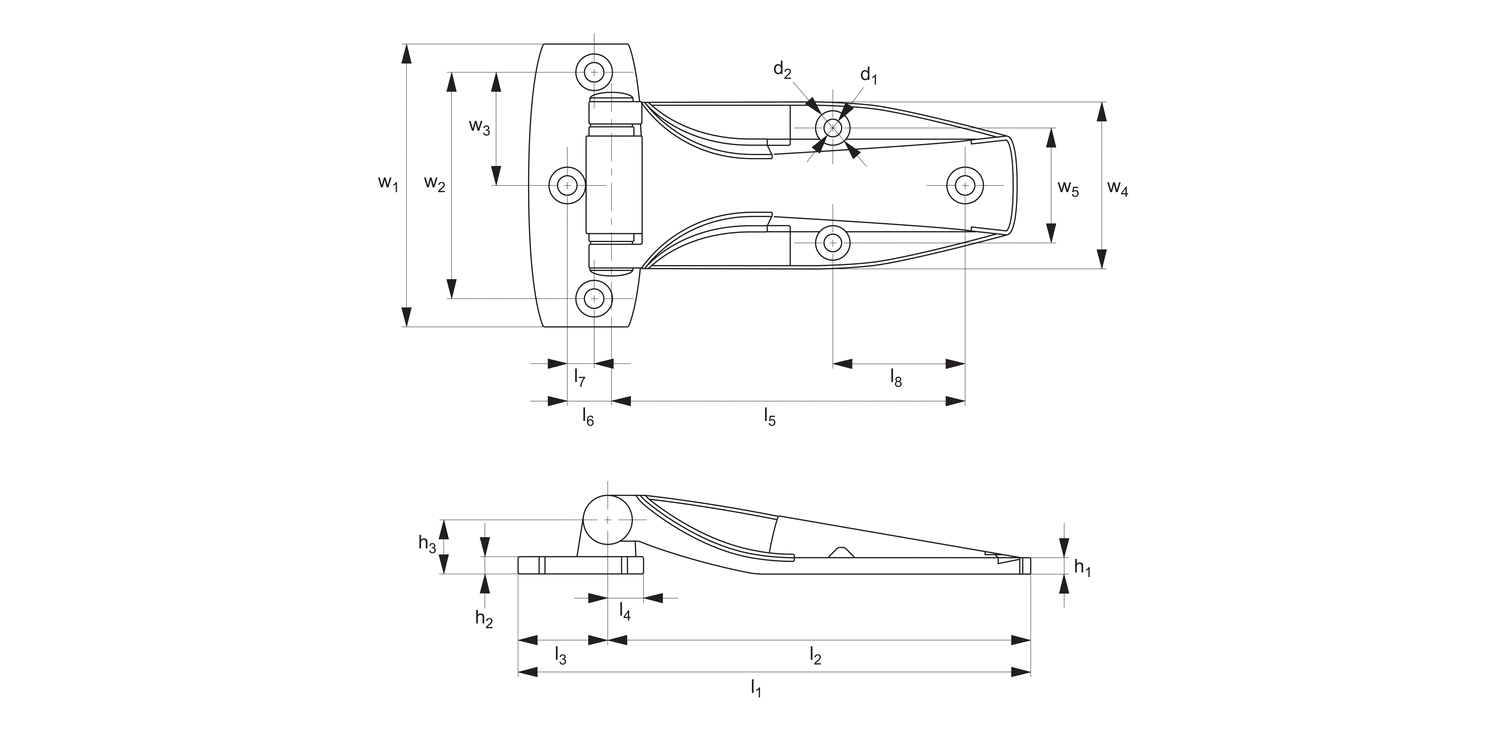

S0820 Surface Mount - Leaf Hinges

Name: S0820.AW0010
Brand: WC
SKU: S0820.AW0010
Price: 21.86 EUR
Availability: InStock

screw mount - stainless steel, material: Stainless steel

Article properties

Order No.

S0820.AW0010

h₁

4.5

h₂

h₃

15.2

l₁

141.8

l₂

116.8

l₃

l₄

l₅

102.4

l₆

l₇

8.2

l₈

37.9

w₁

w₂

w₃

w₄

w₅

33.5

F_x N

2170

d₁

5.2

d₂

10.5

See full product selection

£ 21.86 per unit (click for quantity discounts)

Ready to despatch 2
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 21.86	0%
20-49	£ 19.67	10%
50-99	£ 18.58	15%
100-499	£ 16.40	25%
500+	£ 14.21	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Hinge: stainless steel AISI 304, polished.

Technical Notes

Opening angle 135°.

Product Datasheets

S0820 Surface Mount - Leaf HingesJune 24, 2025, 3:37 PM / 1.62 MB

External HingesJune 24, 2025, 3:36 PM / 13.59 MB

HingesJune 24, 2025, 3:31 PM / 7.89 MB

Hinges & DampersJune 24, 2025, 3:32 PM / 10.40 MB

Access ComponentsJune 24, 2025, 3:32 PM / 32.33 MB

CAD files

S0820 StepApril 17, 2024, 10:22 AM / 234.19 kB
