S1921 Corner Hinge - 17mm Door Return
cut out and countersunk screw - zinc, material: Zinc
Alternative products you may wish to consider
Finish
Black coated
Door return
17
Fx
N
405
Fy
N
805
mc
min.
2
ts panel thickness
2.0
£ 4.08 per unit (click for quantity discounts)
Finish
Door return
Fx
N
Fy
N
mc
min.
ts panel thickness
| Price & Availability | Article | Finish | Door return | Fx N | Fy N | mc min. | ts panel thickness | ||||||||||||||||||
| S1921.AW0010 | Black coated | 17 | 405 | 805 | 2 | 2.0 | |||||||||||||||||||
£ 4.08 per unit (click for quantity discounts) Ready to despatch 57 Need more? Please call us.
Finish Black coated Door return 17 Fx
N 405 Fy
N 805 mc
min. 2 ts panel thickness 2.0 | |||||||||||||||||||||||||
Technical & Application
Material
Hinge: die cast zinc, black powder coated.
Pin: stainless steel AISI 304.
Technical Notes

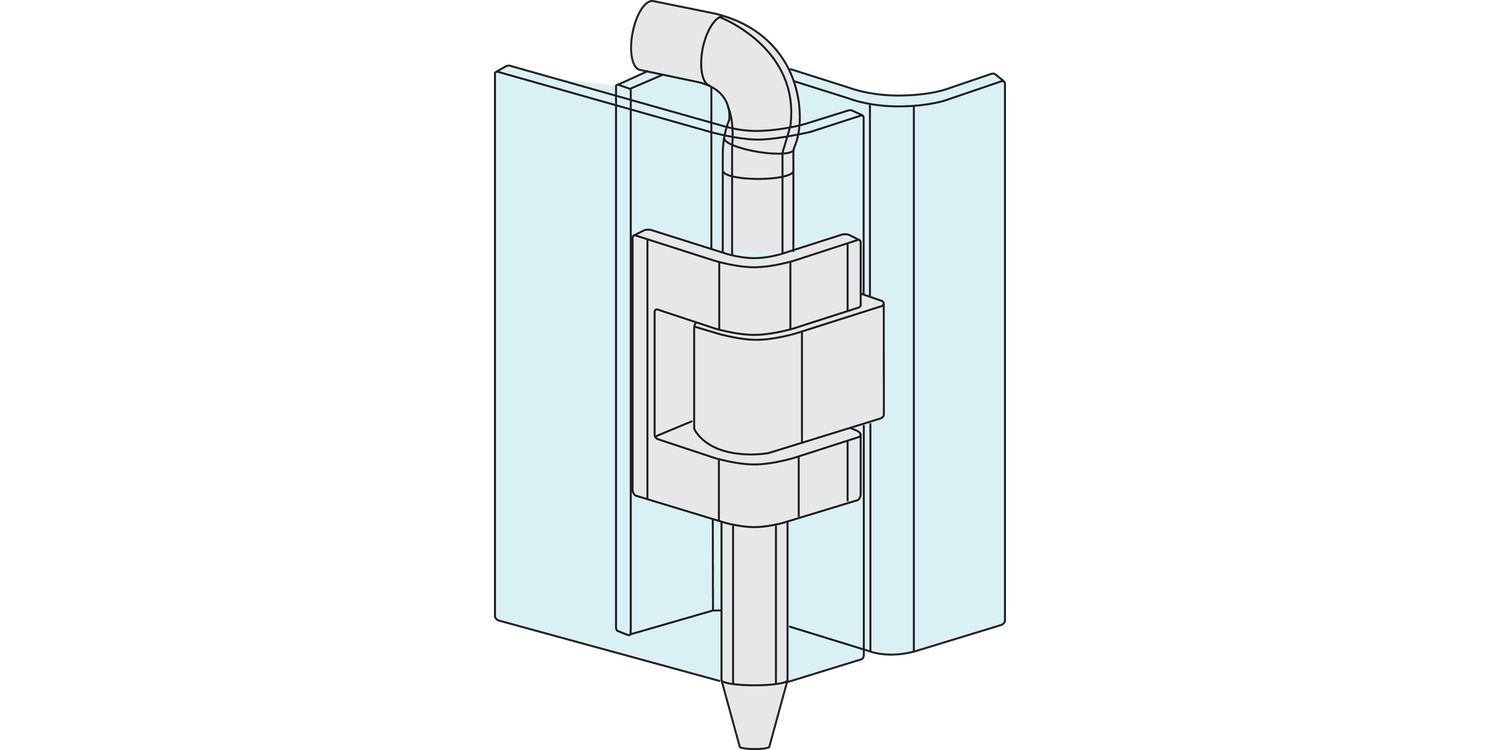

For sheet metal and machine enclosures with a 17mm door return, upto 2mm thick. For installation dimension see cut out detail.
Universal left or right hand opening doors. Max. opening angle 180°.
Tips
Mounting via M5 countersunk screws (not supplied).
Important Notes
dr= Maximum door return suitable for use with hinge.
mc= Minimum clearance advised between enclosure cover and body to ensure smooth, full opening of elclosure cover.
Product Datasheets
