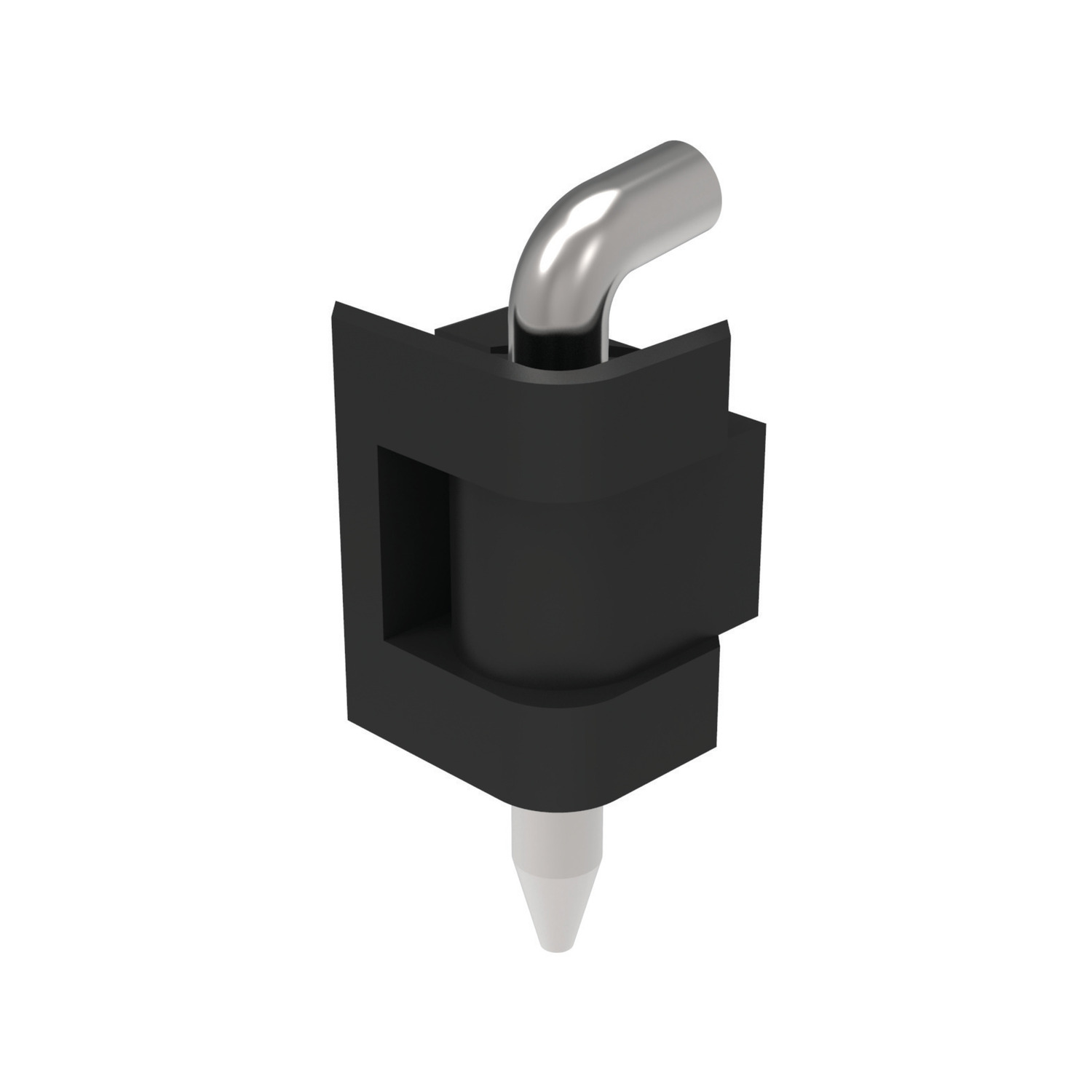

S1921 Corner Hinge - 17mm Door Return
cut out and countersunk screw - zinc, material: Zinc
Order No.
S1921.AW0010
Finish
Black coated
Door return
17
Fx
N
405
Fy
N
805
mc
min.
2
ts panel thickness
2.0
£ 4.24 per unit (click for quantity discounts)
Ready to despatch 57
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 4.24 | 0% |
| 20-49 | £ 3.82 | 10% |
| 50-99 | £ 3.60 | 15% |
| 100-499 | £ 3.18 | 25% |
| 500+ | £ 2.76 | 35% |
Technical & Application
Material
Hinge: die cast zinc, black powder coated.
Pin: stainless steel AISI 304.
Technical Notes

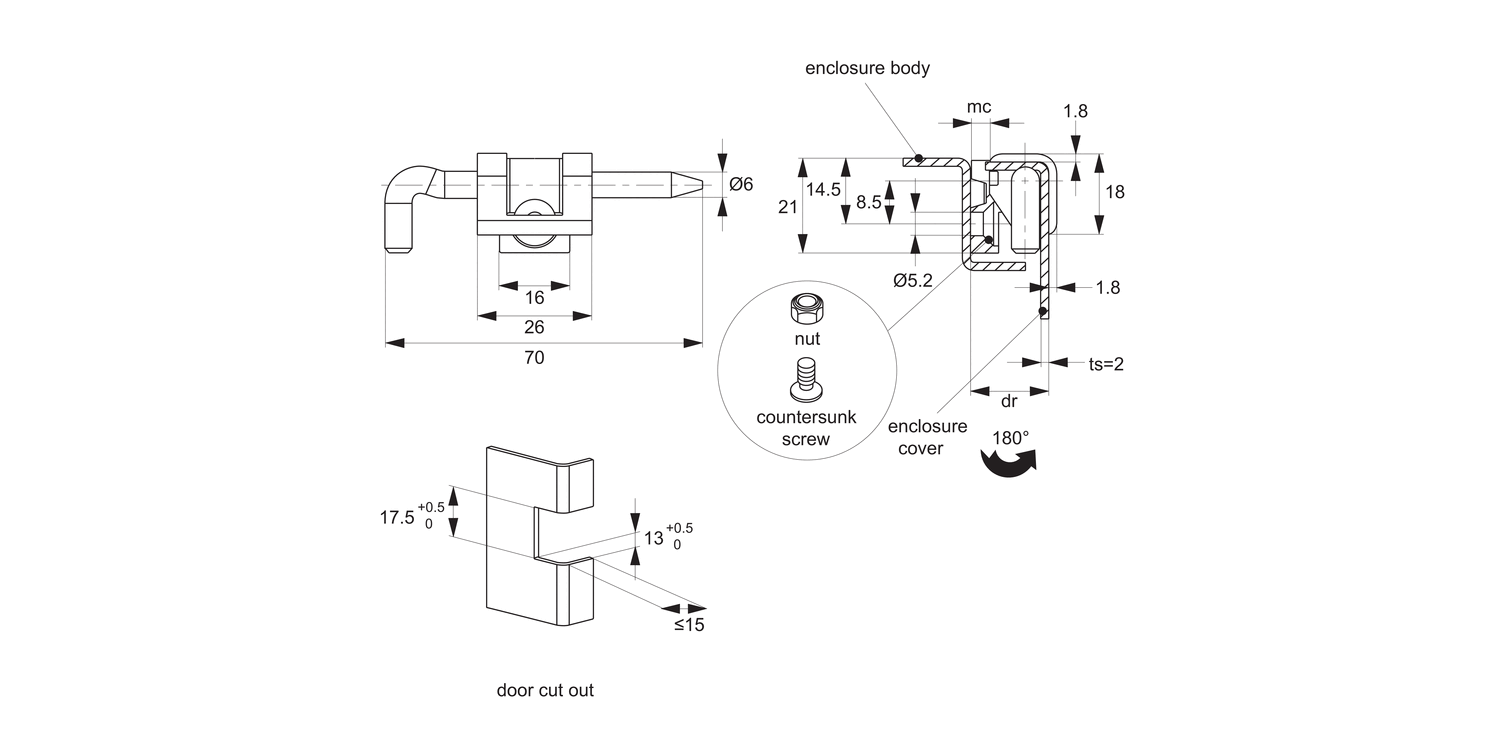

For sheet metal and machine enclosures with a 17mm door return, upto 2mm thick. For installation dimension see cut out detail.
Universal left or right hand opening doors. Max. opening angle 180°.
Tips
Mounting via M5 countersunk screws (not supplied).
Important Notes
dr= Maximum door return suitable for use with hinge.
mc= Minimum clearance advised between enclosure cover and body to ensure smooth, full opening of elclosure cover.
