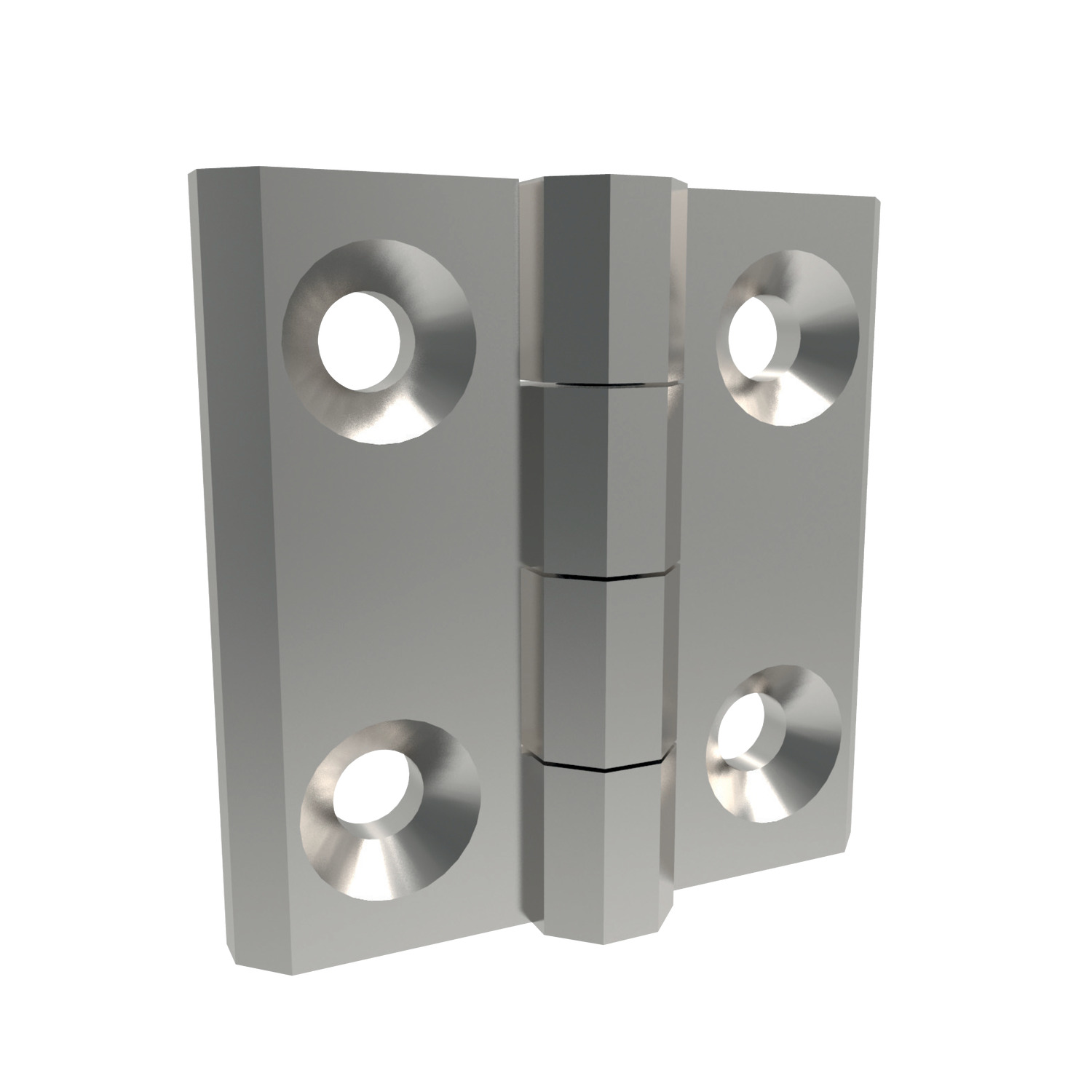

S0523 Surface Mount - Leaf Hinges
screw mount - stainless steel, material: Stainless steel
Alternative products you may wish to consider

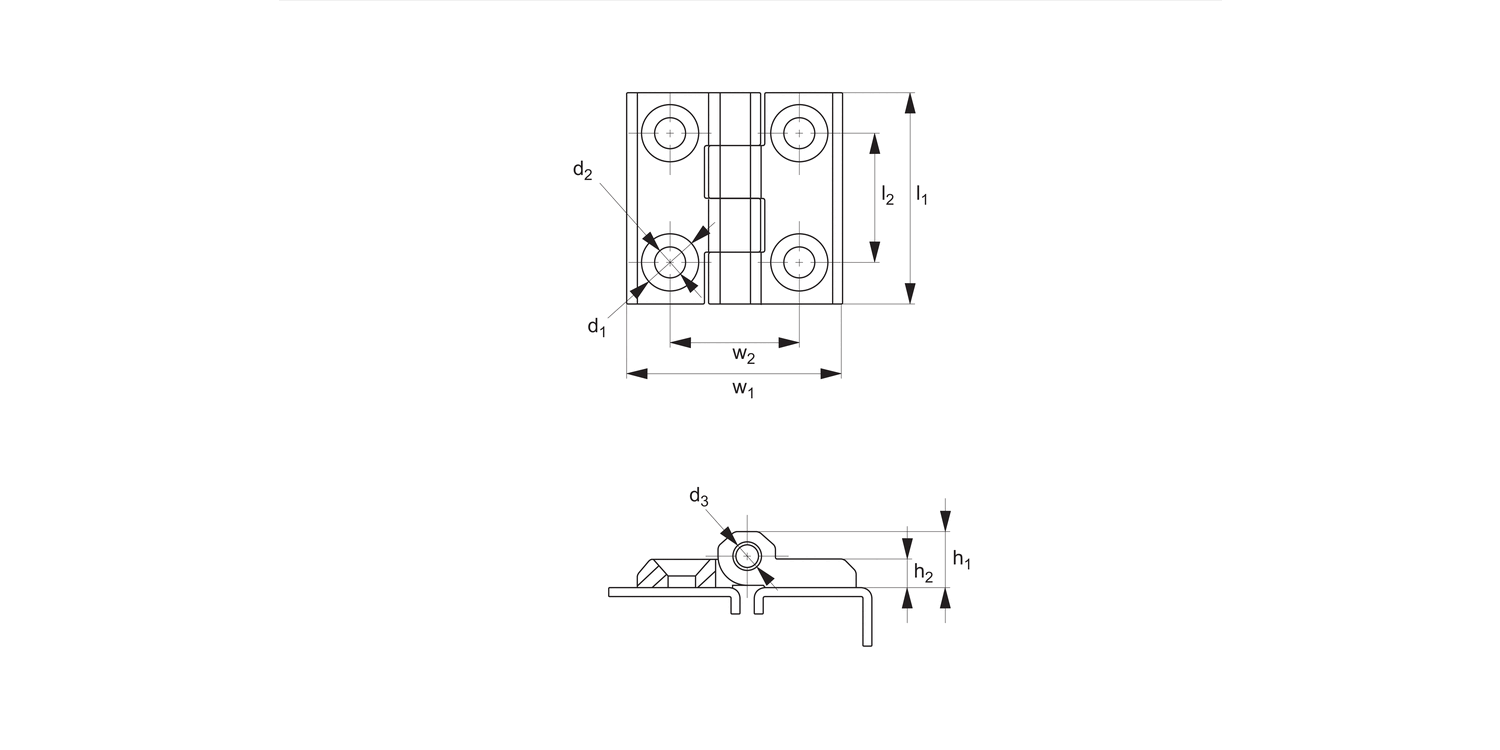

Size
40 x 40
h1
9.0
h2
5
l1
40
l2
25
w1
40
w2
25
d1
10.5
d2
5.3
d3
4
90° Angled stress
kN
2.00
Axial load Fx
max.
N
-
Axial stress
kN
1.45
Radial load Fx
max.
N
-
Radial stress
kN
2.1
£ 12.28 per unit (click for quantity discounts)
Size
50 x 50
h1
11.5
h2
6
l1
50
l2
30
w1
50
w2
30
d1
12.5
d2
6.3
d3
7
90° Angled stress
kN
2.45
Axial load Fx
max.
N
1.3
Axial stress
kN
2.10
Radial load Fx
max.
N
1.2
Radial stress
kN
3.5
£ 13.03 per unit (click for quantity discounts)
Size
60 x 60
h1
15.0
h2
8
l1
60
l2
36
w1
60
w2
36
d1
12.5
d2
8.4
d3
8
90° Angled stress
kN
4.40
Axial load Fx
max.
N
1.8
Axial stress
kN
3.20
Radial load Fx
max.
N
1.5
Radial stress
kN
6.0
£ 14.29 per unit (click for quantity discounts)
Size
h1
h2
l1
l2
w1
w2
d1
d2
d3
90° Angled stress
kN
Axial load Fx
max.
N
Axial stress
kN
Radial load Fx
max.
N
Radial stress
kN
| Price & Availability | Article | Size | h1 | h2 | l1 | l2 | w1 | w2 | d1 | d2 | d3 | 90° Angled stress kN | Axial load Fx max. N | Axial stress kN | Radial load Fx max. N | Radial stress kN | ||||||||||||||||||
| S0523.AW0040 | 40 x 40 | 9.0 | 5 | 40 | 25 | 40 | 25 | 10.5 | 5.3 | 4 | 2.00 | - | 1.45 | - | 2.1 | |||||||||||||||||||
£ 12.28 per unit (click for quantity discounts) Ready to despatch 51 Need more? Please call us.
Size 40 x 40 h1 9.0 h2 5 l1 40 l2 25 w1 40 w2 25 d1 10.5 d2 5.3 d3 4 90° Angled stress
kN 2.00 Axial load Fx
max.
N - Axial stress
kN 1.45 Radial load Fx
max.
N - Radial stress
kN 2.1 | ||||||||||||||||||||||||||||||||||
| S0523.AW0050 | 50 x 50 | 11.5 | 6 | 50 | 30 | 50 | 30 | 12.5 | 6.3 | 7 | 2.45 | 1.3 | 2.10 | 1.2 | 3.5 | |||||||||||||||||||
£ 13.03 per unit (click for quantity discounts) Ready to despatch 161 Need more? Please call us.
Size 50 x 50 h1 11.5 h2 6 l1 50 l2 30 w1 50 w2 30 d1 12.5 d2 6.3 d3 7 90° Angled stress
kN 2.45 Axial load Fx
max.
N 1.3 Axial stress
kN 2.10 Radial load Fx
max.
N 1.2 Radial stress
kN 3.5 | ||||||||||||||||||||||||||||||||||
| S0523.AW0060 | 60 x 60 | 15.0 | 8 | 60 | 36 | 60 | 36 | 12.5 | 8.4 | 8 | 4.40 | 1.8 | 3.20 | 1.5 | 6.0 | |||||||||||||||||||
£ 14.29 per unit (click for quantity discounts) Ready to despatch 51 Need more? Please call us.
Size 60 x 60 h1 15.0 h2 8 l1 60 l2 36 w1 60 w2 36 d1 12.5 d2 8.4 d3 8 90° Angled stress
kN 4.40 Axial load Fx
max.
N 1.8 Axial stress
kN 3.20 Radial load Fx
max.
N 1.5 Radial stress
kN 6.0 | ||||||||||||||||||||||||||||||||||
Technical & Application
Material
Stainless steel, AISI 304.
Technical Notes
For plain/flush mounted doors, as well as electrical panels and covers.
Opening angle 180°.
