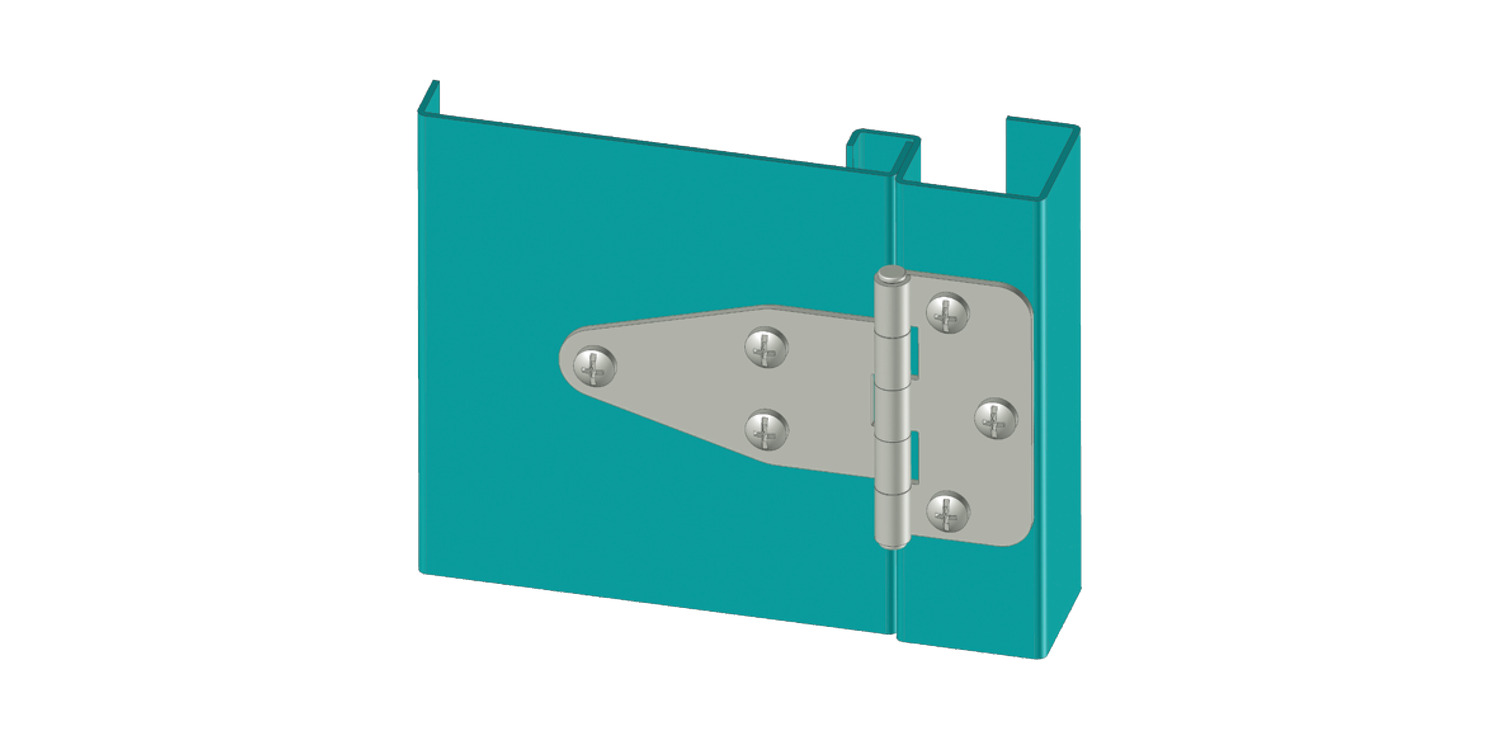

S0818 Surface Mount - Leaf Hinges

screw mount - stainless steel, material: Stainless steel

Download product datasheet

Alternative products you may wish to consider

Surface Mount - Piano
weld-on - s/s

Surface Mount - Piano
screw mount - s/s

Surface Mount - Pivot
inset - s/s

Surface Mount - Pivot
overlay - s/s

Surface Mount - Pivot
overlay - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
clean room - screw mount

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount - Leaf
screw mount - s/s

Surface Mount
weld-on

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount
screw mount

Surface Mount - Leaf Hinges
screw mount - s/s

Surface Mount - Leaf Hinges
screw mount - zinc

Surface Mount - Leaf
screw mount - plastic

integrated stud mount - zinc

Surface Mount
intergrated stud mount

Surface Mount - Leaf
intg. stud mount - plastic

Surface Mount
intergrated stud mount

Surface Mount
screw mount

Surface Mount
integrated stud

Surface Mount
integrated stud mount

Surface Mount
intergrated stud & screw mount

Surface Mount
intergrated stud & screw mount

Surface Mount
bolt-on

Surface Mount
bolt-on

Surface Mount
axial adjustment

Surface Mount
axial adjustment

Surface Mount
screw mount

Surface Mount
screw mount

Corner Hinge
cut-out and locking screw

Corner Hinge
cut-out and integrated stud

Corner Hinge
cut out and counter sunk screw

Corner Hinge
cut out and countersunk screw

Corner Hinge
cutout and countersunk screw

Corner Hinge
cutout and clip fix

Corner Hinge
cutout and countersunk screw

Corner Hinge
Locking nut % recessed hexagon

Surface Mount
dble pivot - screw mount - s/s

Surface Mount
bolt-on

Surface Mount
bolt-on

Off-Set Mount Hinge
bolt-on

Flush Mount - Drop Lid
overlay - zinc

Flush Mount - Drop Lid
two pivot overlay - brass

Surface Mount
rear front mount

Surface Mount screw mount

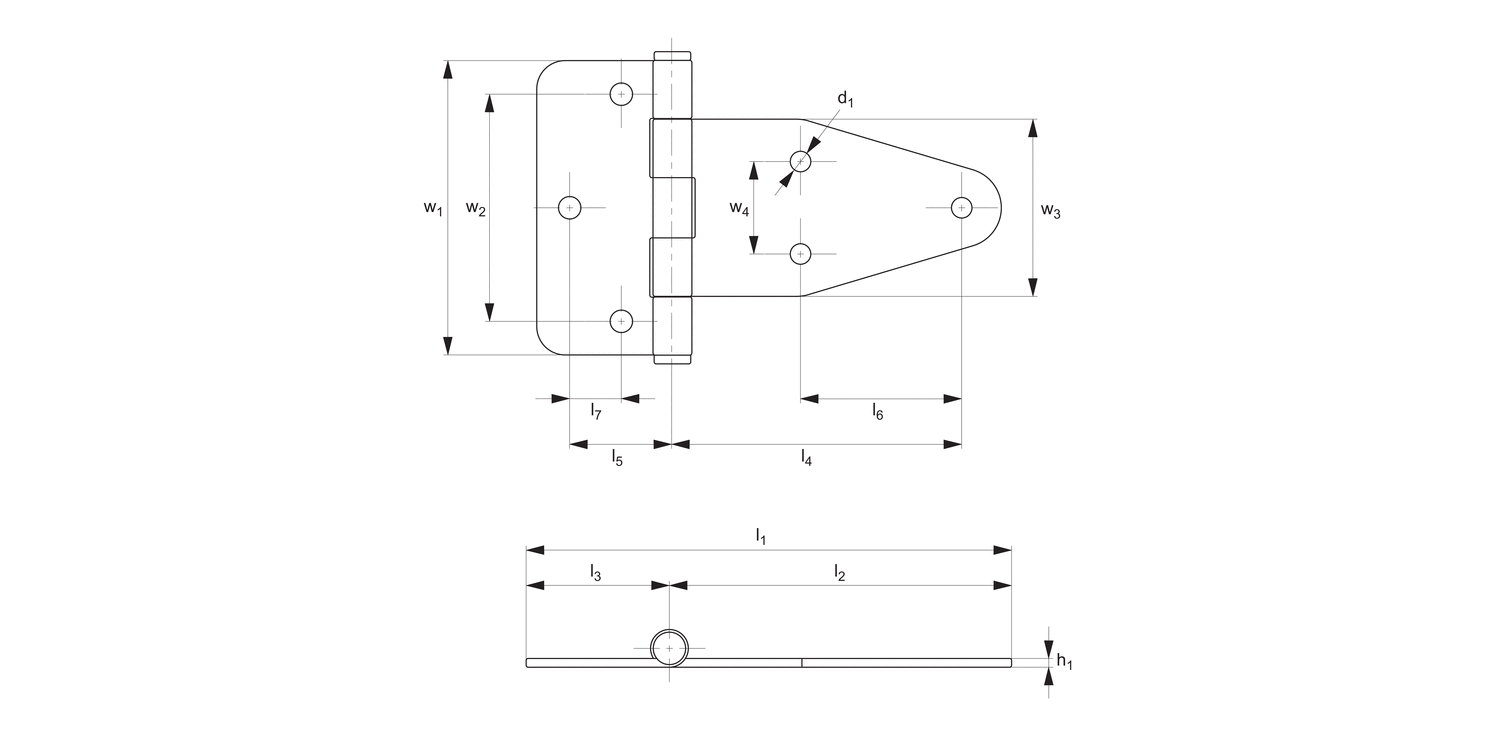

S0818.AW0010

h₁

2.5

l₁

137

l₂

97

l₃

40

l₄

85.5

l₅

30

l₆

48

l₇

15

w₁

85

w₂

65

w₃

57

F_x N

750

F_y N

850

d₁

6.5

£ 12.29 per unit (click for quantity discounts)

Surface Mount screw mount

S0818.AW0010

h₁

2.5

l₁

137

l₂

97

l₃

40

l₄

85.5

l₅

30

l₆

48

l₇

15

w₁

85

w₂

65

w₃

57

F_x N

750

F_y N

850

d₁

6.5

£ 12.29 per unit (click for quantity discounts)



Select all

h₁

l₁

l₂

l₃

l₄

l₅

l₆

l₇

w₁

w₂

w₃

F_x N

F_y N

d₁

Price & Availability	Article	h1	l1	l2	l3	l4	l5	l6	l7	w1	w2	w3	Fx N	Fy N	d1
	S0818.AW0010	2.5	137	97	40	85.5	30	48	15	85	65	57	750	850	6.5
£ 12.29 per unit (click for quantity discounts) Ready to despatch 87 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 12.29 0% 20-49 £ 11.06 10% 50-99 £ 10.45 15% 100-499 £ 9.22 25% 500+ £ 7.99 35% h1 2.5 l1 137 l2 97 l3 40 l4 85.5 l5 30 l6 48 l7 15 w1 85 w2 65 w3 57 Fx N 750 Fy N 850 d1 6.5 more info »
