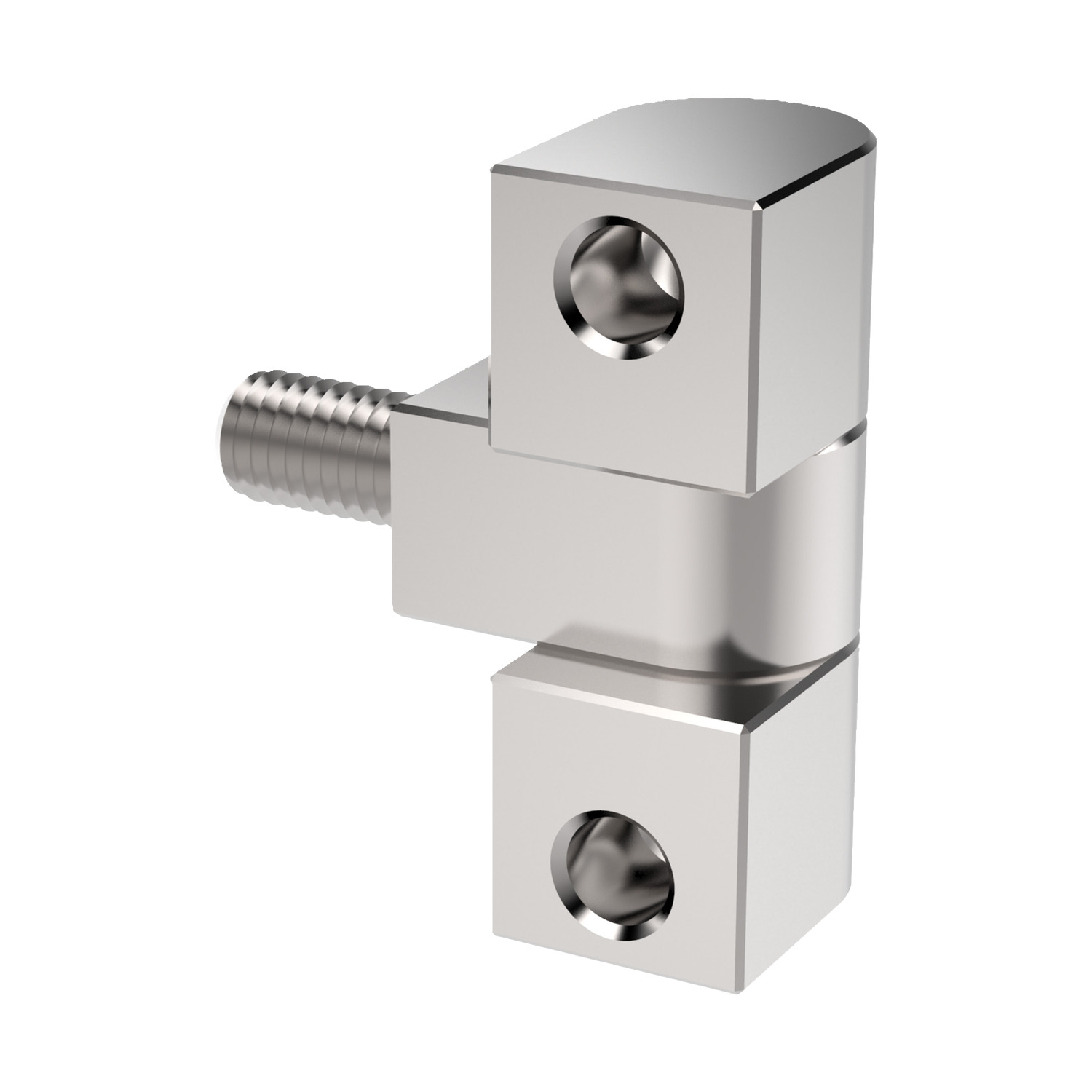

S1170 Surface Mount - In-Line Hinges

Name: S1170.AW0020
Brand: WC
SKU: S1170.AW0020
Price: 5.22 EUR
Availability: InStock

integrated stud mount - steel, material: Steel

Article properties

Order No.

S1170.AW0020

Finish

Black Coated

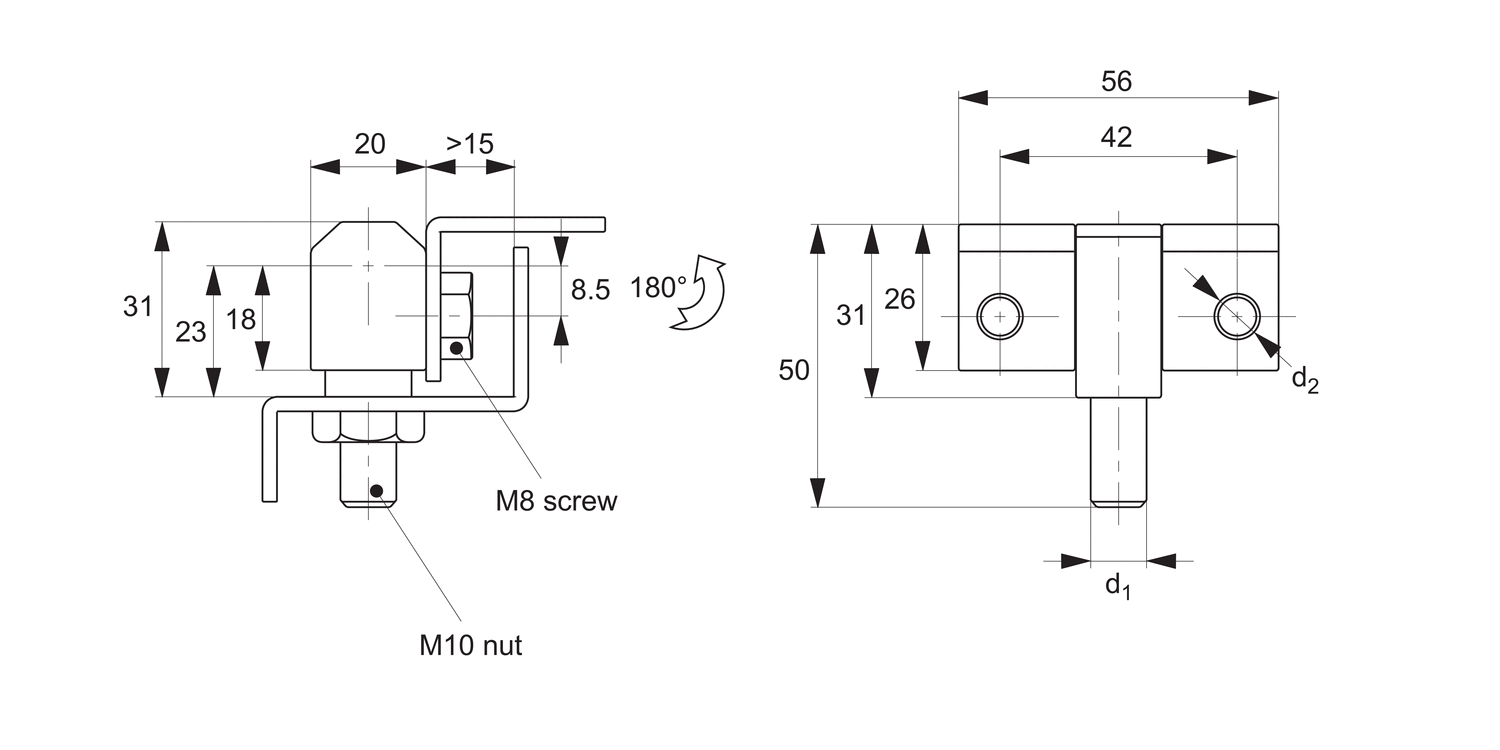

F_x kN

2.5

F_y kN

1.785

d₁

M10

d₂

M 8

See full product selection

£ 5.22 per unit (click for quantity discounts)

Ready to despatch 59
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 5.22	0%
20-49	£ 4.70	10%
50-99	£ 4.44	15%
100-499	£ 3.92	25%
500+	£ 3.39	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel, bright chrome plated.

Technical Notes

Opening angle 180°. Side mounting hinges, for electrical covers and panels. Mounted via M8 screws (not supplied).

Product Datasheets

S1170 Surface Mount - In-Line HingesJune 24, 2025, 3:37 PM / 1.67 MB

External HingesJune 24, 2025, 3:36 PM / 13.59 MB

HingesJune 24, 2025, 3:31 PM / 7.89 MB

Hinges & DampersJune 24, 2025, 3:32 PM / 10.40 MB

Access ComponentsJune 24, 2025, 3:32 PM / 32.33 MB

CAD files

S1170 AcisApril 17, 2024, 10:22 AM / 71.71 kB

S1170 IGESApril 17, 2024, 10:22 AM / 179.03 kB

S1170 ParasolidApril 17, 2024, 10:22 AM / 61.68 kB

S1170 ProEApril 17, 2024, 10:22 AM / 408.05 kB

S1170 SolidWorksApril 17, 2024, 10:22 AM / 351.16 kB

S1170 StepApril 17, 2024, 10:22 AM / 112.34 kB
