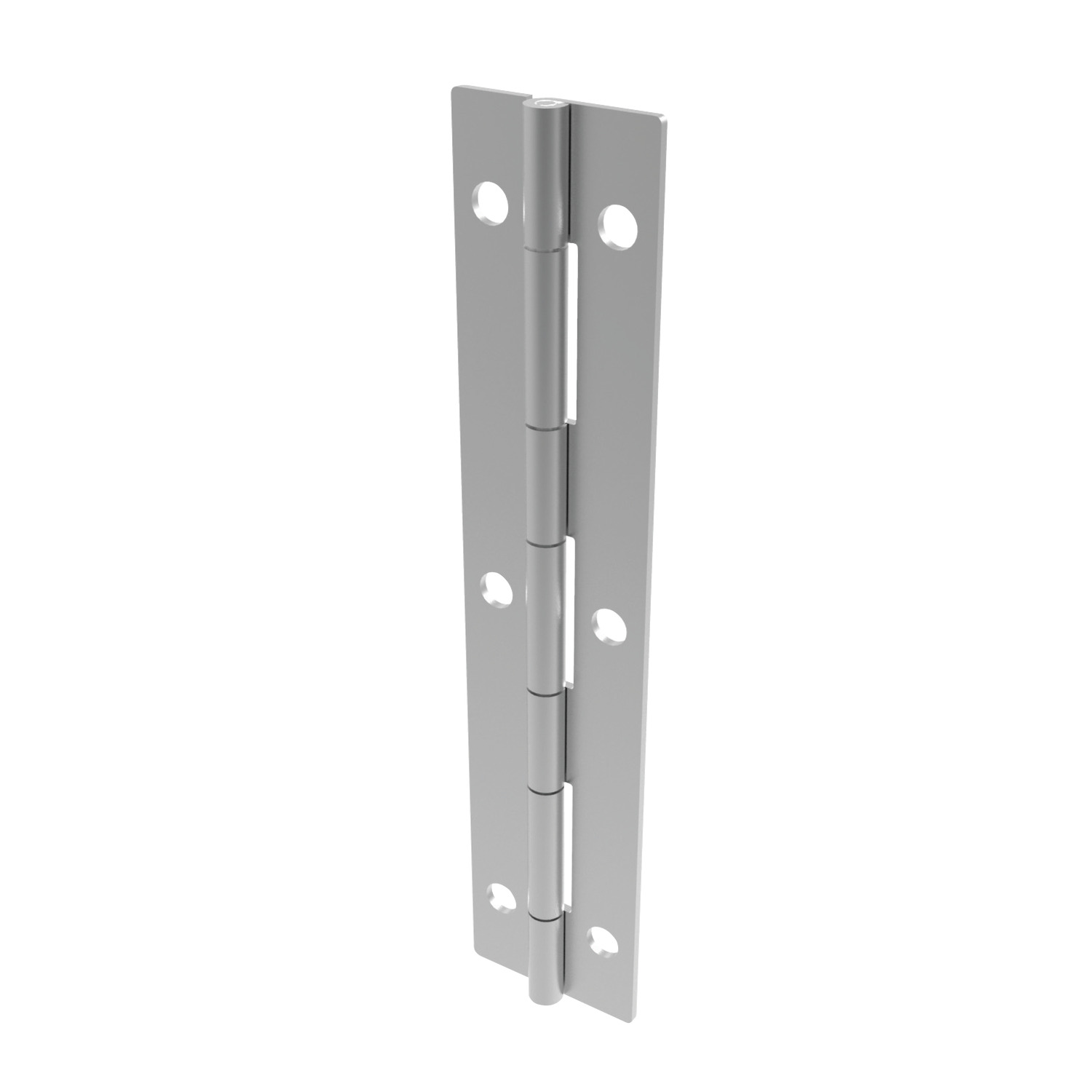

S0742 Surface Mount - Leaf Hinges

Name: S0742.AW0150
Brand: WC
SKU: S0742.AW0150
Price: 3.85 EUR
Availability: InStock

screw mount - steel, material: Steel

Article properties

Order No.

S0742.AW0150

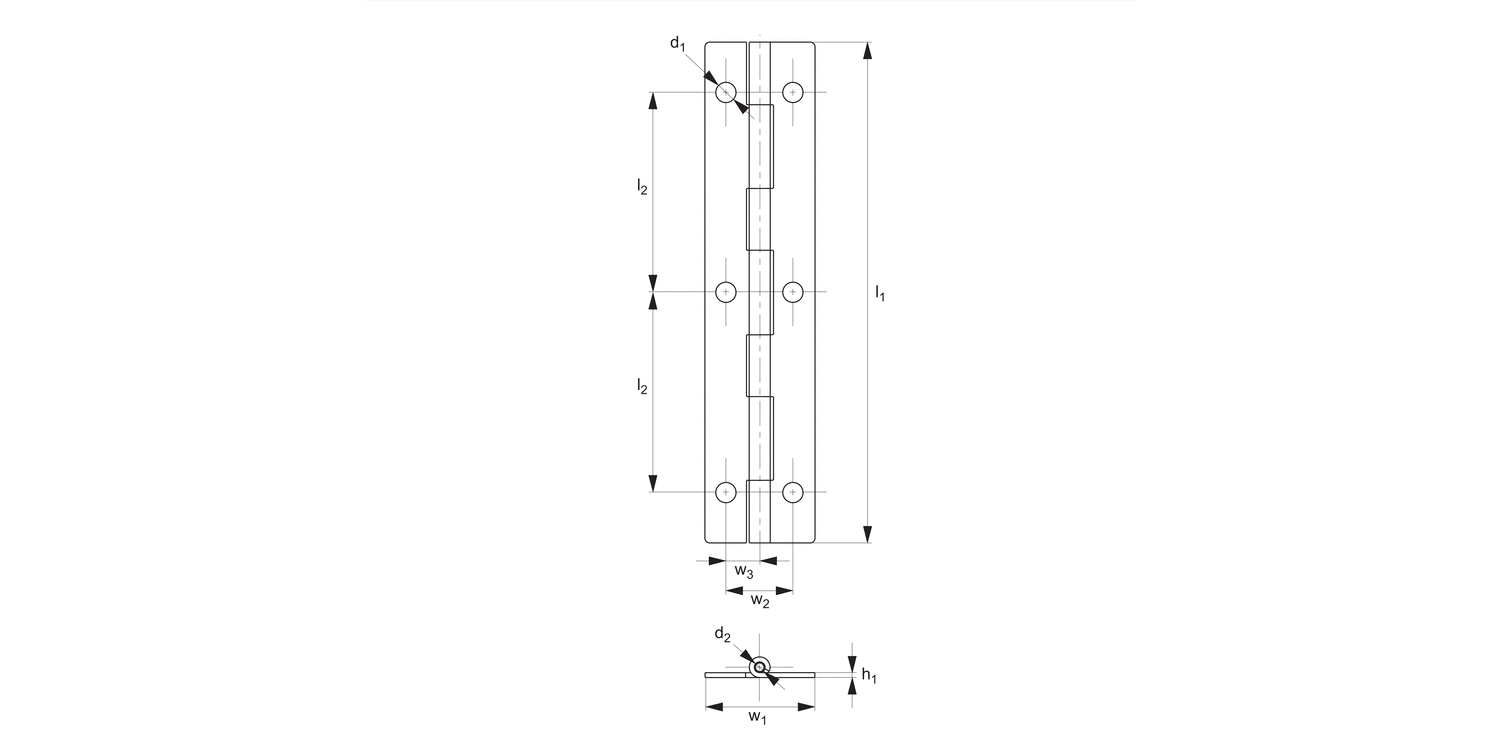

h₁

1.5

l₁

150

l₂

w₁

w₂

w₃

F_x N

840

F_y N

1380

d₁

d₂

3.5

See full product selection

£ 3.85 per unit (click for quantity discounts)

Ready to despatch 16
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 3.85	0%
20-49	£ 3.47	10%
50-99	£ 3.27	15%
100-499	£ 2.89	25%
500+	£ 2.50	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Hinge: steel, zinc plated

Technical Notes

Opening angle 180°.

Product Datasheets

S0742 Surface Mount - Leaf HingesJune 24, 2025, 3:37 PM / 1.58 MB
