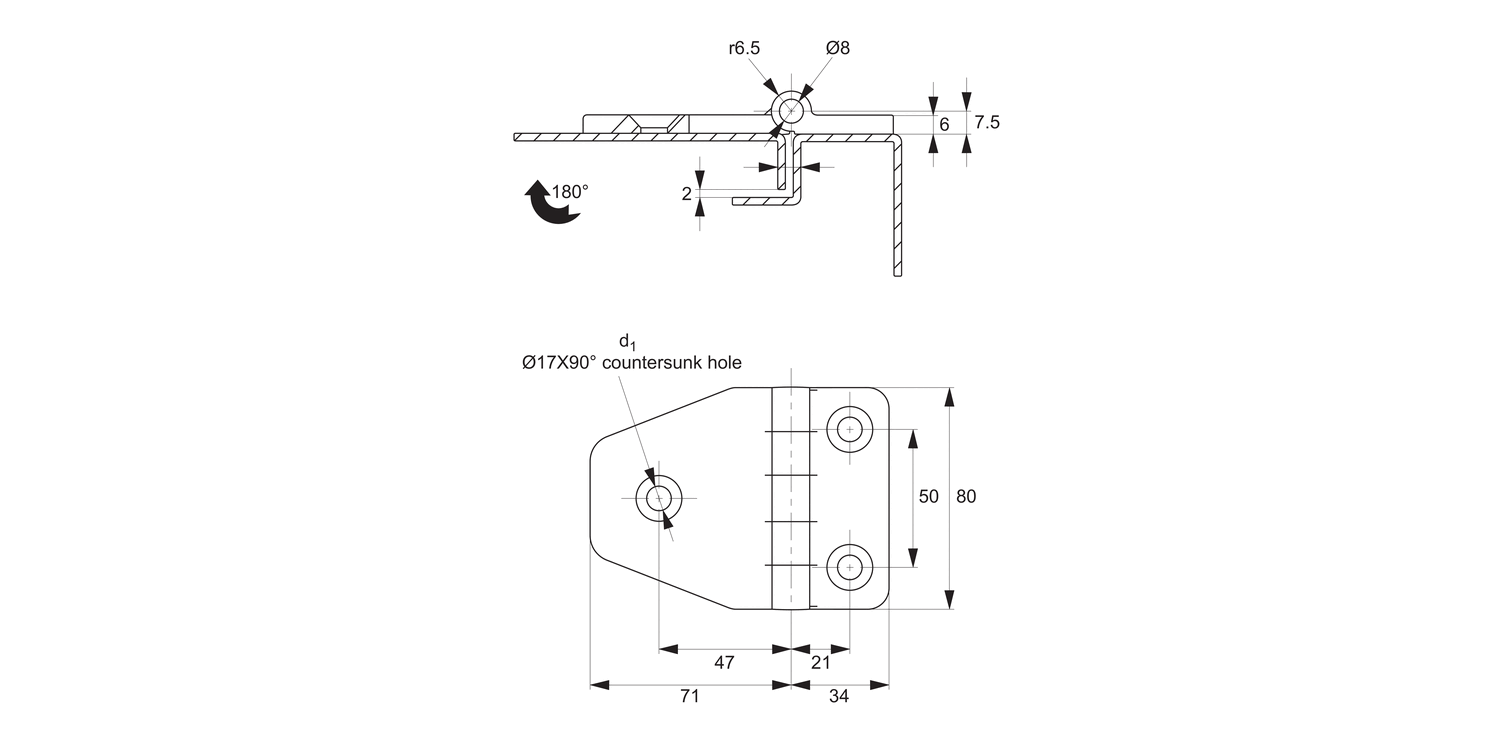

S1828 Surface Mount - HVAC Applications

Name: S1828.AW0080
Brand: WC
SKU: S1828.AW0080
Price: 4.01 EUR
Availability: OutOfStock

screw mount - polyamide, material: Polyamide

Article properties

Order No.

S1828.AW0080

Finish

Black plastic

Size

80 x 105

F_x N

800

F_y N

600

d₁

Opening angle °

180°

See full product selection

£ 4.01 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 4.01	0%
20-49	£ 3.61	10%
50-99	£ 3.41	15%
100-499	£ 3.01	25%
500+	£ 2.61	35%

Download product datasheet

Technical & Application

Material

Polyamide plastic (PA), black.
Pin: steel, zinc plated.

Technical Notes

Opening angle 180°. Ideal for heating and ventilation apps, for use on flat panels and covers. Mounting via M8 screws (not supplied).

Product Datasheets

S1828 Surface Mount - HVAC ApplicationsJune 24, 2025, 3:37 PM / 1.67 MB

External HingesJune 24, 2025, 3:36 PM / 13.59 MB

HingesJune 24, 2025, 3:31 PM / 7.89 MB

Hinges & DampersJune 24, 2025, 3:32 PM / 10.40 MB

Access ComponentsJune 24, 2025, 3:32 PM / 32.33 MB
