External Hinges
HomeProductsAccess ComponentsHinges & DampersHingesExternal HingesS1941S1941.AW0010

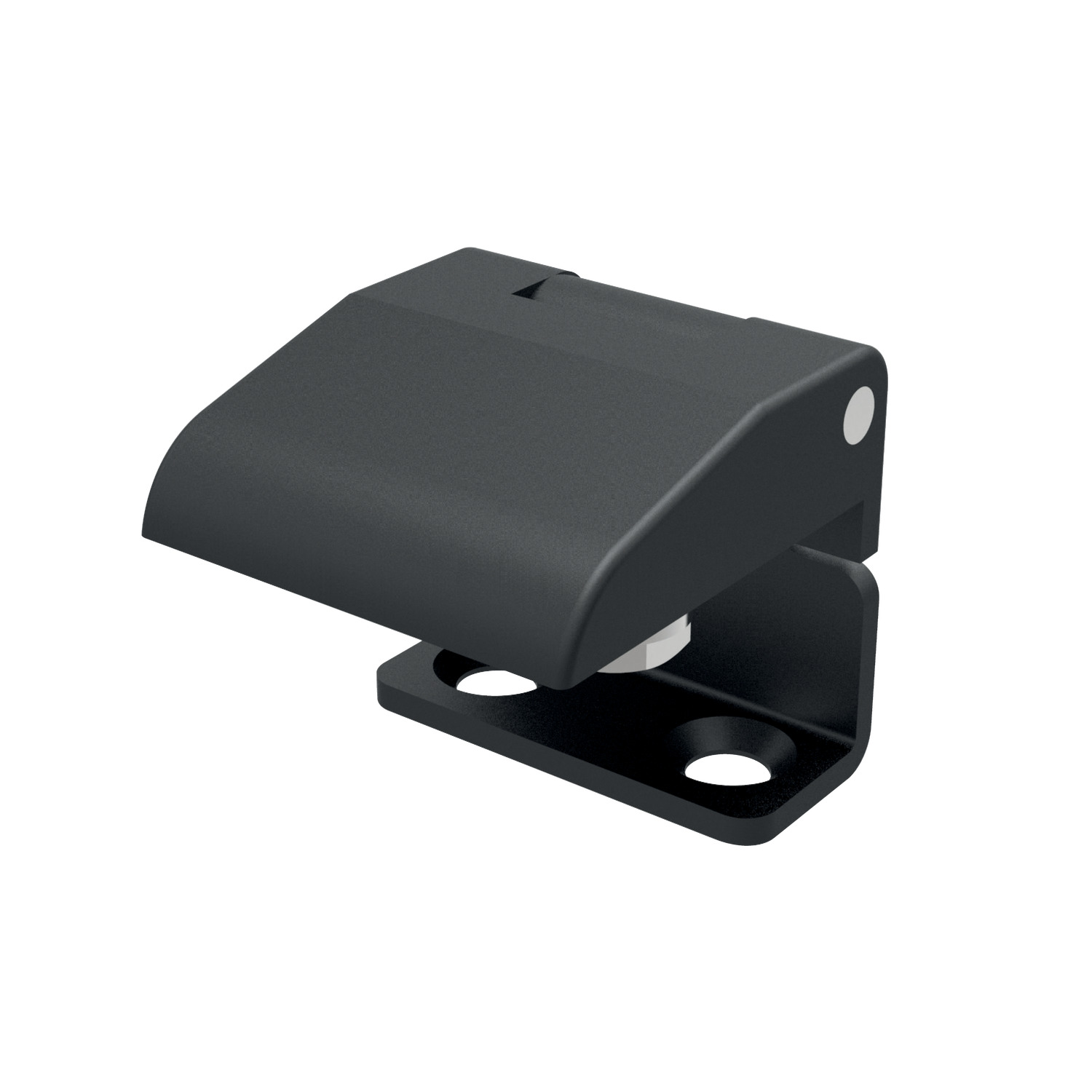

S1941 Corner Hinge 25,5mm Door Return

cut out and countersunk screw - zinc, material: Steel
S1941 Corner Hinge 25,5mm Door Return
S1941 Corner Hinge 25,5mm Door Return
Article properties
Order No.
S1941.AW0010
Finish
Black Coated
Door return
25.5
h1
32
w1
5.6
Fx N
300
Fy N
250
mc min.
4
ts panel thickness
2
See full product selection
£ 3.94 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Buy more & save with our quantity discounts
UnitsPrice/unit
after discount		Applied
Discount
1-19£ 3.940%
20-49£ 3.5510%
50-99£ 3.3515%
100-499£ 2.9625%
500+£ 2.5635%
Download product datasheet
Download FREE CAD

Technical & Application

Material

Door-part: die cast zinc, black coated.
Frame-part and pin: steel, black coated.

Technical Notes

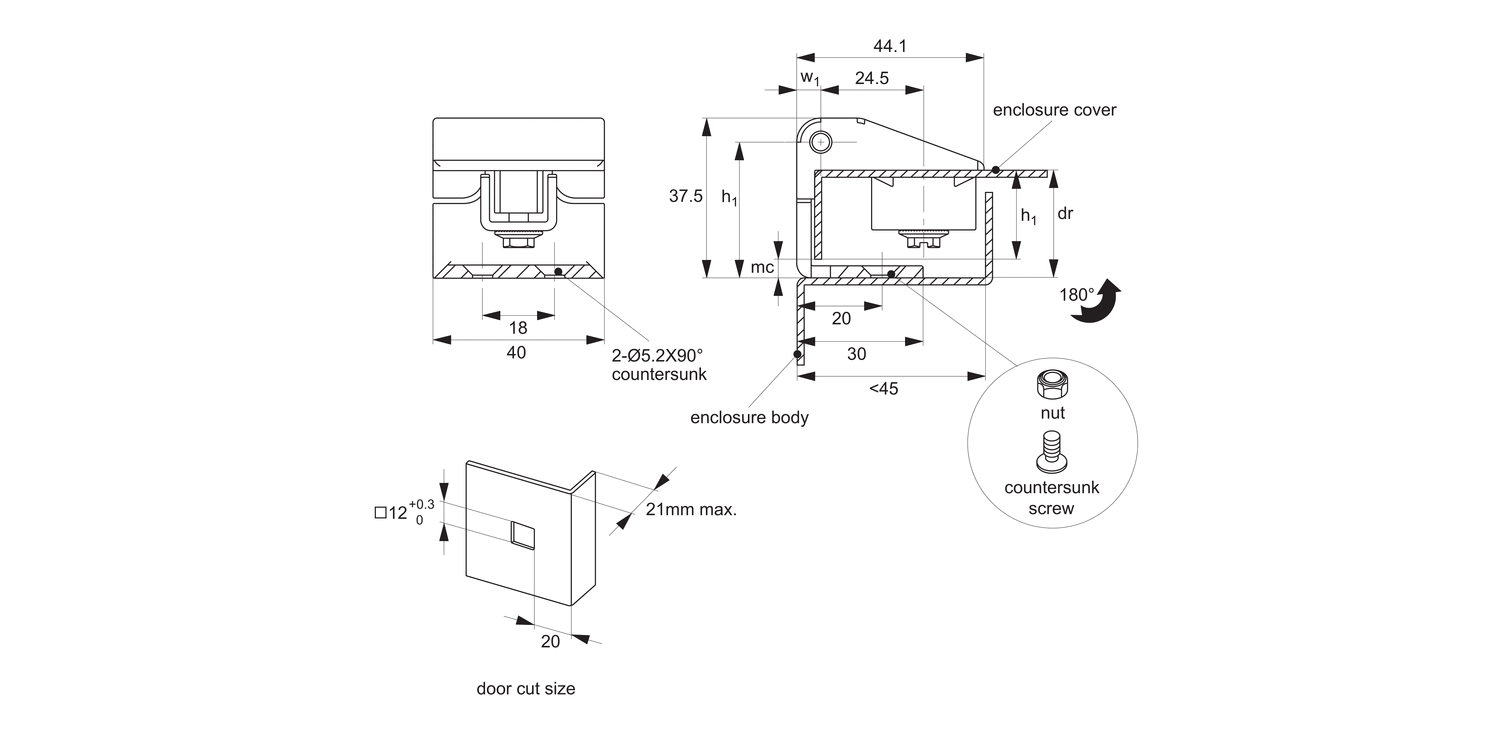

For sheet metal and machine enclosures with a 25,5mm door return, up to 2mm thick. For installation dimension see cut. Universal left or right hand opening doors. Max. opening angle 180°.

Tips

Mounting via M5 countersunk screws (not supplied), and support bracket (supplied)

Important Notes

dr= Maximum door return suitable for use with hinge.
mc= Minimum clearance advised between enclosure cover and body to ensure smooth, full opening of enclosure cover.

Product Datasheets

S1941 Corner Hinge 25,5mm Door ReturnJune 24, 2025, 3:37 PM / 489.93 kB
External HingesJune 24, 2025, 3:36 PM / 13.59 MB
HingesJune 24, 2025, 3:31 PM / 7.89 MB
Hinges & DampersJune 24, 2025, 3:32 PM / 10.40 MB
Access ComponentsJune 24, 2025, 3:32 PM / 32.33 MB

CAD files

S1941 AcisApril 17, 2024, 10:22 AM / 146.54 kB
S1941 IGESApril 17, 2024, 10:22 AM / 269.68 kB
S1941 ParasolidApril 17, 2024, 10:22 AM / 91.43 kB
S1941 ProEApril 17, 2024, 10:22 AM / 538.30 kB
S1941 SolidWorksApril 17, 2024, 10:22 AM / 409.00 kB
S1941 StepApril 17, 2024, 10:22 AM / 142.65 kB

Application images

s1941 application images
