Surface Mount - Piano
weld-on - s/s
S1942 Corner Hinge - 25mm Door Return
Locking nut and recessed hexagon - zinc, material: Zinc
Order No.
S1942.AW010
Finish
Black Coated
Door return
25
a
5.6
b
32
Fx
N
980
Fy
N
630
mc
min.
5
ts panel thickness
2
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1+ | - |
Technical & Application
Material
Hinge: die cast zinc, black powder coated.
Pin: steel, black-plated.
Bearing washer: brass.
Technical Notes

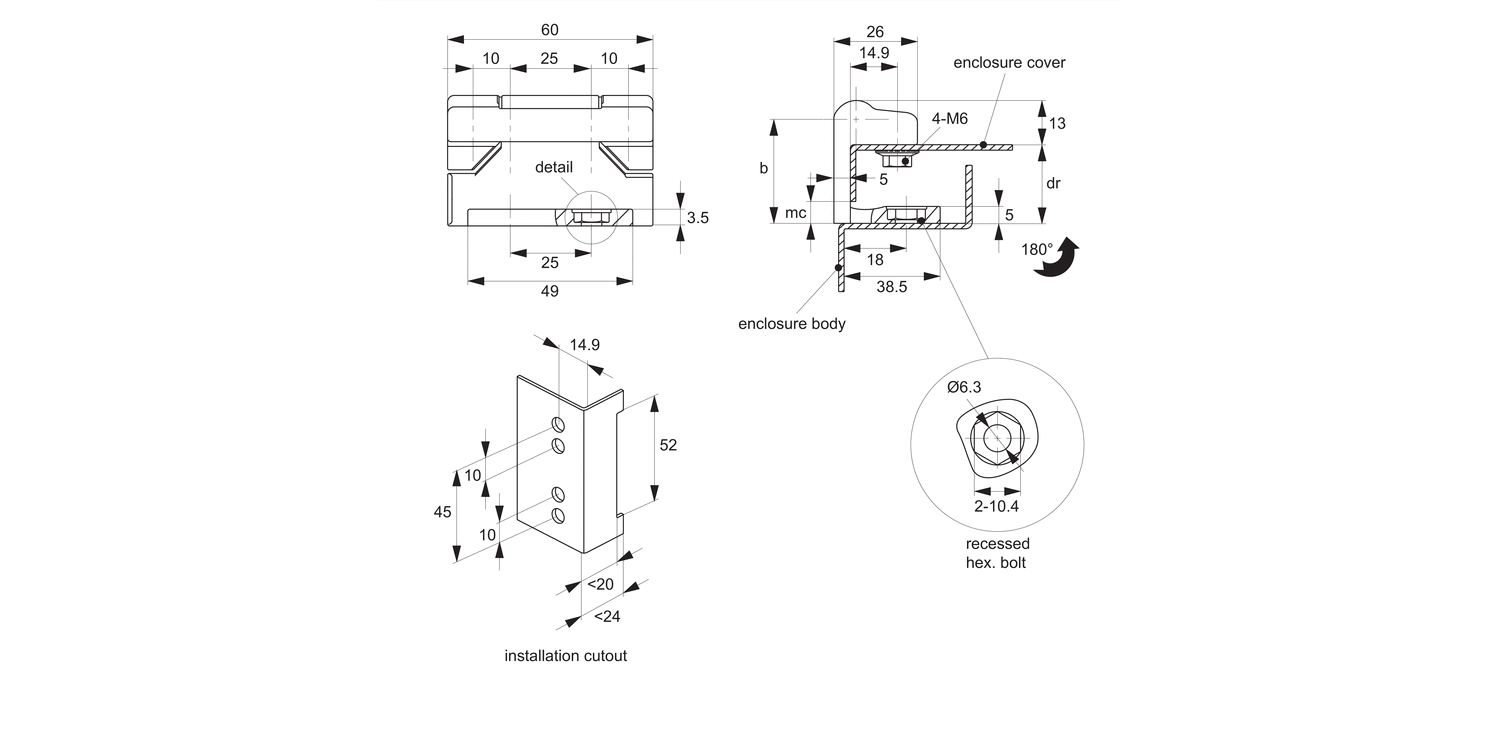

For sheet metal and machine enclosures with a 25,5mm door return, up to 2mm thick. For installation dimension see cut. Universal left or right hand opening doors. Max. opening angle 180°.
Tips
Mounting via M6 bolts with hex head of 10mm a/f (not supplied).
Important Notes
DR= Maximum door return suitable for use with hinge.
MC= Minimum clearance advised between enclosure cover and body to ensure smooth, full opening of enlclosure cover.
