S2015 Surface Mount - Flat Hinge

Name: S2015.AW0028
Brand: WC
SKU: S2015.AW0028
Price: 3.29 EUR
Availability: InStock

bolt-on - zinc, material: Zinc

Article properties

Order No.

S2015.AW0028

18.5

M 4

Ø5

14.5

F_x N

700

F_y N

800

27.5

See full product selection

£ 3.29 per unit (click for quantity discounts)

Ready to despatch 2
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 3.29	0%
20-49	£ 2.96	10%
50-99	£ 2.80	15%
100-499	£ 2.47	25%
500+	£ 2.14	35%

Download product datasheet

Technical & Application

Material

Hinge: die cast zinc, black powder coated.
Pin: steel, nickel-plated.

Technical Notes

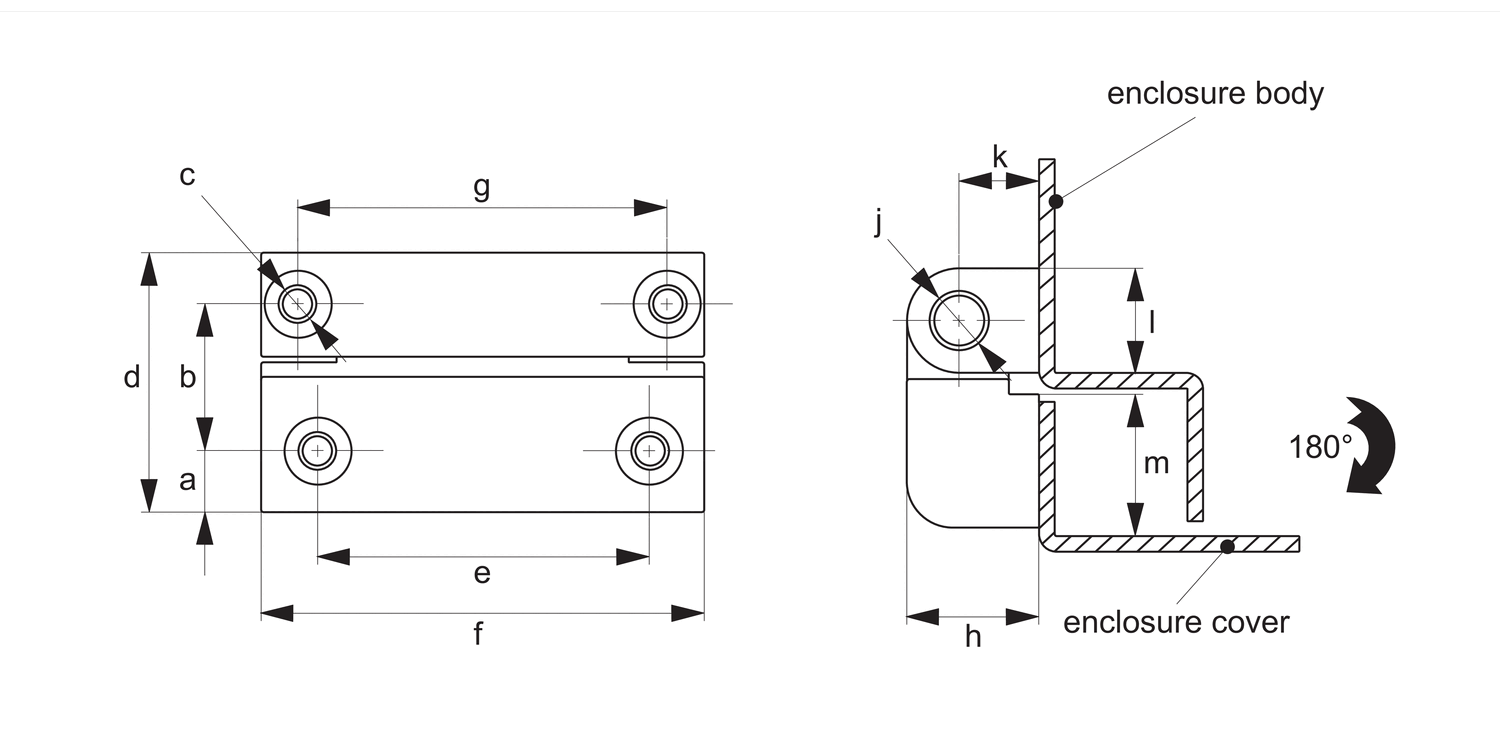

Opening angle 180°. Mounting via screws dimension c.

Product Datasheets

S2015 Surface Mount - Flat HingeJanuary 3, 2025, 3:33 PM / 162.15 kB

External HingesJanuary 3, 2025, 3:35 PM / 3.55 MB

HingesJanuary 3, 2025, 3:35 PM / 7.89 MB

Hinges & DampersJanuary 3, 2025, 3:35 PM / 10.41 MB

Access ComponentsJanuary 3, 2025, 3:35 PM / 32.63 MB
