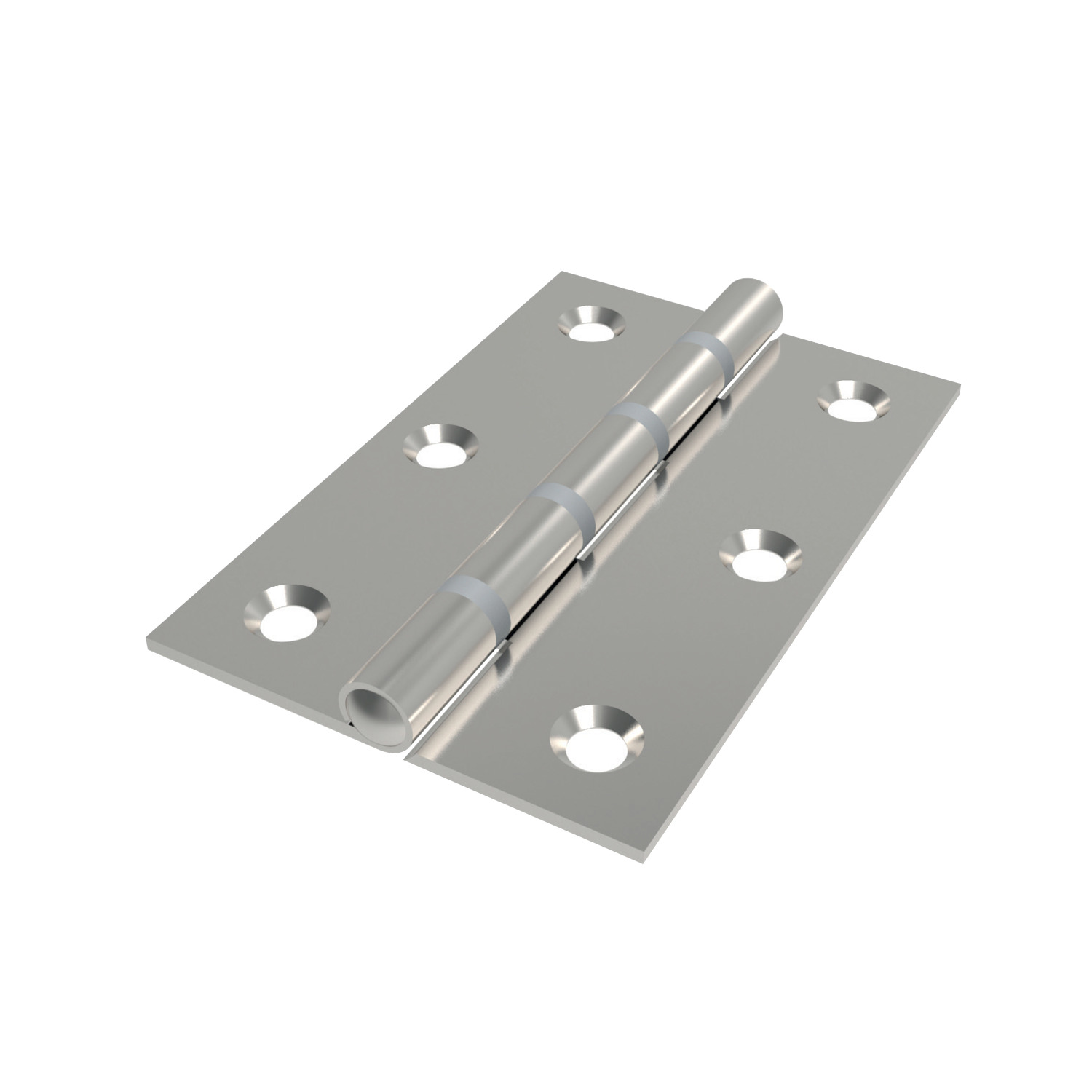

S0700 Surface Mount - Leaf hinges

Name: S0700.AC0010
Brand: WC
SKU: S0700.AC0010
Price: 16.13 EUR
Availability: OutOfStock

with polyacetal bushing - screw mount - stainless steel, material: Stainless steel

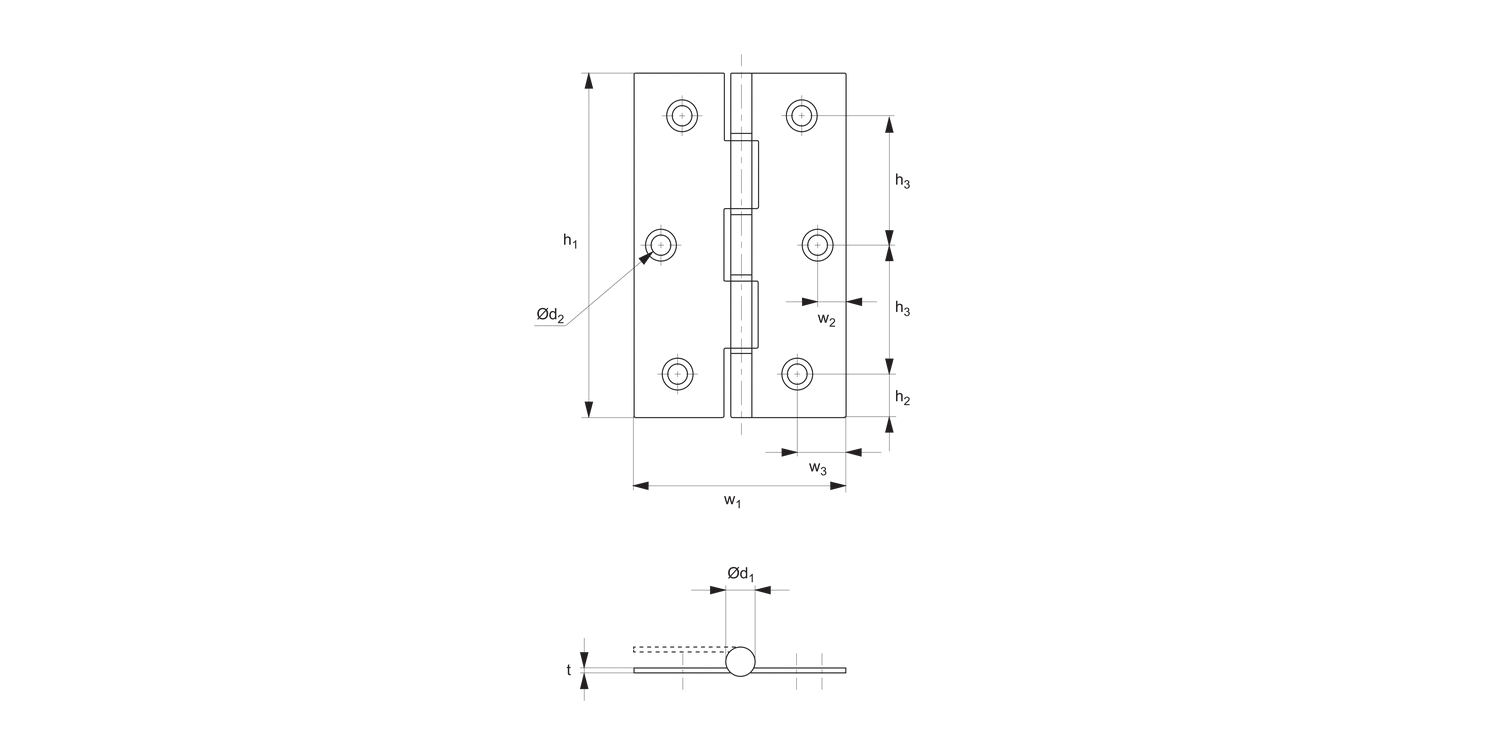

Article properties

Order No.

S0700.AC0010

h₁

102

h₂

9.0

h₃

1.8

w₁

70.0

w₂

9.0

w₃

14.0

d₁

9.5

d₂

6.0

No. of knuckles

No. of mounting holes

Weight g

132.5

See full product selection

£ 16.13 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 16.13	0%
20-49	£ 14.52	10%
50-99	£ 13.71	15%
100-499	£ 12.10	25%
500+	£ 10.48	35%

Download product datasheet

Technical & Application

Material

Body: stainless steel, AISI 304, polished finish.
Bushing: polyacetal.

Product Datasheets

S0700 Surface Mount - Leaf hingesJune 24, 2025, 3:37 PM / 1.59 MB

External HingesJune 24, 2025, 3:36 PM / 13.59 MB

HingesJune 24, 2025, 3:31 PM / 7.89 MB

Hinges & DampersJune 24, 2025, 3:32 PM / 10.40 MB

Access ComponentsJune 24, 2025, 3:32 PM / 32.33 MB
