S0460 Surface Mount - Leaf Hinges

Name: S0460.AC0007
Brand: WC
SKU: S0460.AC0007
Price: 43.62 EUR
Availability: InStock

screw mount - stainless steel, material: Stainless steel

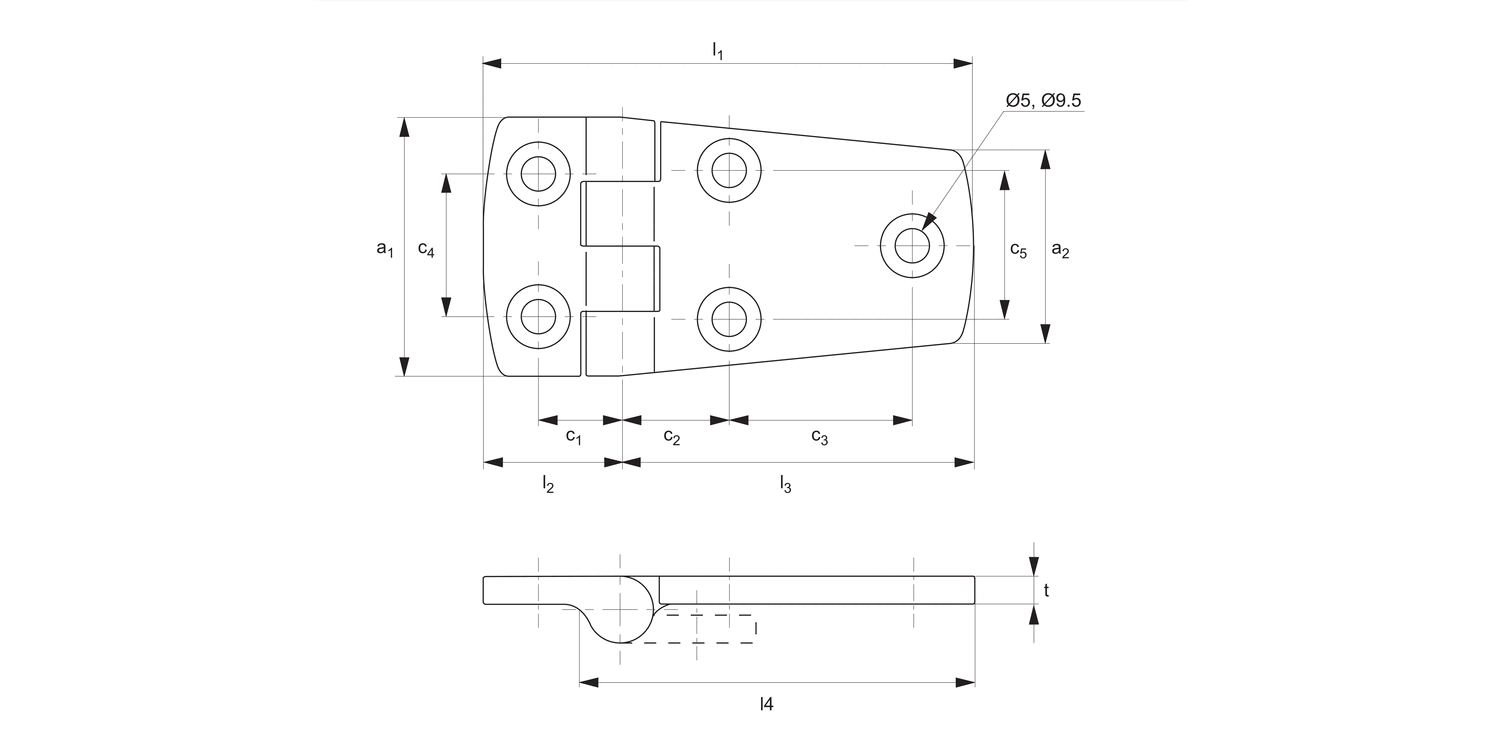

Article properties

Order No.

S0460.AC0007

a₁

a₂

c₁

c₂

16.0

c₃

27.0

c₄

c₅

l₁

l₂

l₃

l₄

Weight g

See full product selection

£ 43.62 per unit (click for quantity discounts)

Ready to despatch 39
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 43.62	0%
10-19	£ 39.26	10%
20-49	£ 37.08	15%
50-99	£ 34.90	20%
100+	£ 32.72	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Stainless steel, AISI 316, satin finish.

Technical Notes

Max. door size: 450w x 700h x 21mm thick. Max. door weight: 4,0Kg per hinge pair.

Product Datasheets

S0460 Surface Mount - Leaf HingesJanuary 3, 2025, 3:32 PM / 431.61 kB

External HingesJanuary 3, 2025, 3:35 PM / 3.55 MB

HingesJanuary 3, 2025, 3:35 PM / 7.89 MB

Hinges & DampersJanuary 3, 2025, 3:35 PM / 10.41 MB

Access ComponentsJanuary 3, 2025, 3:35 PM / 32.63 MB

CAD files

S0460 AcisApril 17, 2024, 10:22 AM / 56.36 kB

S0460 IGESApril 17, 2024, 10:22 AM / 200.38 kB

S0460 ParasolidApril 17, 2024, 10:22 AM / 50.33 kB

S0460 ProEApril 17, 2024, 10:22 AM / 141.34 kB

S0460 SolidWorksApril 17, 2024, 10:22 AM / 306.69 kB

S0460 StepApril 17, 2024, 10:22 AM / 75.62 kB
