S0464 Surface Mount - Leaf Hinges

Name: S0464.AW0040
Brand: WC
SKU: S0464.AW0040
Price: 6.24 EUR
Availability: OutOfStock

screw mount - stainless steel, material: Stainless steel

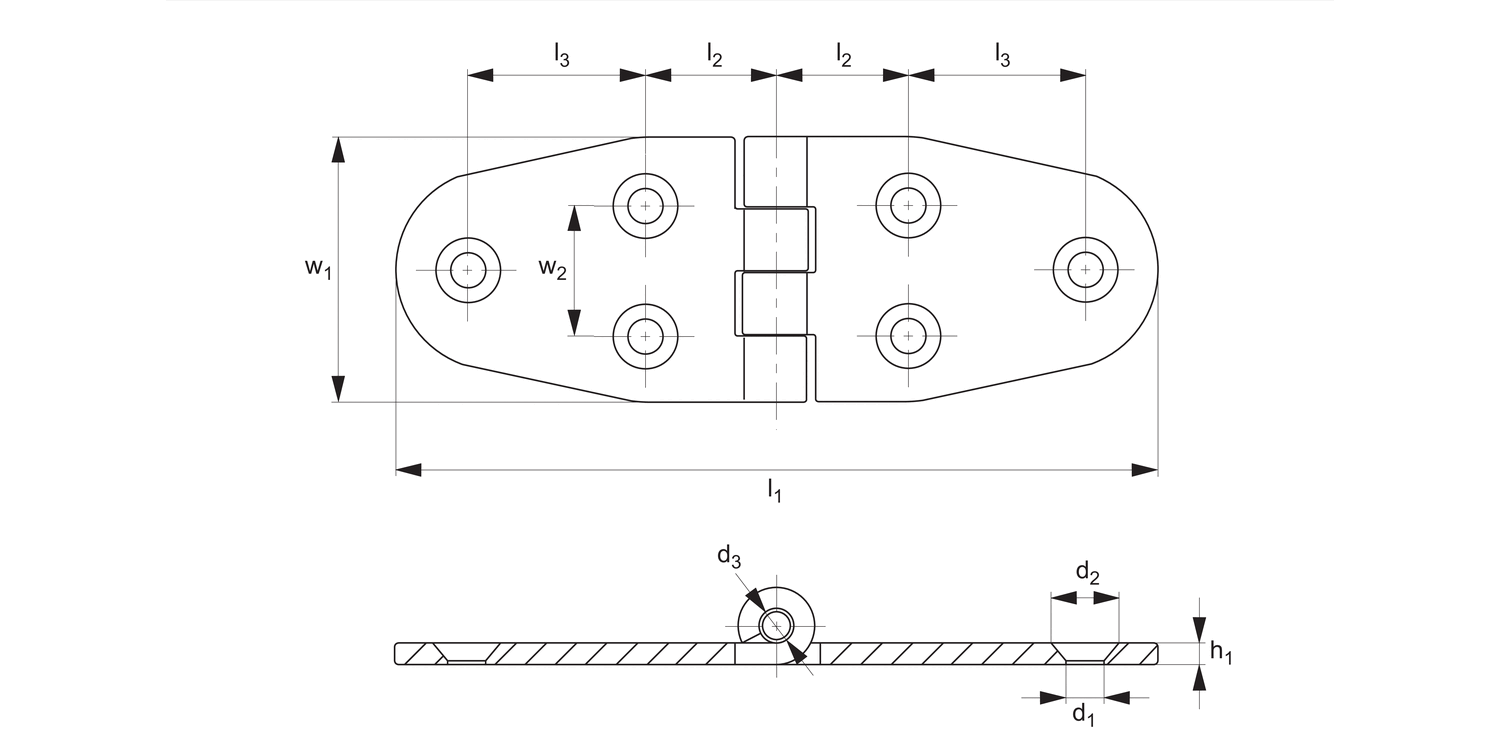

Article properties

Order No.

S0464.AW0040

h₁

2.5

l₁

119.5

l₂

l₃

w₁

w₂

F_x N

520

F_y N

600

d₁

5.6

d₂

d₃

See full product selection

£ 6.24 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 6.24	0%
20-49	£ 5.62	10%
50-99	£ 5.30	15%
100-499	£ 4.68	25%
500+	£ 4.06	35%

Download product datasheet

Technical & Application

Material

Hinge: stainless steel.

Technical Notes

Opening angle 180°.

Product Datasheets

S0464 Surface Mount - Leaf HingesJanuary 3, 2025, 3:32 PM / 425.72 kB

External HingesJanuary 3, 2025, 3:35 PM / 3.55 MB

HingesJanuary 3, 2025, 3:35 PM / 7.89 MB

Hinges & DampersJanuary 3, 2025, 3:35 PM / 10.41 MB

Access ComponentsJanuary 3, 2025, 3:35 PM / 32.63 MB
