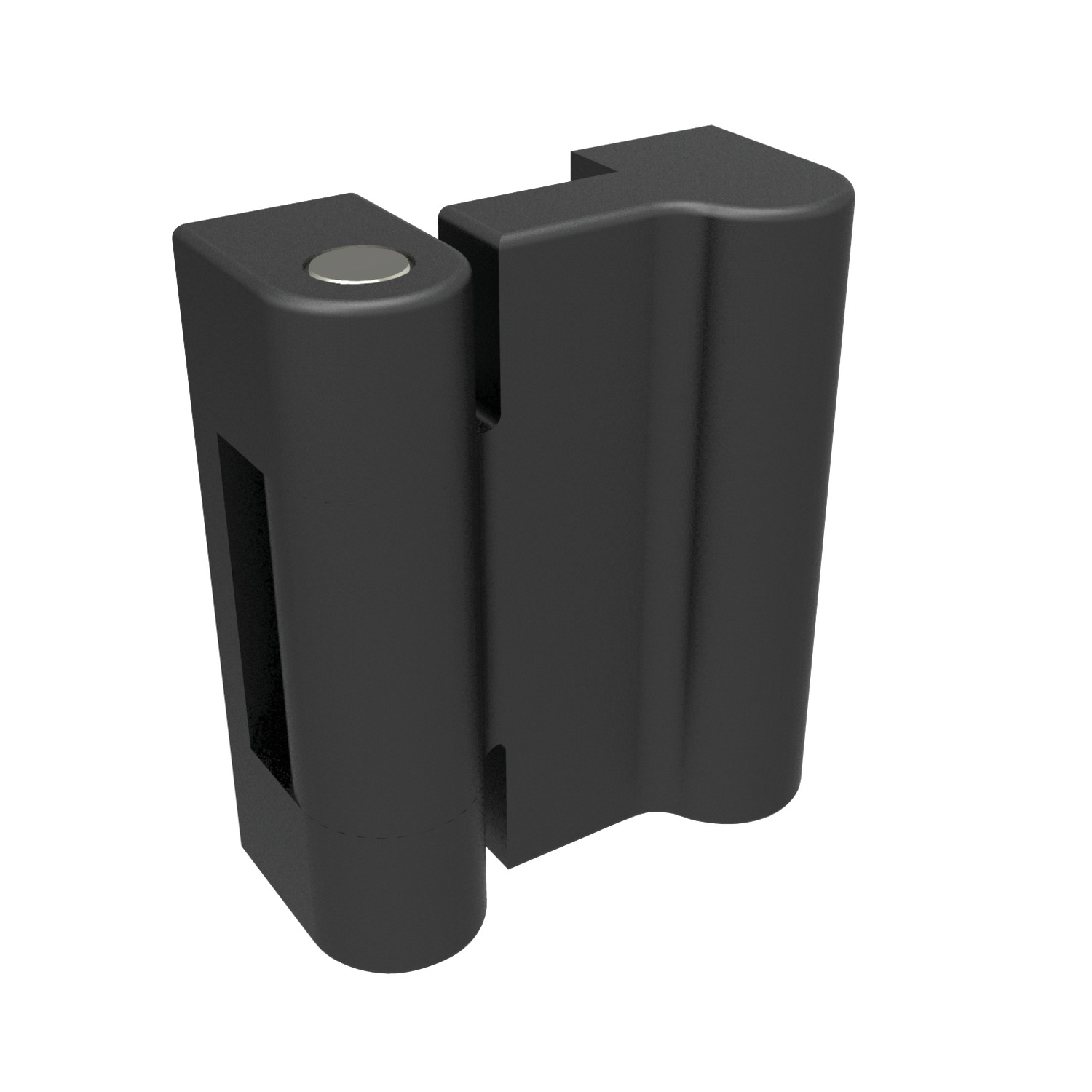

S2017 Surface Mount - Off-Set - Mount Hinge

Name: S2017.AW0030
Brand: WC
SKU: S2017.AW0030
Price: 3.2 GBP
Availability: InStock

bolt-on - zinc, material: Zinc

Article properties

Order No.

S2017.AW0030

Finish

Black Powder Coated

h₁

11.5

h₂

7.5

l₁

l₂

w₁

w₂

w₃

w₄

F_x N

1150

F_y N

700

d₁

M 4

d₂

g off set

3.5

See full product selection

£ 3.20 per unit (click for quantity discounts)

Ready to despatch 68
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 3.20	0%
20-49	£ 2.88	10%
50-99	£ 2.72	15%
100-499	£ 2.40	25%
500+	£ 2.08	35%

Download product datasheet

Technical & Application

Material

Body: die cast zinc, black powder coated.
Pin: steel, nickel plated.

Technical Notes

Opening angle 180°. Mounting via M4 screws.

Product Datasheets

S2017 Surface Mount - Off-Set - Mount Hinge24 June 2025, 15:37 / 511.41 kB

External Hinges24 June 2025, 15:36 / 13.59 MB

Hinges24 June 2025, 15:31 / 7.89 MB

Hinges & Dampers24 June 2025, 15:32 / 10.40 MB

Access Components24 June 2025, 15:32 / 32.33 MB

Application images
