S2030 Off-Set Mount Hinge

Name: S2030.AW0030
Brand: WC
SKU: S2030.AW0030
Price: 8.03 EUR
Availability: InStock

bolt-on - zinc, material: Zinc

Article properties

Order No.

S2030.AW0030

Finish

Black Coated

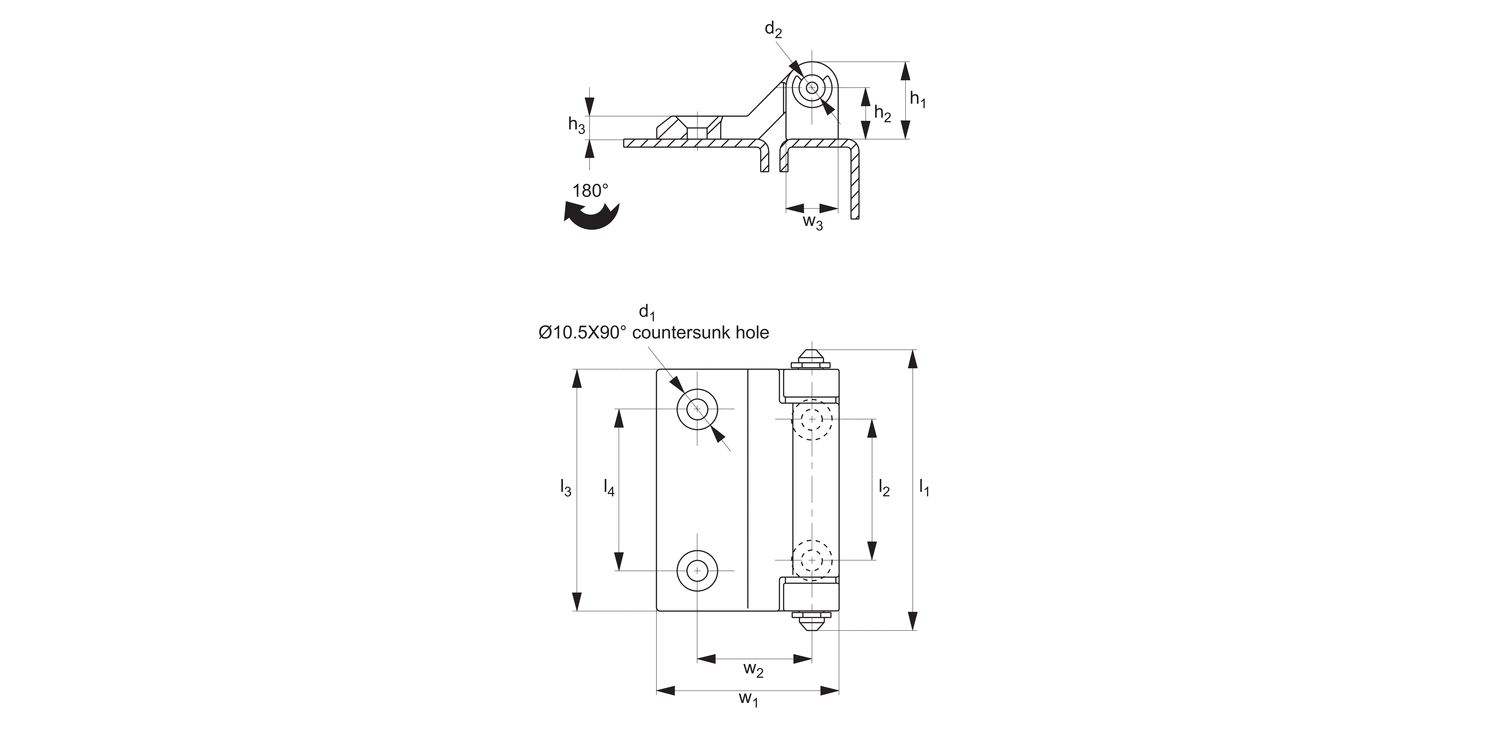

h₁

h₂

h₃

l₁

l₂

l₃

l₄

w₁

w₂

28.7

w₃

F_x N

F_y N

d₁

5.5

d₂

6.5

See full product selection

£ 8.03 per unit (click for quantity discounts)

Ready to despatch 117
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 8.03	0%
20-49	£ 7.23	10%
50-99	£ 6.83	15%
100-499	£ 6.02	25%
500+	£ 5.22	35%

Download product datasheet

Technical & Application

Material

Body: die cast zinc, black powder coated.
Pin: steel, nickel plated.

Technical Notes

Opening angle 180°. Mount via M5 screw (not supplied).
